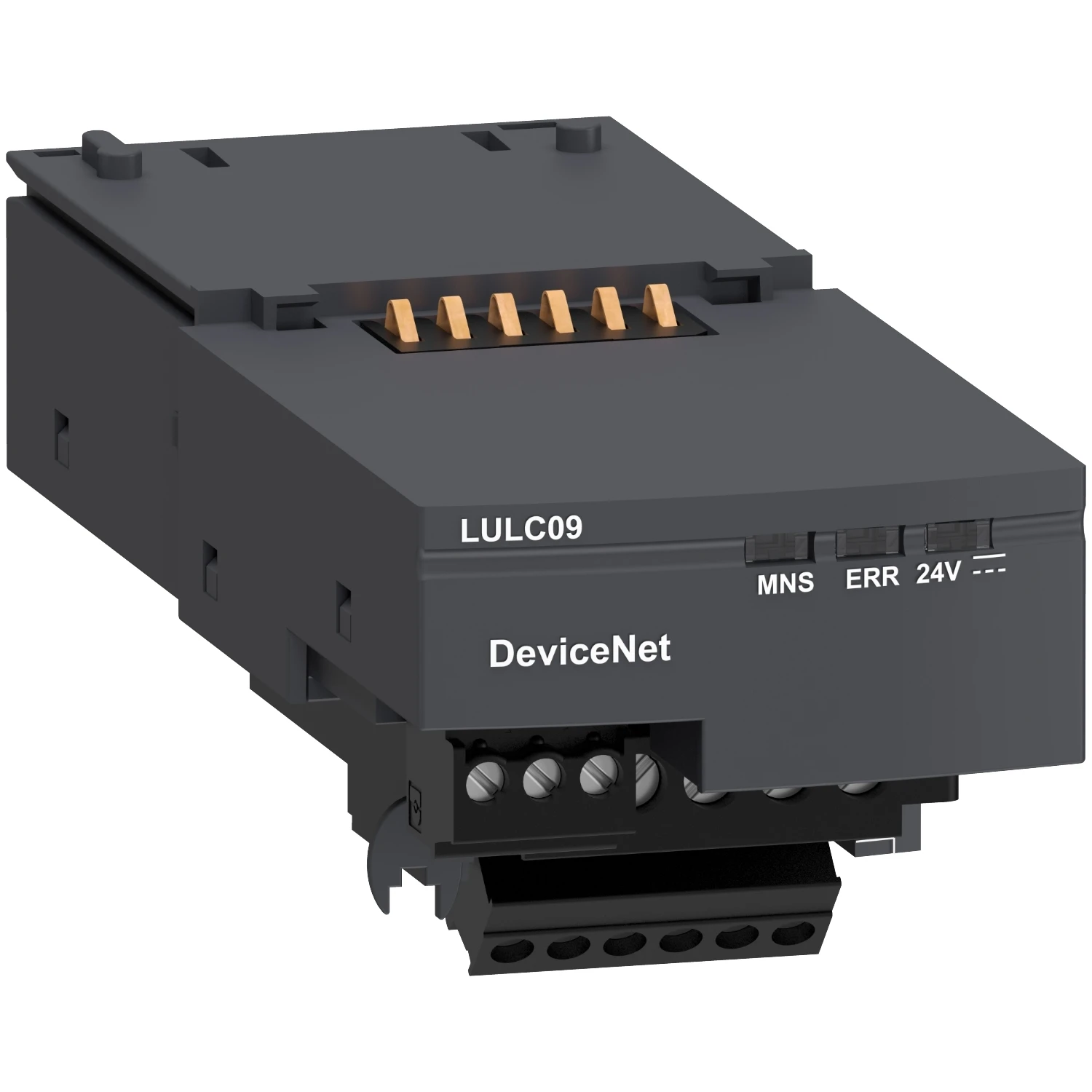

Devicenet Communication Module for TeSys U, 24 V DC
Devicenet Communication Module for TeSys U, 24 V DC
Devicenet Communication Module for TeSys U, 24 V DC - Image 2
Devicenet Communication Module for TeSys U, 24 V DC - Image 3

Devicenet Communication Module for TeSys U, 24 V DC

£301.03 Incl. VAT

TeSys U communication module for DeviceNet (slave type), to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. It provides a 5-point plug-in connector for connection to a DeviceNet network, a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (MNS, ERR). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). · · · TeSys U communication module for DeviceNet (slave type), to be inserted in advanced power bases LUB120, LUB320, LUB380 equipped with a BL type (24V DC) LUC control unit. · · It provides a 5-point plug-in connector for connection to a DeviceNet network, · · a plug-in terminal block for the connection to an external power supply 24V DC, in addition with 2 x configurable logic inputs 24V DC and 1 x logic output 24V DC. · · On the bottom, a 3-point plug-in terminal block is provided for the local control of the starter controller, to be associated with a control terminal block LU9BN11L for a LUB base or LU9MRL for a LU2B base. · · It displays 3 LEDs indicating 24V voltage presence (24V=) and communication status (MNS, ERR).

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: LULC09 Categories: , , Brand: Part Number: 2500381385

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – communication module Width 45 mm Supply voltage DC 24 – 24 V Depth 110 mm Height 45 mm Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Supporting protocol for LON No Suitable for safety functions No Supporting protocol for TCP/IP No Supporting protocol for PROFIBUS No Appendant operation agent (Ex ib) No Appendant operation agent (Ex ia) No Supporting protocol for SERCOS No Supporting protocol for KNX No Supporting protocol for SUCONET No Supporting protocol for other bus systems No System accessory Yes Rail mounting possible No With potential separation Yes Supporting protocol for DeviceNet Yes Radio standard UMTS No Rack-assembly possible No Supporting protocol for Data-Highway No Wall mounting/direct mounting No Supporting protocol for ASI No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for MODBUS No Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Radio standard Bluetooth No Radio standard WLAN 802.11 No Radio standard GPRS No Front built-in possible Yes Radio standard GSM No IO link master No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for Foundation Fieldbus No Supporting protocol for EtherNet/IP No Supporting protocol for PROFINET IO No Supporting protocol for PROFINET CBA No Fieldbus connection over separate bus coupler possible No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188179 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188198
