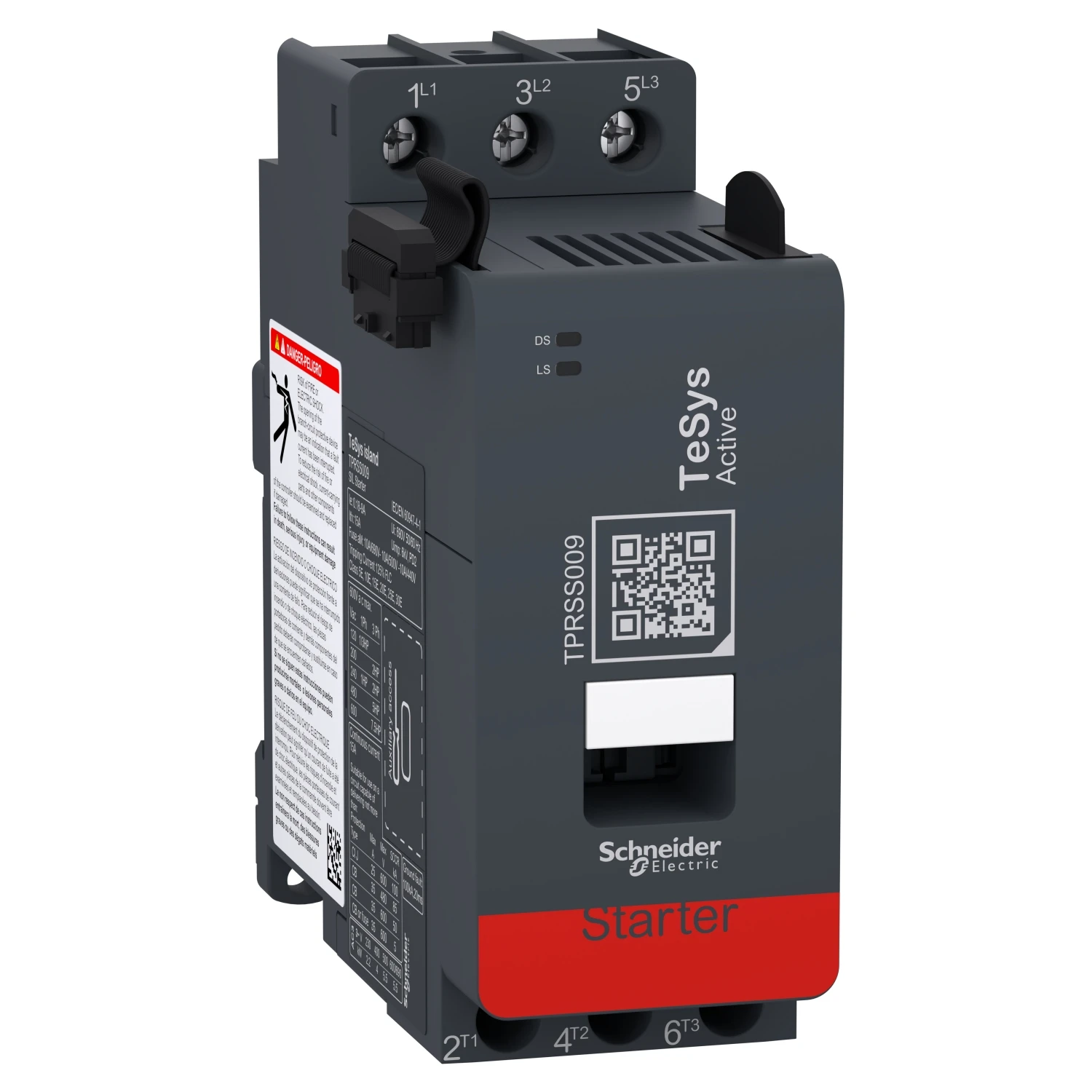

Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp
Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp
Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Image 2
Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Image 3
Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp - Image 4

Schneider Electric Direct online SIL starter, TeSys island, 15A AC-1, 9A AC-3, 4kW / 5hp

£70.38 Incl. VAT

TeSys island direct SIL starter, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys island direct SIL starter, 3 poles, 9A/690V. · · Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. · · In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. · · It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. · · Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module.

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRSS009 Categories: , , , , , Brand: Product Code: 2501393222

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – power module, motor switch Width 45.00 mm Depth 115.00 mm Number of motor outlets 1.00 Height 116.00 mm Number of HW-interfaces other 2.00 Number of HW-interfaces USB 0.00 Number of HW-interfaces PROFINET 0.00 Number of HW-interfaces Wireless 0.00 Number of HW-interfaces RS-422 0.00 Number of HW-interfaces parallel 0.00 Number of HW-interfaces serial TTY 0.00 Number of HW-interfaces RS-485 0.00 Number of HW-interfaces industrial Ethernet 0.00 Number of HW-interfaces RS-232 0.00 Number of inputs 1.00 Supply voltage AC 50 Hz – – – V Supply voltage AC 60 Hz – – – V Supply voltage DC 20.40 – 28.80 V Permitted voltage at output 0.00 – 690.00 V Permitted voltage at input 0.00 – 690.00 V Rated operation current of the motor 0.18 – 9.00 A Fieldbus connection over separate bus coupler possible Yes Supporting protocol for CAN No Supporting protocol for ASI No Supporting protocol for PROFIBUS No Supporting protocol for KNX No Supporting protocol for INTERBUS No With optical interface No Supporting protocol for TCP/IP No Short-circuit protection, outputs available No Supporting protocol for LON No Suitable for safety functions Yes Supporting protocol for MODBUS No Supporting protocol for Data-Highway No Supporting protocol for DeviceNet No Supporting protocol for SUCONET No Supporting protocol for other bus systems Yes IO link master No Radio standard WLAN 802.11 No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET CBA No Supporting protocol for PROFINET IO No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Radio standard GPRS No Radio standard GSM No Supporting protocol for SERCOS No Supporting protocol for INTERBUS-Safety No Radio standard UMTS No Radio standard Bluetooth No Rail mounting possible Yes Appendant operation agent (Ex ia) No System accessory Yes With thermal motor protection Yes With brake output No With motor current parameter setting No Appendant operation agent (Ex ib) No Front built-in possible No Wall mounting/direct mounting No Rack-assembly possible No · Technical Data Sheet – Click to Download
