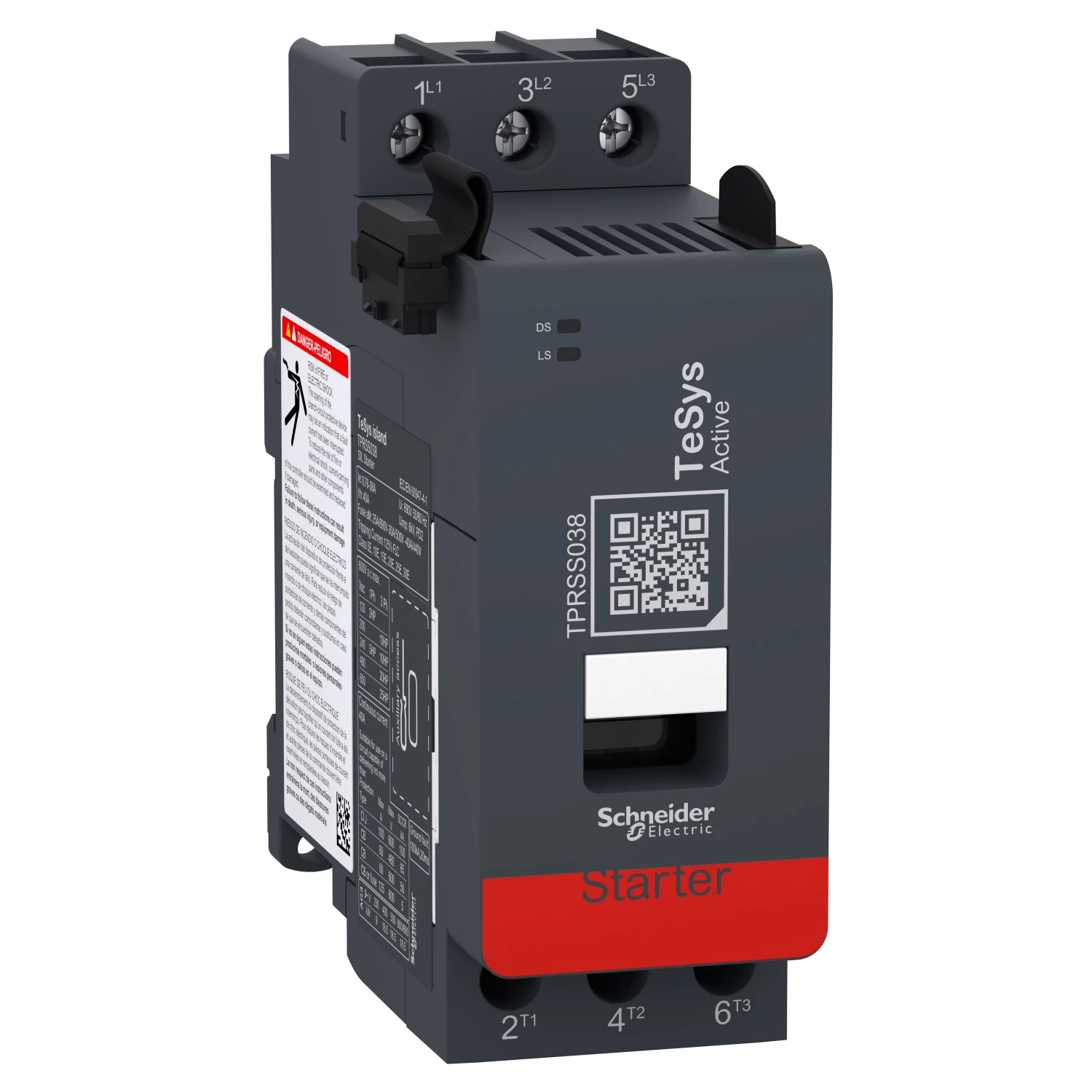

Direct online SIL starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp
Direct online SIL starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp
Direct online SIL starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp - Image 2
Direct online SIL starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp - Image 3
Direct online SIL starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp - Image 4

Direct online SIL starter, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp

£172.50 Incl. VAT

TeSys island direct SIL starter, 3 poles, 38A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys island direct SIL starter, 3 poles, 38A/690V. · · Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 38A and motors up to 18,5kW@400V / 20hp@480V. · · In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. · · It provides motor protection functions including thermal overload (setting 0.76-38A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. · · Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRSS038 Categories: , , Brand: Part Number: 2501393224

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – power module, motor switch Depth 115 mm Width 45 mm Height 121 mm Number of HW-interfaces USB 0 Number of HW-interfaces Wireless 0 Number of motor outlets 1 Number of HW-interfaces parallel 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces RS-232 0 Number of HW-interfaces industrial Ethernet 0 Number of HW-interfaces other 2 Number of HW-interfaces serial TTY 0 Number of HW-interfaces RS-485 0 Number of HW-interfaces PROFINET 0 Supply voltage AC 60 Hz – – – V Supporting protocol for LON No Permitted voltage at input 0 – 690 V Permitted voltage at output 0 – 690 V Supply voltage DC 20.4 – 28.8 V Supply voltage AC 50 Hz – – – V Rated operation current of the motor 0.76 – 38 A Number of inputs 1 Short-circuit protection, outputs available No Supporting protocol for ASI No Supporting protocol for TCP/IP No Supporting protocol for CAN No Supporting protocol for INTERBUS No Supporting protocol for PROFIBUS No Supporting protocol for MODBUS No Supporting protocol for KNX No With optical interface No Fieldbus connection over separate bus coupler possible Yes Front built-in possible No Rack-assembly possible No Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Suitable for safety functions Yes Wall mounting/direct mounting No Supporting protocol for SafetyBUS p No Radio standard GPRS No Radio standard GSM No Radio standard UMTS No Rail mounting possible Yes Appendant operation agent (Ex ia) No Appendant operation agent (Ex ib) No Supporting protocol for INTERBUS-Safety No Radio standard WLAN 802.11 No IO link master No Supporting protocol for DeviceNet Safety No Supporting protocol for AS-Interface Safety at Work No Radio standard Bluetooth No Supporting protocol for SERCOS No Supporting protocol for other bus systems Yes Supporting protocol for PROFINET IO No Supporting protocol for PROFINET CBA No Supporting protocol for PROFIsafe No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No System accessory Yes With brake output No With motor current parameter setting No With thermal motor protection Yes · Technical Data Sheet – Click to Download
