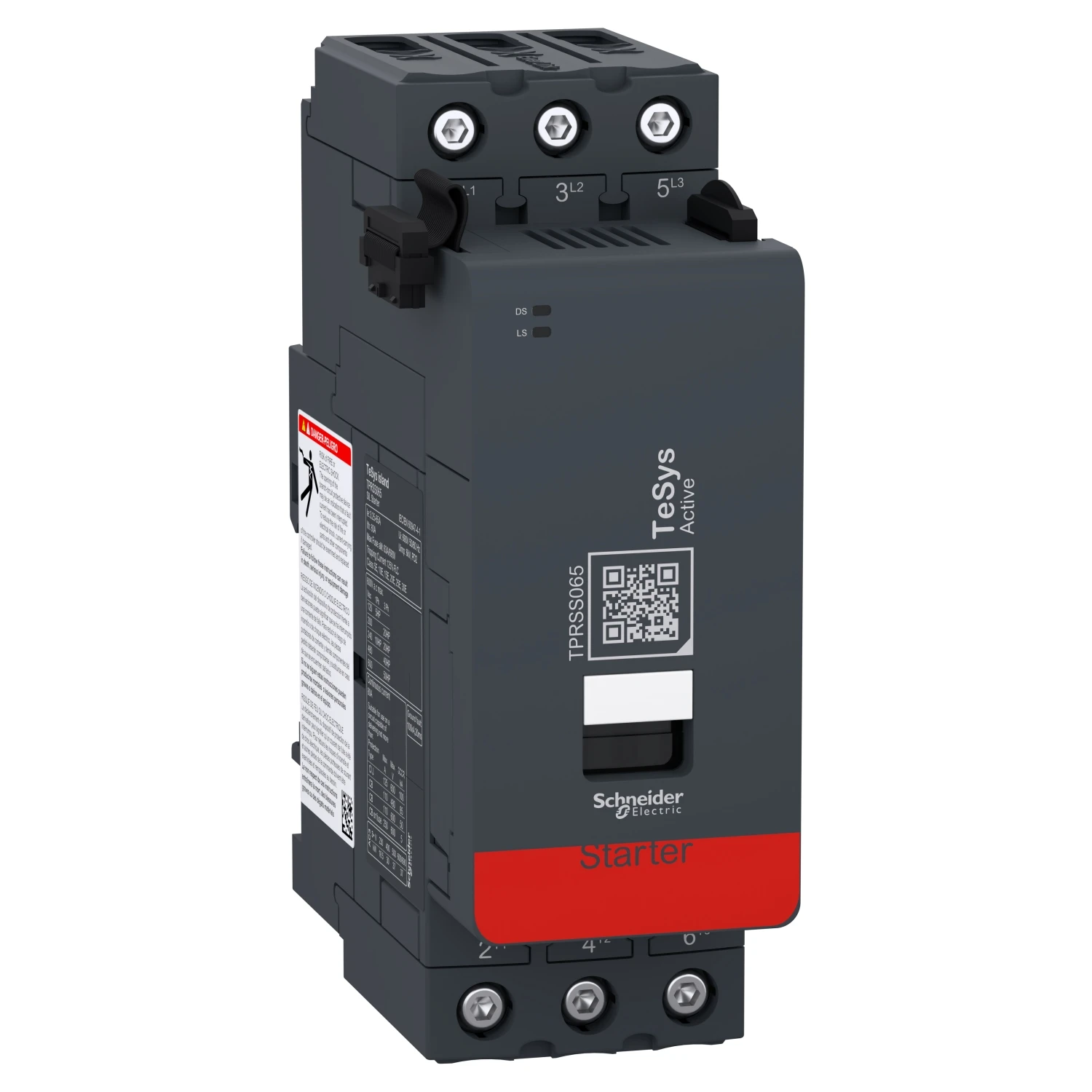

Direct Online SIL Starter TeSys Island 80A AC-1, 65A AC-3 30kW / 40hp
Direct Online SIL Starter TeSys Island 80A AC-1, 65A AC-3 30kW / 40hp
Direct Online SIL Starter TeSys Island 80A AC-1, 65A AC-3 30kW / 40hp - Image 2
Direct Online SIL Starter TeSys Island 80A AC-1, 65A AC-3 30kW / 40hp - Image 3
Direct Online SIL Starter TeSys Island 80A AC-1, 65A AC-3 30kW / 40hp - Image 4

Direct Online SIL Starter TeSys Island 80A AC-1, 65A AC-3 30kW / 40hp

£288.42 Incl. VAT

TeSys island direct SIL starter, 3 poles, 65A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V. In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh). · · · TeSys island direct SIL starter, 3 poles, 65A/690V. · · Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 65A and motors up to 30kW@400V / 40hp@480V. · · In association with a TPRSM001 module and an external safety device, it can be used for safety related systems conforming to IEC 61508. · · It provides motor protection functions including thermal overload (setting 3.35-65A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. · · Monitoring of the load includes max/average voltages and currents, number of switching cycles, number of faults, active and reactive power/energy when associated to a TPRVM001 voltage module.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: TPRSS065 Categories: , , Brand: Part Number: 2501393225

Description

Technical Specifications  Technical Specifications Fieldbus, decentr. periphery – power module, motor switch Height 167 mm Width 55 mm Number of HW-interfaces USB 0 Number of motor outlets 1 Number of HW-interfaces other 2 Number of HW-interfaces Wireless 0 Number of HW-interfaces parallel 0 Number of HW-interfaces serial TTY 0 Number of HW-interfaces PROFINET 0 Number of HW-interfaces RS-485 0 Number of HW-interfaces RS-232 0 Number of HW-interfaces RS-422 0 Supply voltage AC 60 Hz – – – V Permitted voltage at output 0 – 690 V Supply voltage DC 20.4 – 28.8 V Supply voltage AC 50 Hz – – – V Rated operation current of the motor 3.35 – 65 A Depth 125 mm Number of inputs 1 Number of HW-interfaces industrial Ethernet 0 Permitted voltage at input 0 – 690 V Supporting protocol for MODBUS No Supporting protocol for INTERBUS No With optical interface No Supporting protocol for CAN No Supporting protocol for ASI No Supporting protocol for KNX No Supporting protocol for TCP/IP No Wall mounting/direct mounting No Rack-assembly possible No Fieldbus connection over separate bus coupler possible Yes Suitable for safety functions Yes Supporting protocol for PROFIBUS No Short-circuit protection, outputs available No Supporting protocol for LON No Front built-in possible No Appendant operation agent (Ex ib) No Appendant operation agent (Ex ia) No Supporting protocol for PROFINET IO No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Radio standard GPRS No Radio standard GSM No Supporting protocol for SUCONET No Supporting protocol for INTERBUS-Safety No Supporting protocol for SERCOS No Supporting protocol for other bus systems Yes Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Rail mounting possible Yes Radio standard UMTS No Radio standard Bluetooth No Radio standard WLAN 802.11 No IO link master No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for EtherNet/IP No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET CBA No Supporting protocol for DeviceNet Safety No System accessory Yes With brake output No With motor current parameter setting No With thermal motor protection Yes · Technical Data Sheet – Click to Download
