Distribution Boards Single Phase

Eaton Distribution Board 13Way Single Pole+Neutral 125A

Brand: EatonProduct code: EAM13Go Magpie Ref: 5060062333647

MEM A distribution board; 13-way SPN · · · Interlinking form for improved positional security · · Removable main busbar for flexible installation · · Unique full form blanking modules for unused MCB ways. Provides secure shrouding of unused busbar st · · Main busbar is removable for flexible installation. · · Fully shrouded Neutral busbar for increased safety · · Choice of metering option to suit application needs and aid compliance with latest Building Regulati · · Door opens 180 to provide easy access and device operation · · Standard incomer Switch Disconnector rating of 125A provides higher rated solution for commercial bu · · 125A · · 13 Ways

£138.12inc VAT£115.10 ex VAT
Only 0 available
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

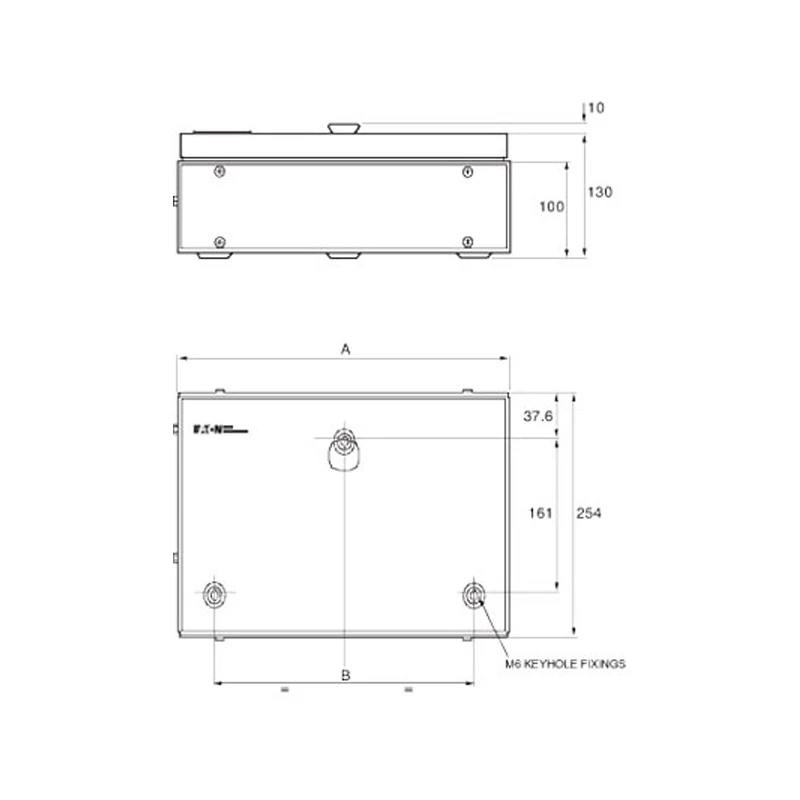

Technical Specifications  Technical Specifications Small distribution board Colour Grey Housing material Steel Type of covering Door Degree of protection (IP rating) IP3X Cover model Closed Mounting method Surface mounted Internal depth 95 mm Number of rows 1 Width 440 mm Recess width 440 mm Recess height 254 mm Recess depth 130 mm Width in number of modular spacings 15 Height 254 mm Depth 130 mm RAL number 7004 With mounting plate No EMC-version Yes Earthing terminal block Yes Neutral terminal block Yes Signal passing door No With lock No Transparent cover/door No Extension possible Yes With DIN-rail Yes · Technical Data Sheet – Click to Download
