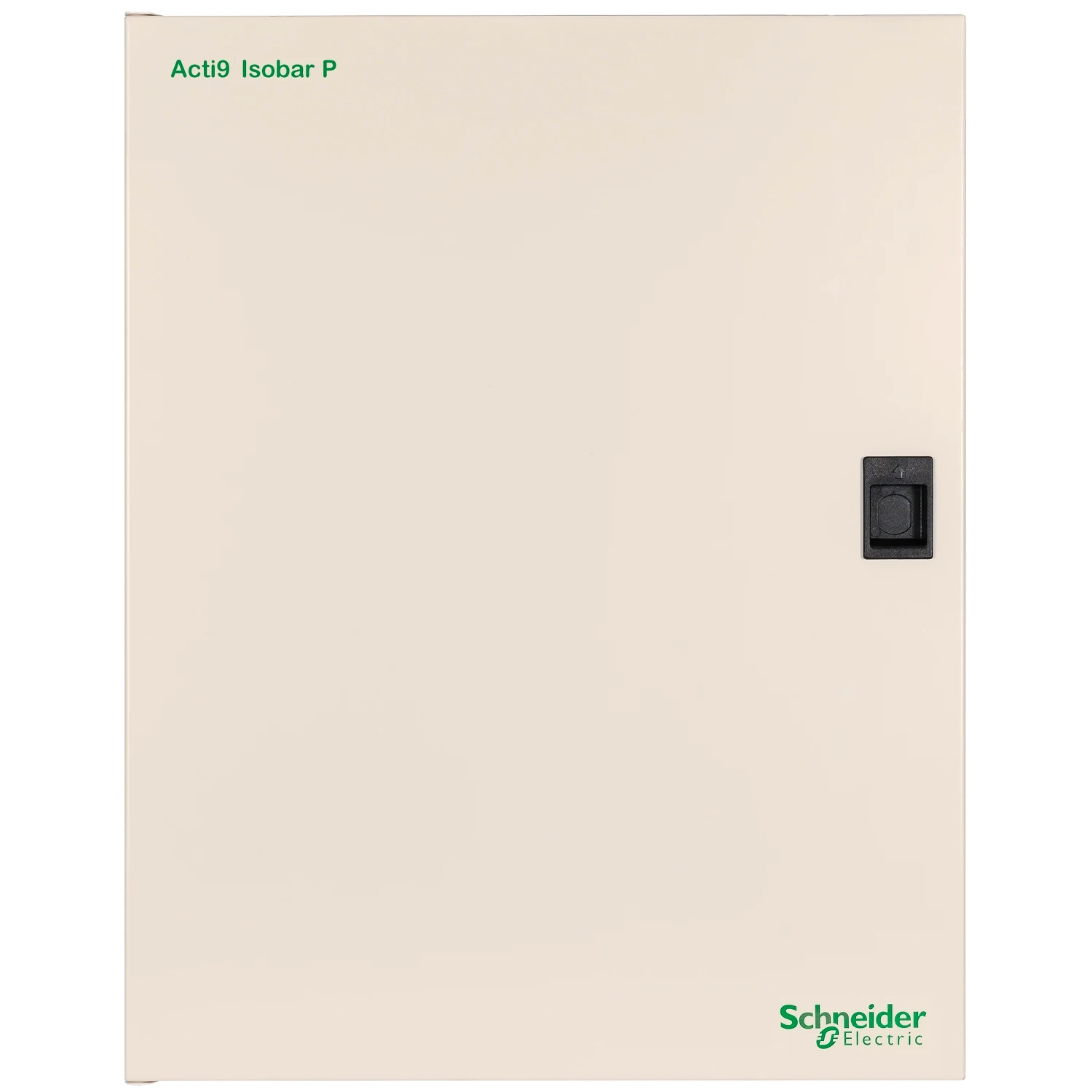

Distribution Board 14+14Way Type A Split Metered 100A 530 x 417 x 117mm
£1,942.75 Incl. VAT
The Acti9 Isobar P A Type Distribution Boards are suitable for standard, commercial and Industrial applications. For applications of final circuit single phase distribution, typical loads serviced; Lighting, Power, IT, HVAC, Critical Power. Generally supplied by a panel board or three phase distribution board, systems are designed to ensure supply continuity selectivity and enhanced performance.- It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 538mm x (D) 139mm. According to BS/EN 60529 standard, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL 9001). This distribution board is compliant with BS/EN 61439-3 standard. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product
Out of stock
Description
Technical Specifications Technical Specifications Small distribution board Width 470 mm Depth 139 mm RAL number 9001 Number of rows 2 Transparent cover/door No Height 538 mm Width in number of modular spacings 14 With mounting plate No With lock Yes EMC-version No Extension possible Yes With DIN-rail Yes · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224037
