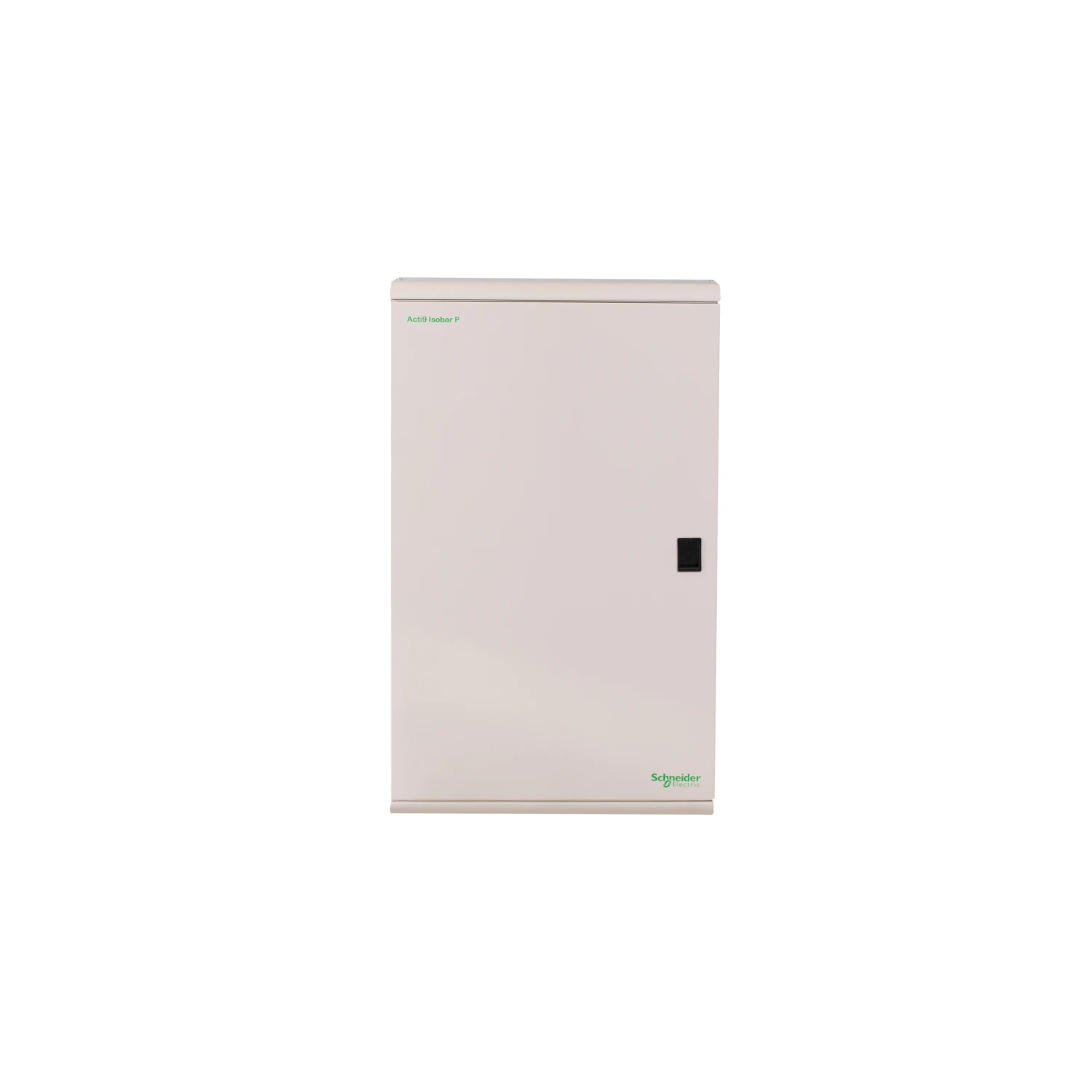

Distribution Board 16Way Triple Pole 250A 808 x 470 x 139mm
£967.97 Incl. VAT
The Schneider Electric Meter Ready Acti9 Isobar P B Type Distribution Board SEA9BPN16M is with an incoming rating 125A, has 16 triple pole ways and a TP&N switch disconnector included. The Acti9 Isobar P Meter Ready Distribution Boards are suitable for standard, commercial. and Industrial applications and enabled for an incoming meter connection. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product
3 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board Width 470 mm Height 808 mm Depth 139 mm Number of rows 2 RAL number 9001 Width in number of modular spacings 16 Extension possible Yes Transparent cover/door No With mounting plate No With DIN-rail Yes With lock Yes EMC-version No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224038
