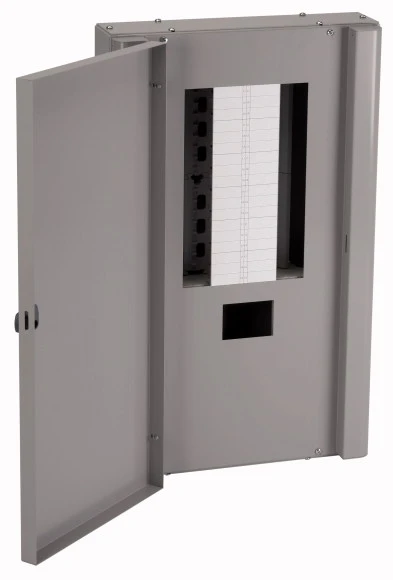

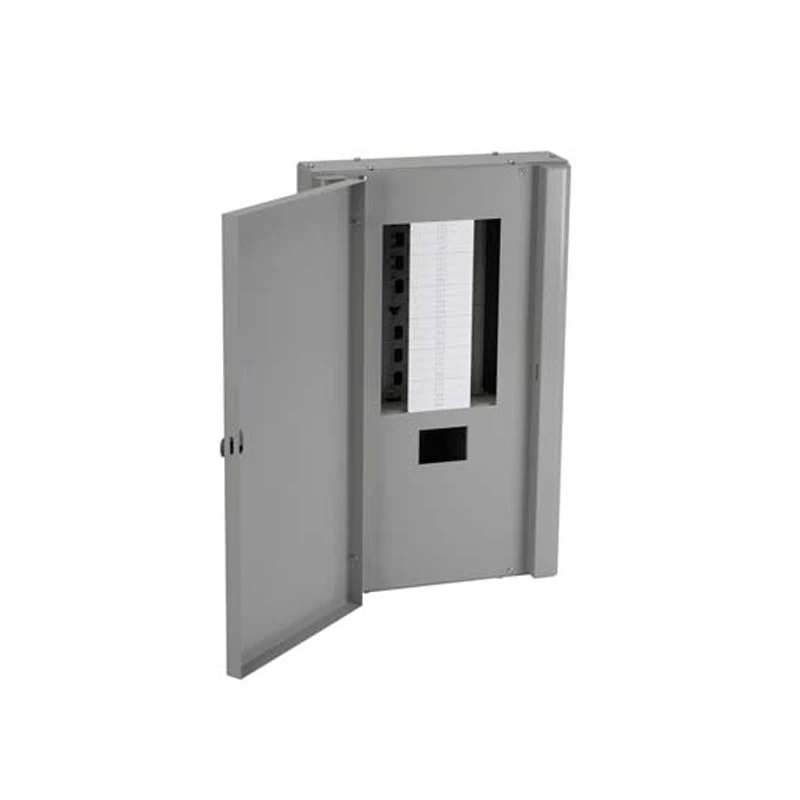

Distribution Board 18Way Triple Pole+Neutral 125A Or 250A
Distribution Board 18Way Triple Pole+Neutral 125A Or 250A
Distribution Board 18Way Triple Pole+Neutral 125A Or 250A - Image 2
Distribution Board 18Way Triple Pole+Neutral 125A Or 250A - Image 3
Distribution Board 18Way Triple Pole+Neutral 125A Or 250A - Image 4

Distribution Board 18Way Triple Pole+Neutral 125A Or 250A

£479.15 Incl. VAT

MEM B distribution board; 18-way TPN · · · Additional functional earthing options · · Clean earth options available · · Removable busbar assembly to assist installation · · Interlinking form for improved positional security · · Improved neutral cable clamp design for simple and secure cable connectio · · Removable front door to aid accessibility to devices · · Covers fit within enclosure dimensions allowing adjacent mounting · · Modern, curved edges enhance appearance of board · · Secondary cover, slides over two location screws at bottom of board for easier fastening

4 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EBM182 Categories: , , Brand: Part Number: 2500329562

Description

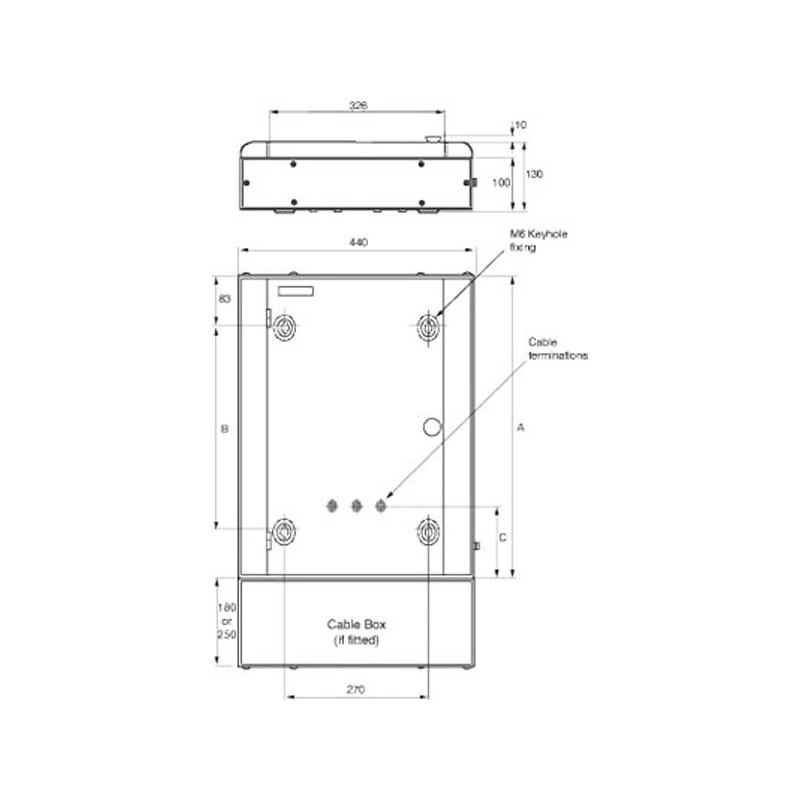

Technical Specifications  Technical Specifications Small distribution board Colour Grey Type of covering Door Housing material Steel Mounting method Surface mounted Cover model Closed Width 440 mm RAL number 7004 Height 1021 mm Depth 130 mm Internal depth 100 mm Neutral terminal block No Earthing terminal block No Recess width 440 mm Recess height 1021 mm Recess depth 130 mm Width in number of modular spacings 54 Number of rows 2 With DIN-rail No With lock No With mounting plate No Extension possible No EMC-version No Signal passing door No Transparent cover/door No UV resistant No · Technical Data Sheet – Click to Download
