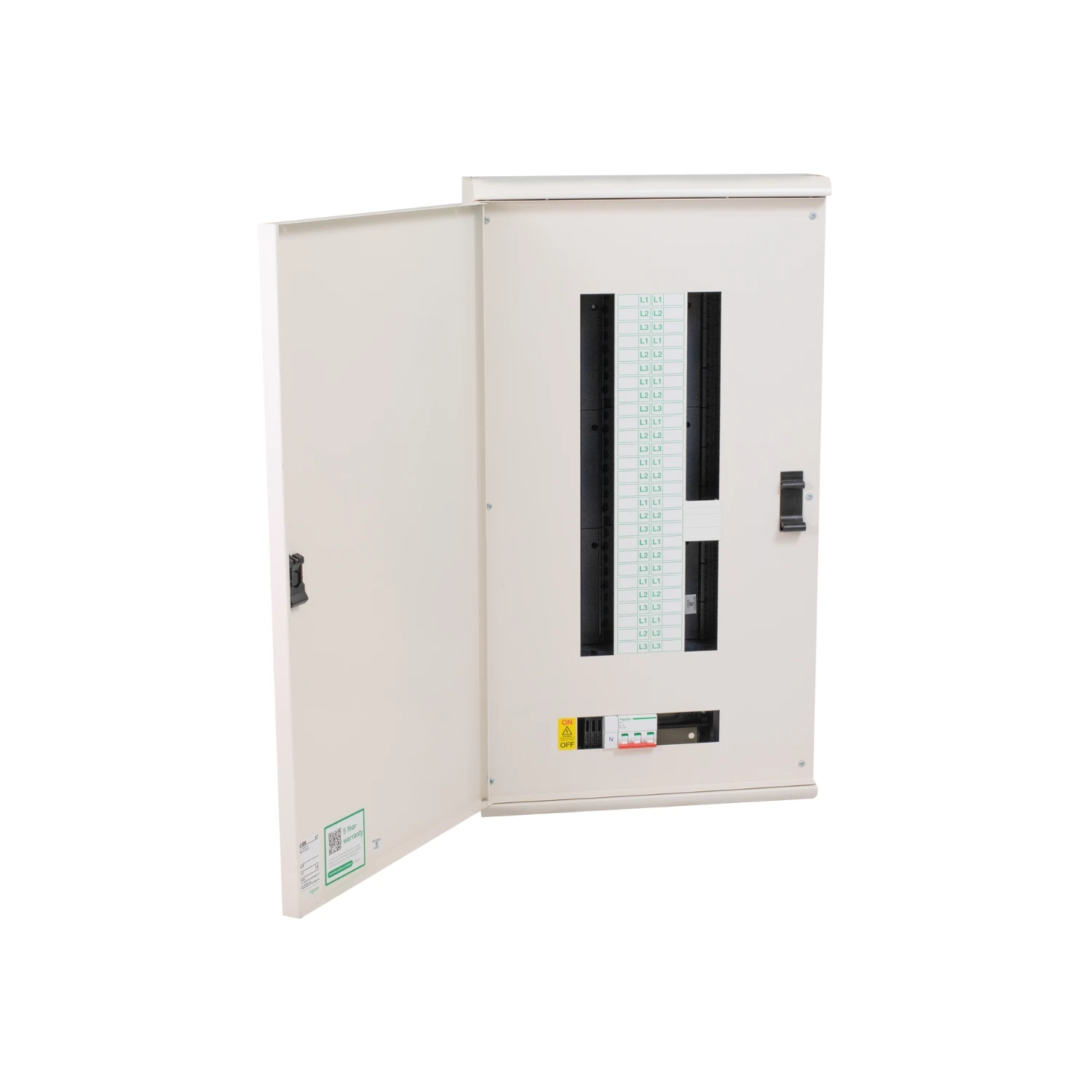

Schneider Electric Distribution Board 18Way Triple Pole+Neutral 250A 862 x 470 x 139mm
Schneider Electric Distribution Board 18Way Triple Pole+Neutral 250A 862 x 470 x 139mm
Schneider Electric Distribution Board 18Way Triple Pole+Neutral 250A 862 x 470 x 139mm - Image 2
Schneider Electric Distribution Board 18Way Triple Pole+Neutral 250A 862 x 470 x 139mm - Image 3

Schneider Electric Distribution Board 18Way Triple Pole+Neutral 250A 862 x 470 x 139mm

£942.12 Incl. VAT

The Schneider Electric Meter Ready Acti9 Isobar P B Type Distribution Board SEA9BPN18M is with an incoming rating 125A, has 18 triple pole ways and a TP&N switch disconnector included. The Acti9 Isobar P Meter Ready Distribution Boards are suitable for standard, commercial. and Industrial applications and enabled for an incoming meter connection. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9BPN18M Categories: , , Brand: Product Code: 2501109051

Description

Technical Specifications  Technical Specifications Small distribution board Width 470 mm Height 862 mm Depth 139 mm Width in number of modular spacings 18 Number of rows 2 RAL number 9001 Transparent cover/door No Extension possible Yes With mounting plate No With DIN-rail Yes With lock Yes EMC-version No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224038
