Eaton Distribution Board 4Way Single Pole+Neutral 125A
£85.63 Incl. VAT
MEM A distribution board; 4-way SPN · · · Interlinking form for improved positional security · · Removable main busbar for flexible installation · · Unique full form blanking modules for unused MCB ways. Provides secure shrouding of unused busbar st · · Main busbar is removable for flexible installation. · · Fully shrouded Neutral busbar for increased safety · · Choice of metering option to suit application needs and aid compliance with latest Building Regulati · · Door opens 180 to provide easy access and device operation · · Standard incomer Switch Disconnector rating of 125A provides higher rated solution for commercial bu · · 125A · · 4 Ways
✓ In stock – Delivery in 1–2 days
Description

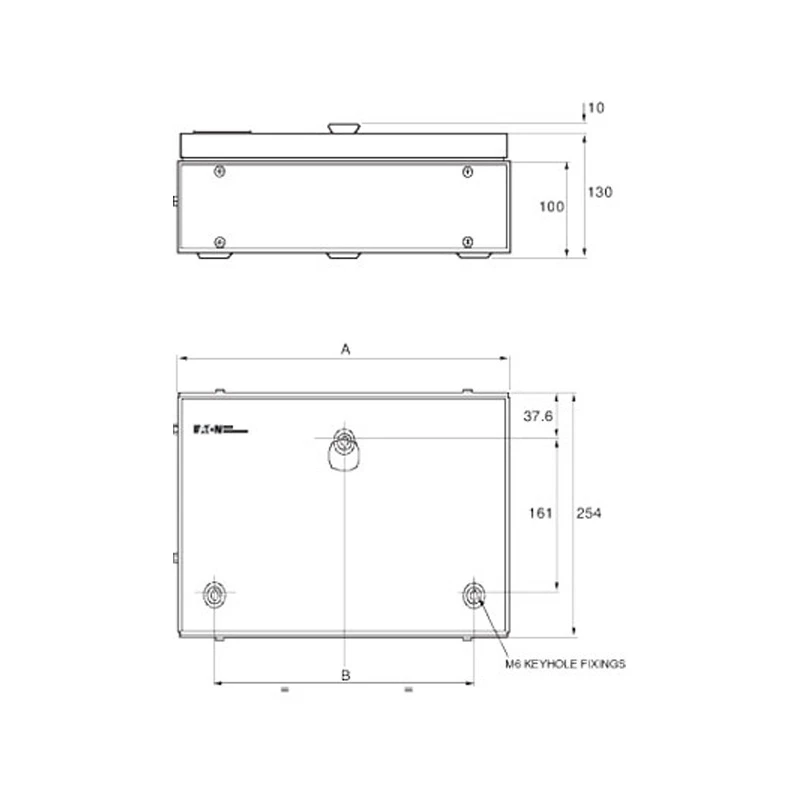

Technical Specifications Technical Specifications Small distribution board Colour Grey Housing material Steel Type of covering Door Mounting method Surface mounted Degree of protection (IP rating) IP3X Cover model Closed Width 238 mm Height 254 mm RAL number 7004 Depth 130 mm Recess height 254 mm Number of rows 1 Recess width 238 mm Recess depth 130 mm Width in number of modular spacings 6 With DIN-rail Yes With lock No Earthing terminal block Yes Neutral terminal block Yes Internal depth 95 mm Signal passing door No Transparent cover/door No Extension possible Yes With mounting plate No EMC-version Yes · Technical Data Sheet – Click to Download
