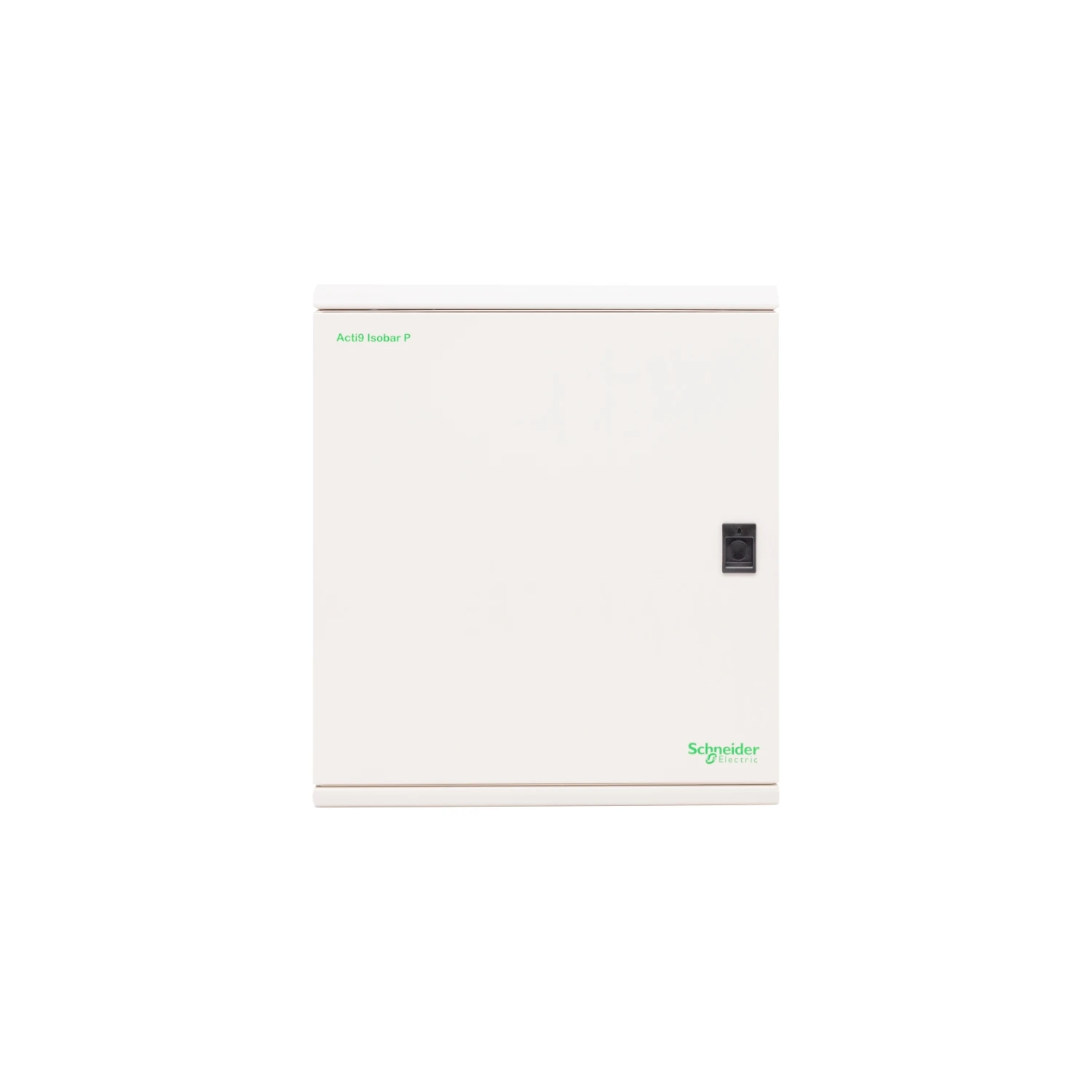

Schneider Electric Distribution Board 8Way Triple Pole 250A 538 x 470 x 139mm

This Acti9 Isobar P B product is a meter ready distribution board, up to 125A. (e.g. circuit breakers, Arc fault detection devices, and residual current devices) – associated with one or more outgoing circuits fed from incoming circuits, together with terminals for the neutral and circuit protective conductors.- It is suitable for standard, commercial and industrial applications. The dimensions are (W) 470mm x (H) 538mm x (D) 138mm. According to BS/EN 60529 standard, the IP degree of protection is IP3x. The color of this distribution board is cream (RAL9001). This distribution board is compliant with BS/EN 61439-3 standard. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product · · Ambient air temperature for operation -35 to 70 C
