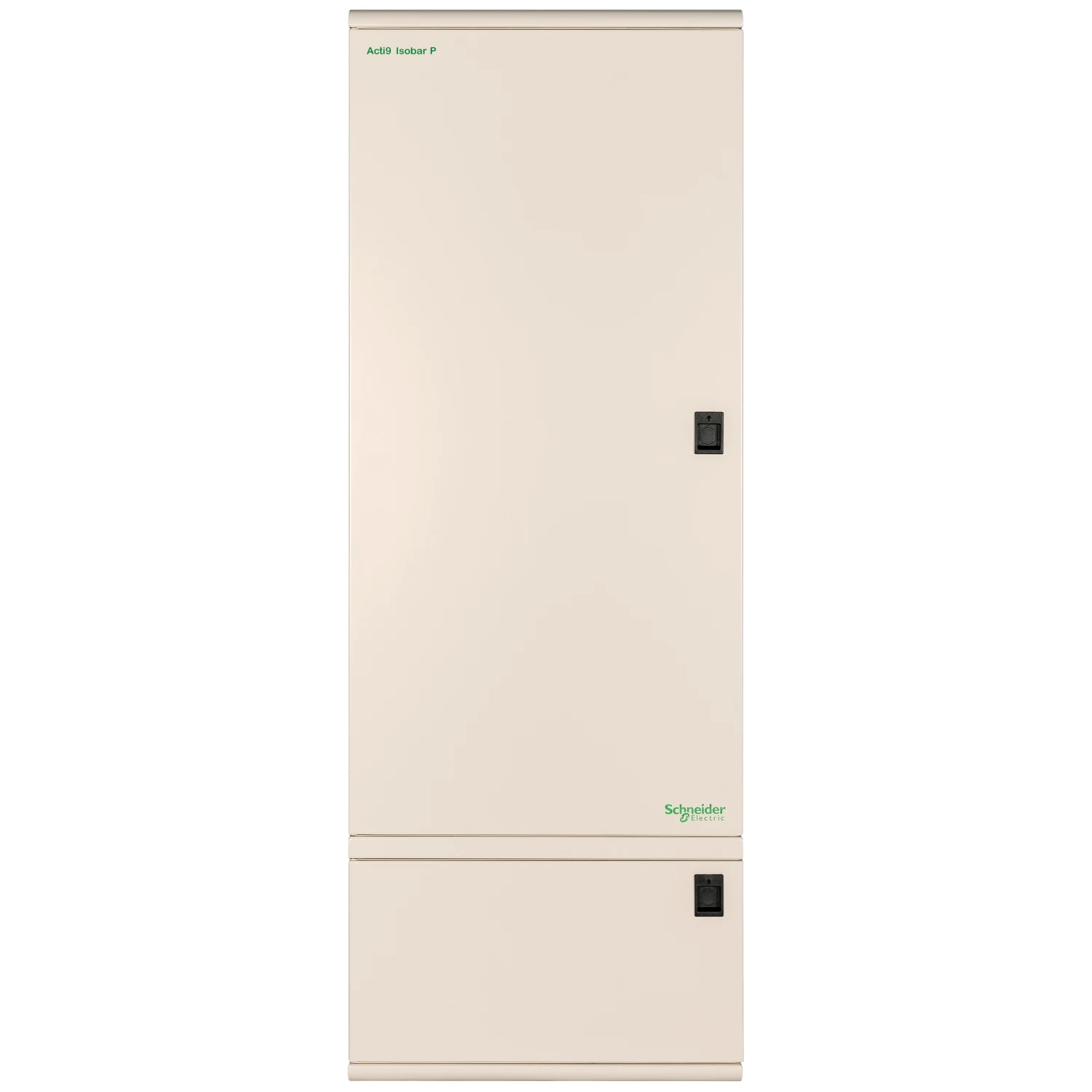

Schneider Electric Distribution Board Acti9 18+4Way Isobar Split 250A Metered Db
Schneider Electric Distribution Board Acti9 18+4Way Isobar Split 250A Metered Db
Schneider Electric Distribution Board Acti9 18+4Way Isobar Split 250A Metered Db - Image 2
Schneider Electric Distribution Board Acti9 18+4Way Isobar Split 250A Metered Db - Image 3

Schneider Electric Distribution Board Acti9 18+4Way Isobar Split 250A Metered Db

£4,132.09 Incl. VAT

The Schneider Electric Split Metered Acti9 Isobar P B Type PoN Distribution Board SEA9BPN25018 with a busbar rating of 250A has 18 triple pole ways with an extra 4 on the upper pan assembly. This board is suitable for standard, commercial and Industrial applications and include a 125A Switch Disconnector incomer and MID meters with communications (Meters included are 2 A9MEM3255) · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9BPN25018S4 Categories: , , Brand: Product Code: 2501108953

Description

Technical Specifications  Technical Specifications Small distribution board Width 470 mm Depth 139 mm Height 1694 mm Width in number of modular spacings 18 Number of rows 2 RAL number 9001 With lock Yes Extension possible Yes With DIN-rail Yes Transparent cover/door No EMC-version No With mounting plate No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224038
