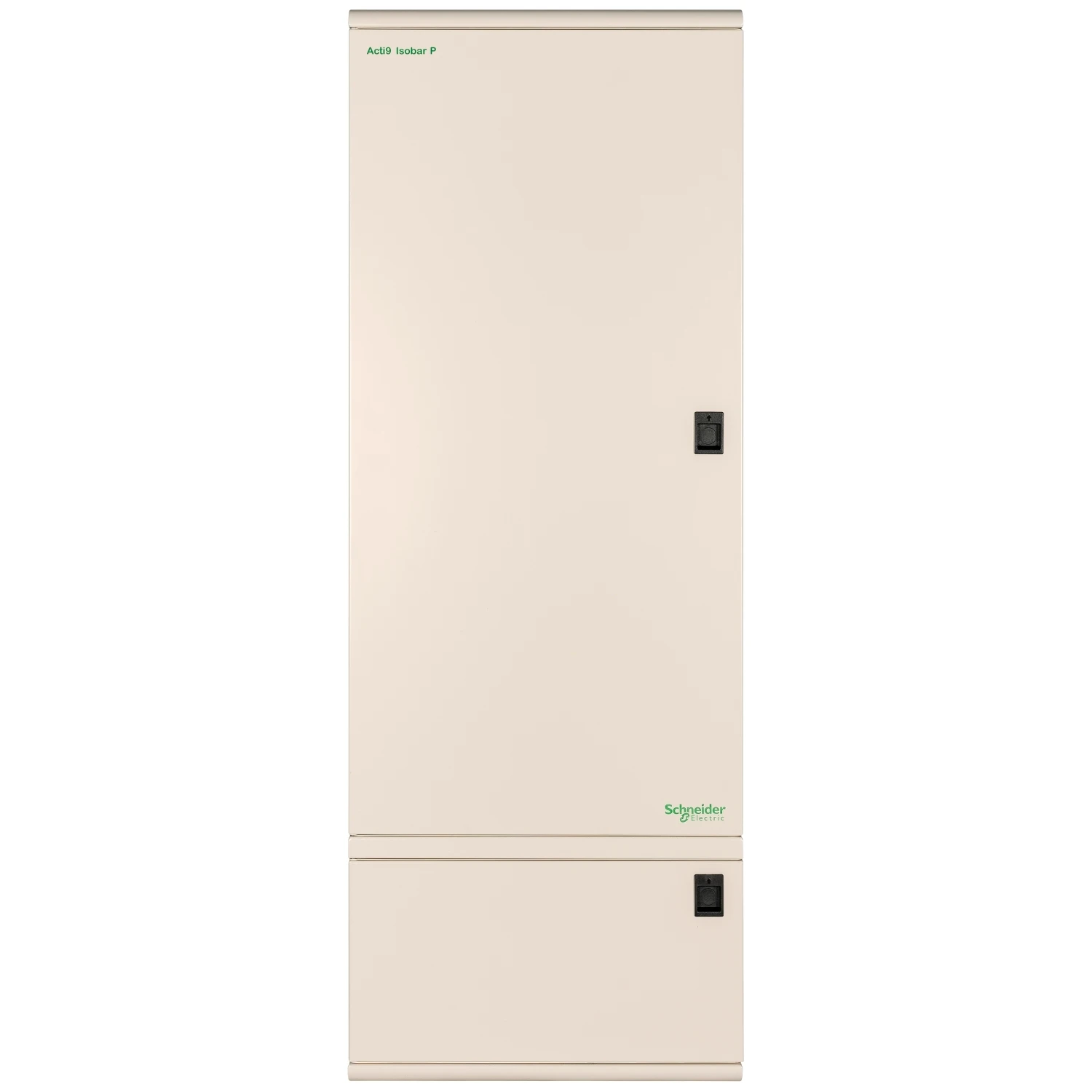

Distribution Board Acti9 8+8 Split Metered B Type 250A
Distribution Board Acti9 8+8 Split Metered B Type 250A
Distribution Board Acti9 8+8 Split Metered B Type 250A - Image 2
Distribution Board Acti9 8+8 Split Metered B Type 250A - Image 3

Distribution Board Acti9 8+8 Split Metered B Type 250A

£4,989.70 Incl. VAT

The Schneider Electric Split Metered Acti9 Isobar P B Type PoN Distribution Board SEA9BPN2508S8 with a busbar rating of 250A has 8 triple pole ways with an extra 8 on the upper pan assembly. This board is suitable for standard, commercial and Industrial applications and include a 125A Switch Disconnector incomer and MID meters with communications (Meters included are 2 A9MEM3255) · · · Plug-on neutral · · Ease of installation · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product

10 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9BPN2508S8 Categories: , , Brand: Part Number: 2501109062

Description

Technical Specifications  Technical Specifications Small distribution board Width 470 mm Height 1694 mm Depth 139 mm Number of rows 2 Transparent cover/door No RAL number 9001 Width in number of modular spacings 8 With mounting plate No Extension possible Yes EMC-version No With lock Yes With DIN-rail Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224038
