Schneider Electric Distribution Board Kq Triple Pole 12Way Type B 250A

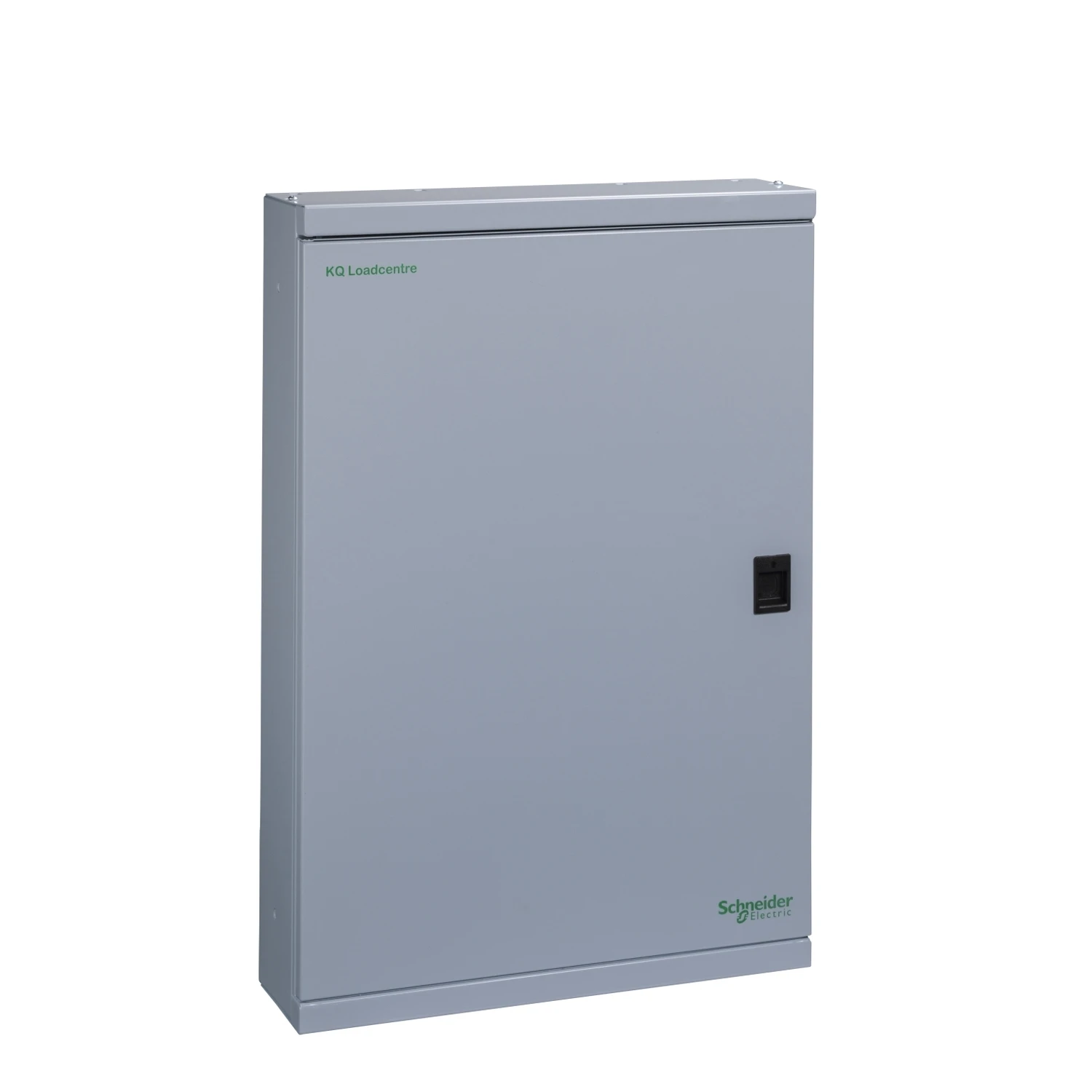

The Schneider LoadCentre KQ SE36B250 is a 12 triple pole way distribution board with a maximum busbar rating of 250Amps with a voltage rating of 400/415V AC. This Schneider LoadCentre KQ distribution board has a click-in busbar for speed of installation and guaranteed connection, a fully shielded neutral bar with a cable capacity of 25mm. The LoadCentre KQ range of distribution boards have an external IP3X protection to BS EN 60529, are rated at IP2XB finger safe with door and cover removed also rated to BS EN 60529 and has a wide range of triple, double, single pole MCB’s and single pole RCBO’s. · · · BSEN61439-1 Compliant · · 250A rated · · Range of internal incomers for all applications including lugs, switches, RCCBs and MCCBs · · Outgoing MCBs available up to 63A B and C curves · · 18mm wide RCBO available, minimising use of outgoing ways · · Fitted with electronic circuitry to monitor the presence of detectors · · Signals any unauthorised removal of detector heads
