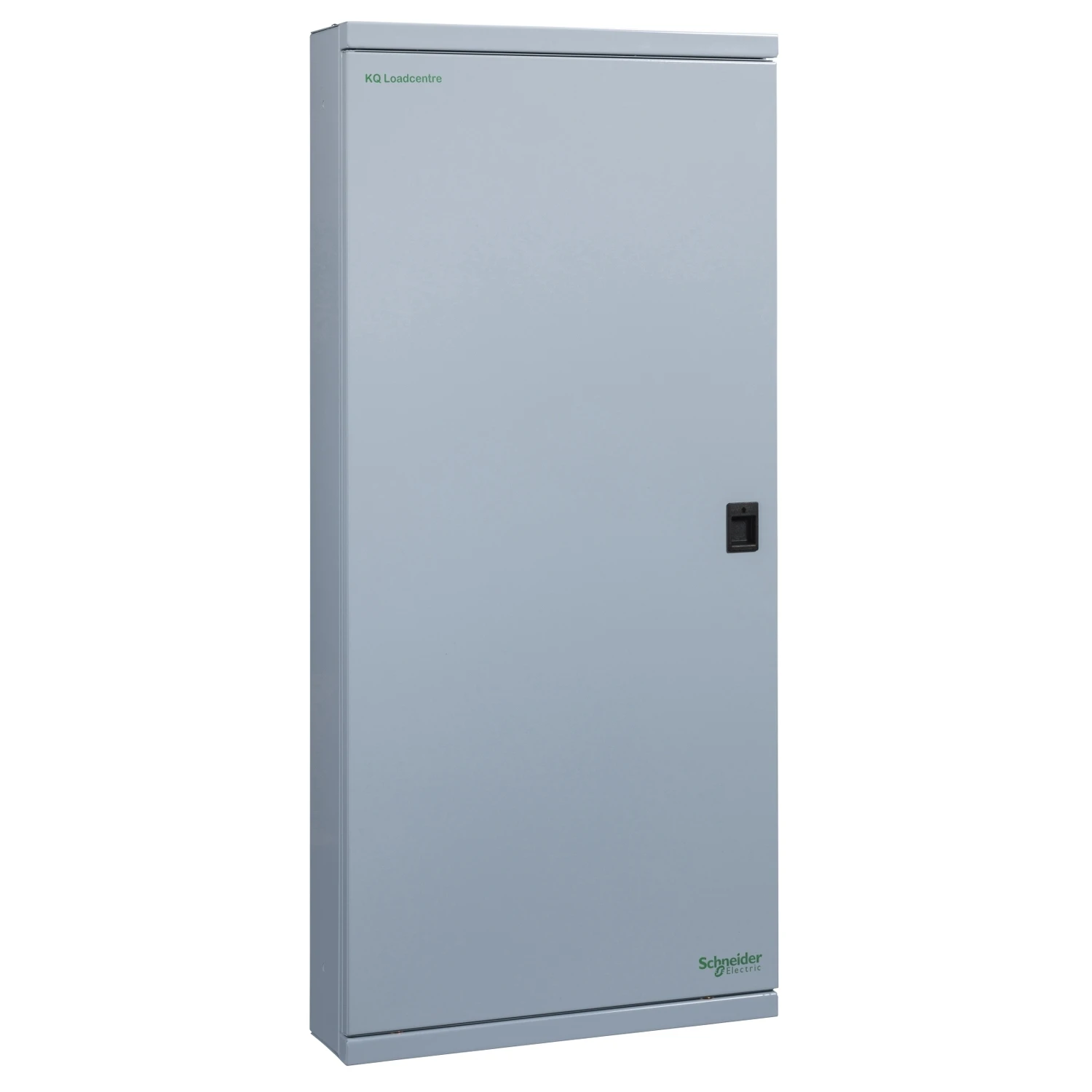

Product image supplied by the manufacturer
Distribution Equipment

Schneider Electric Distribution Board Kq Triple Pole 24Way Type B 250A

Brand: Schneider ElectricProduct code: SE72B250Go Magpie Ref: 5060062307995

The Schneider LoadCentre KQ SE72B250 is a 24 triple pole way distribution board with a maximum busbar rating of 250Amps with a voltage rating of 400/415V AC. This Schneider LoadCentre KQ distribution board has a click-in busbar for speed of installation and guaranteed connection, a fully shielded neutral bar with a cable capacity of 25mm. The LoadCentre KQ range of distribution boards have an external IP3X protection to BS EN 60529, are rated at IP2XB finger safe with door and cover removed also rated to BS EN 60529 and has a wide range of triple, double, single pole MCB’s and single pole RCBO’s. · · · A higher performance level than a consumer unit · · Modular solution which is flexible · · Metering and integral control options · · Steel enclosure material · · 17, 18mm modules per row · · Earth terminal block suitable for 25mm²

£852.08inc VAT£710.07 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Small distribution board Width 470 mm Height 1024 mm Number of rows 1 With mounting plate No Depth 139 mm Transparent cover/door No Extension possible Yes With lock No With DIN-rail Yes EMC-version No · Technical Data Sheet – Click to Download
