Distribution Board Single Pole 10 + 4Way Type A Din Rail 125A 300 x 417 x 117mm
Distribution Board Single Pole 10 + 4Way Type A Din Rail 125A 300 x 417 x 117mm
Distribution Board Single Pole 10 + 4Way Type A Din Rail 125A 300 x 417 x 117mm - Image 2
Distribution Board Single Pole 10 + 4Way Type A Din Rail 125A 300 x 417 x 117mm - Image 3

Distribution Board Single Pole 10 + 4Way Type A Din Rail 125A 300 x 417 x 117mm

£252.55 Incl. VAT

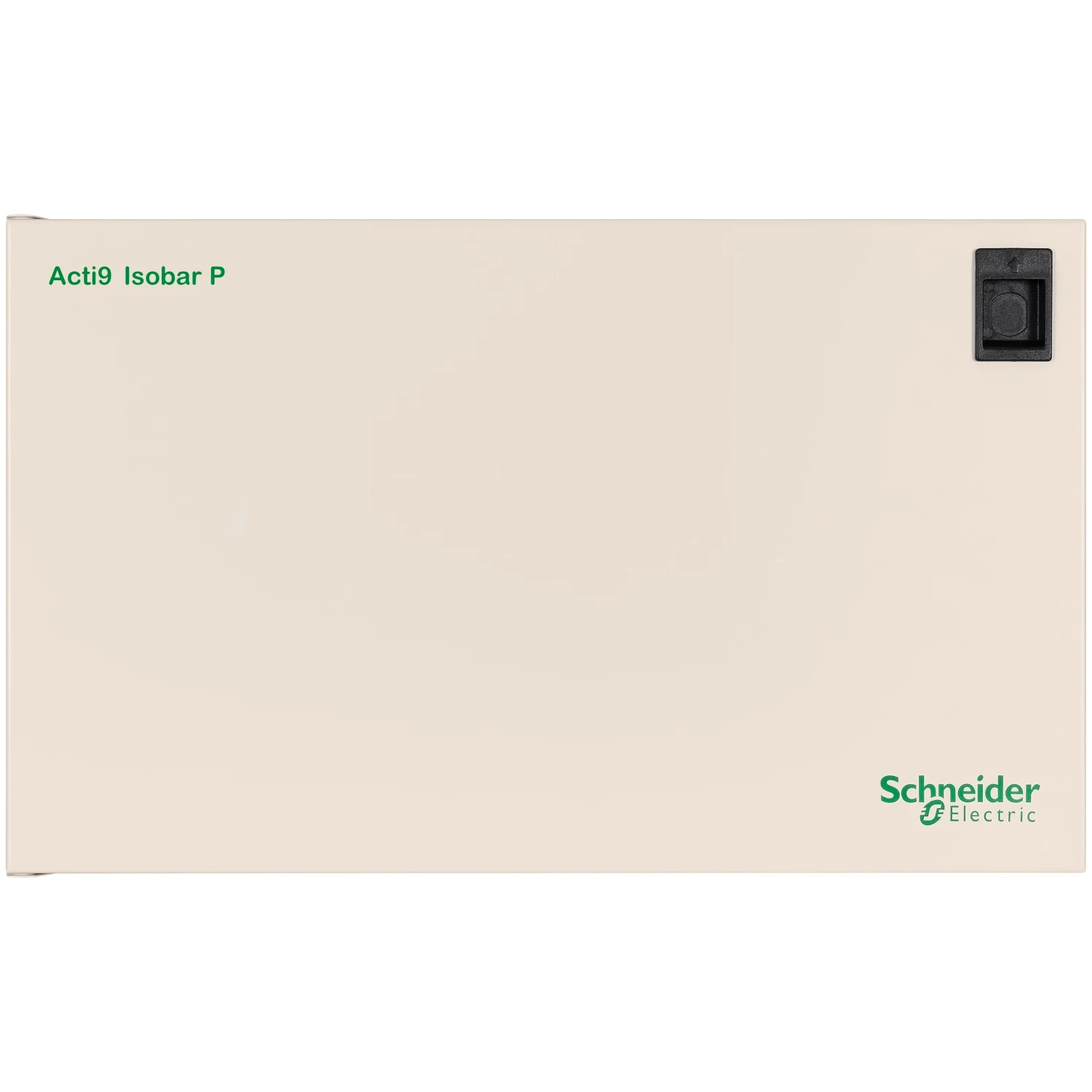

The Acti9 Isobar P A Type Distribution Boards are suitable for standard, commercial and Industrial applications. For applications of final circuit single phase distribution, typical loads serviced; Lighting, Power, IT, HVAC, Critical Power. Generally supplied by a panel board or three phase distribution board, systems are designed to ensure supply continuity selectivity and enhanced performance. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product

9 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEA9APN108MS Categories: , , Brand: Part Number: 2501109002

Description

Technical Specifications  Technical Specifications Small distribution board Width 417 mm Height 300 mm RAL number 9001 Depth 117 mm Width in number of modular spacings 10 Number of rows 2 Extension possible Yes EMC-version No With lock Yes Transparent cover/door No With mounting plate No With DIN-rail Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224037
