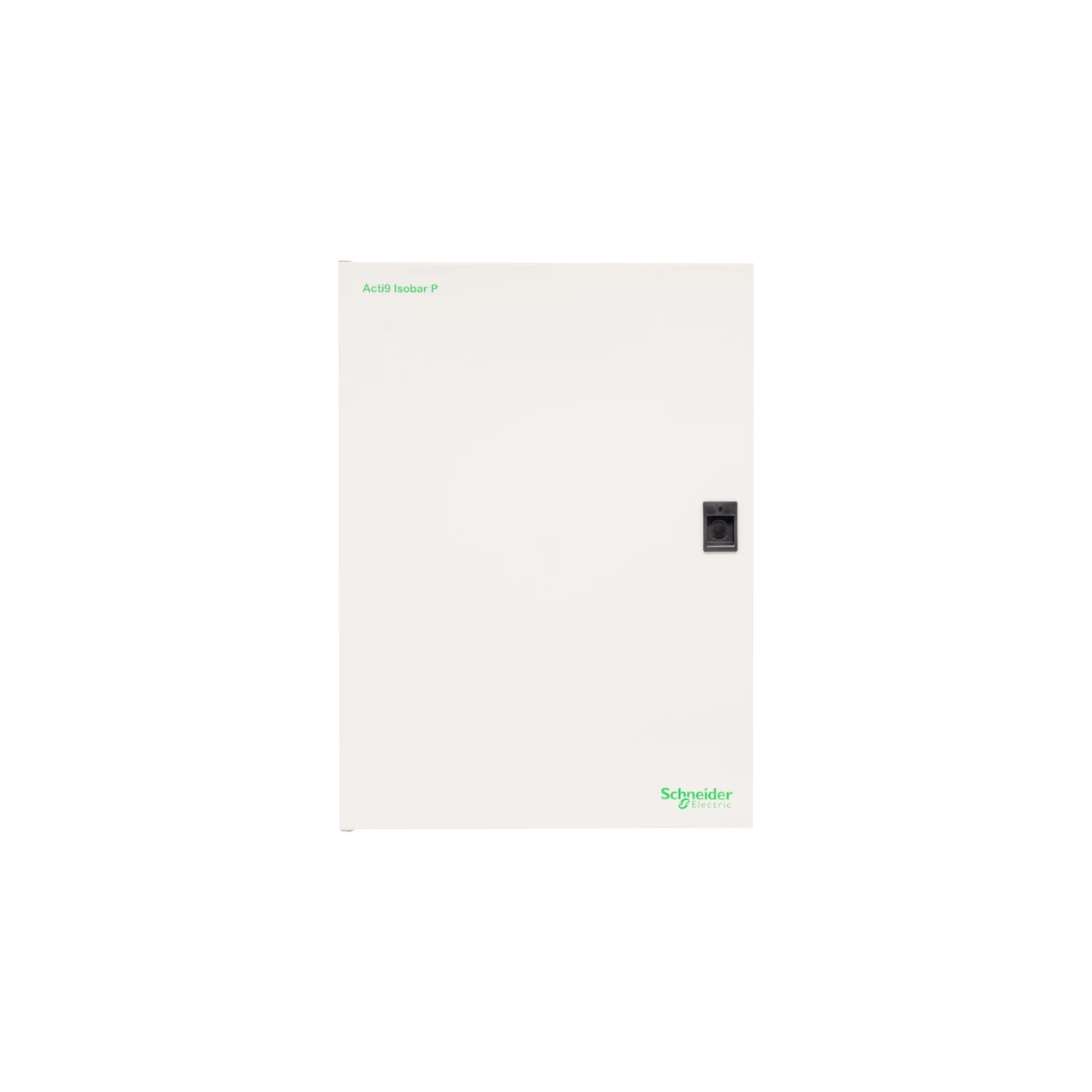

Distribution Board Single Pole 14+16Way Type A Din Rail 125A 530 x 417 x 117mm
£390.61 Incl. VAT
The Acti9 Isobar P A Type Distribution Boards are suitable for standard, commercial and Industrial applications. For applications of final circuit single phase distribution, typical loads serviced; Lighting, Power, IT, HVAC, Critical Power. Generally supplied by a panel board or three phase distribution board, systems are designed to ensure supply continuity selectivity and enhanced performance. · · · Plug-on neutral · · Ease of installation · · IP20 internal conforming to BS EN 60529 · · IP3x external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product
9 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Small distribution board Width 417.00 mm Depth 117.00 mm Height 530.00 mm RAL number 9001.00 Number of rows 2.00 Width in number of modular spacings 14.00 Transparent cover/door No With DIN-rail Yes With lock Yes Extension possible Yes · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224037
