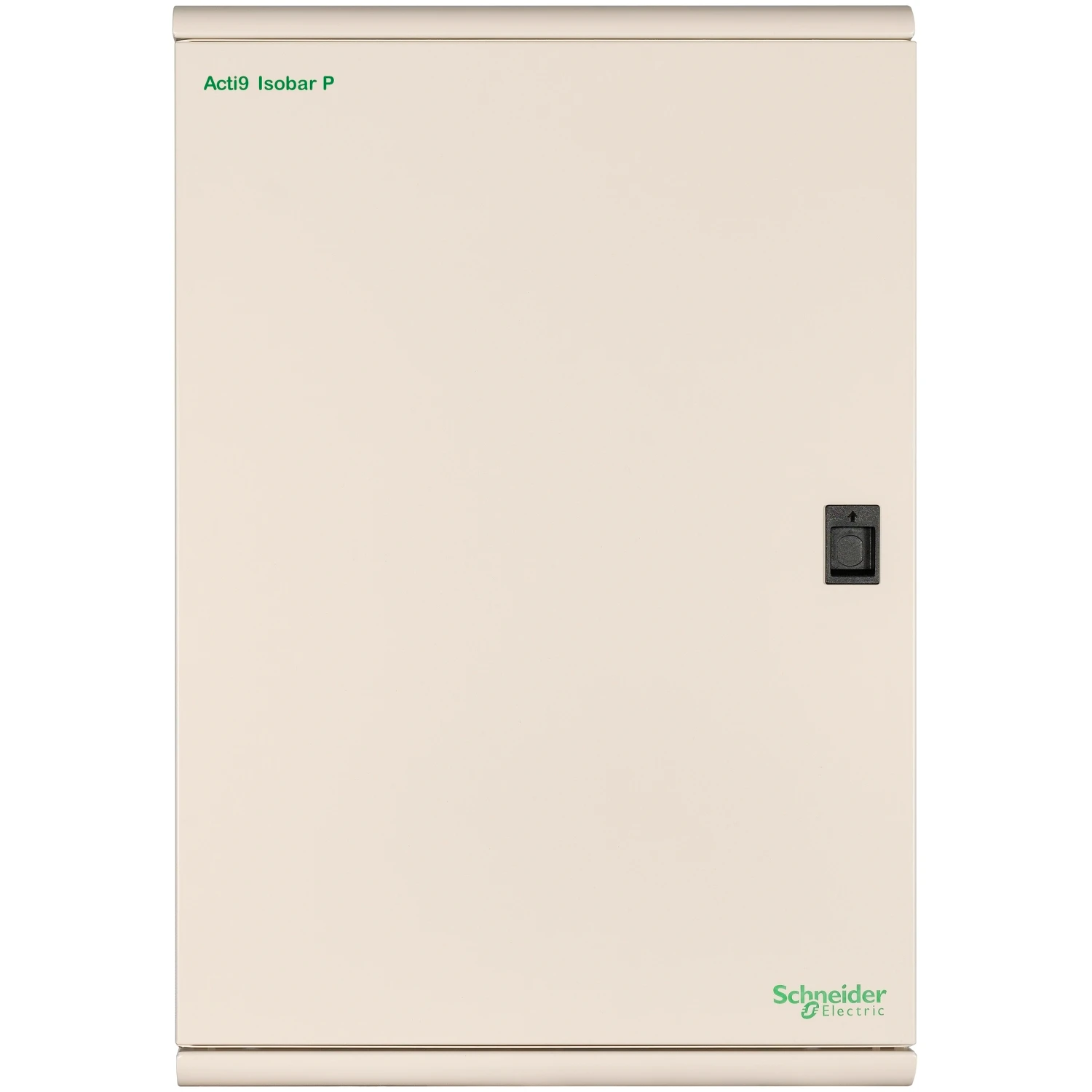

Schneider Electric Distribution Board Triple Pole 6Way Type B 250A 484 x 470 x 139mm

The Schneider Electric Acti9 B Type range of distribution board are all built with the Acti9 fully insulated, indivdually interlock switched outgoing way Isobar P bussbar system. The Schneider Acti9 Isobar P offers the ‘Plug on Neutral’, halfing instalation time. The Schnieder Electric Acti9 SEA9BPN6 is a 6 triple way, 250 amp rated distribution board with a full range of incomers, MCB’s and RCBO’s (All sold separately). The Schneider Acti9 Isobar P distribution boards also offer fully shrouded split neutral bars and main switch connections, removable insulated pan assembly, cable glands and conduit knockouts. The Schneider Electric Acti9 Isobar P boards can be installed with either standard Acti9 RCBO’s or Acti9 PoN RCBO’s. · · · Plug-on neutral · · Ease of installation · · IP2x without cover internal conforming to BS EN 60529 · · IP3x with cover external conforming to BS EN 60529 · · ambient air temperature for operation between -35…70 °C · · IK05 degree of protection · · Powder Painted Steel with Epoxy Treatment · · Green Premium Product · · Ambient air temperature for operation -35 to 70 C
