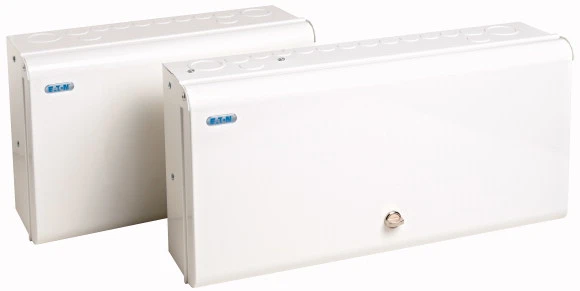

Distribution Board Triple Pole+Neutral Smart Meter+200A SD 200A Incomer Fitted
Distribution Board Triple Pole+Neutral Smart Meter+200A SD 200A Incomer Fitted
Distribution Board Triple Pole+Neutral Smart Meter+200A SD 200A Incomer Fitted - Image 2
Distribution Board Triple Pole+Neutral Smart Meter+200A SD 200A Incomer Fitted - Image 3
Distribution Board Triple Pole+Neutral Smart Meter+200A SD 200A Incomer Fitted - Image 4

Distribution Board Triple Pole+Neutral Smart Meter+200A SD 200A Incomer Fitted

£3,783.62 Incl. VAT

Split metered power and lighting board – 200A TPN, type B incl. combined pulsed and modbus meter · · · Meter has both pulsed and Modbus outputs as standard · · Fitted with door lock as standard · · Single phasing kit included to be used if required · · Adequate integral cabling space means that no extension box is required · · Includes factory fitted 200A switch disconnector and two channel meter

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EBMSL1082MPMB Categories: , , Brand: Part Number: 2500779790

Description

Technical Specifications  Technical Specifications Meter cabinet equipped Colour Grey Material Steel Lower connection space With clamps Degree of protection (IP rating) IP3X Model 1-story Mounting method Surface mounted Width 440 mm Depth 130 mm Height 1342 mm Recess depth 130 mm Number of meter cabinets 1 Number of tariff control panels 0 Number of fields 1 Recess width 440 mm Recess height 1342 mm Rated current 200 A Number of distributor rows 1 RAL number 7004 With mounting plate No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
