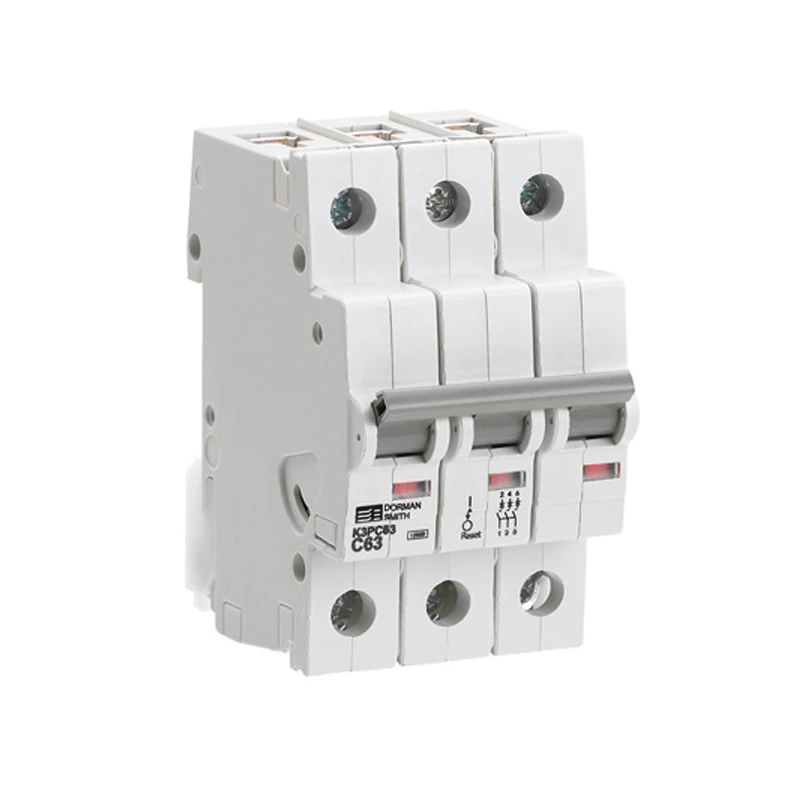

Dorman Smith MCB K Series Type C Triple Pole 32A 10Ka
Dorman Smith MCB K Series Type C Triple Pole 32A 10Ka
Dorman Smith MCB K Series Type C Triple Pole 32A 10Ka - Image 2
Dorman Smith MCB K Series Type C Triple Pole 32A 10Ka - Image 3
Dorman Smith MCB K Series Type C Triple Pole 32A 10Ka - Image 4

Dorman Smith MCB K Series Type C Triple Pole 32A 10Ka

£68.74 Incl. VAT

Miniature Circuit breakers are designed to be used with the Loadlimiter 63 TP&N distribution board systems. · · · 3-pole MCB · · 10kA MCB 3-pole 32A C type · · 10kA rated to EN 60898 · · 15kA rated to EN 60947 · · Contact position indicator · · Maximum cable termination of 35mm²

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: K3PC32 Categories: , , Brand: Product Code: 2500329136

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Voltage type AC Rated voltage 400 V Rated current 32 A Number of poles (total) 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10 kA Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10 kA Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V 15 kA Frequency 50 – 60 Hz Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V 15 kA
