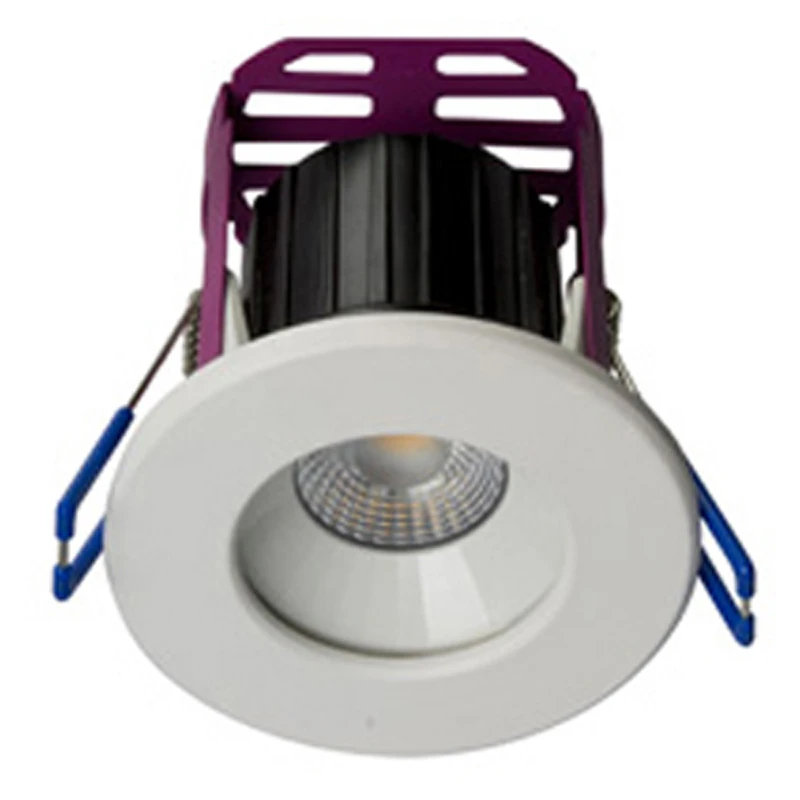

Downlight Fire Rated Dimmable 8.5W White/Black 3000K 60° IP65

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Maximum system power 6.6 W Power factor 0.9 Recess width – mm Luminaire efficacy 90 lm/W Rated life time L70/B50 at 25 °C 30000 h Rated luminous flux acc. IEC 62722-2-1 – lm Luminous intensity – cd Unified Glare Rating (UGR) 23.2 Total harmonic distortion 20 Recess height/depth – mm Outer diameter 86 mm Recess length – mm Height/depth 93 mm Colour temperature 3000 – 3000 K Nominal voltage 220 – 240 V Fit for workplace acc. EN 12464-1 No With movement sensor No With light sensor No Suitable for suspended mounting No Cut-out diameter 70 – 70 mm Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Luminous flux 590 – 590 lm Suitable for recessed mounting No Suitable for ceiling mounting No Control gear included No Light source included No Suitable for light-track mounting No Luminaire may be covered with thermally insulating material No Suitable for surface mounting No Suitable for clamp-mounting No Brushed surface No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for traverse mounting No Suitable for pedestal/floor mounting No Suitable for low voltage cable system No Dimming touch and dim No Dimming Zigbee No Dimming programmable No Dimming with push-button No Dimming DSI No Dimming manufacturer’s proprietary system No Dimming leading edge Yes Dimming sine wave reduction No Dimming DALI No No dimming function No Dimming mains voltage modulation No Dimming 0-10 V No Dimming DMX No Dimming potentiometer (integrated) No Dimming 1-10 V No Dimming LineSwitch No Dimming RF No Dimming trailing edge Yes · Technical Data Sheet – Click to Download
