Downlight Triumph Activate Dob Cob LED 6W 38° 4000K IP65
Downlight Triumph Activate Dob Cob LED 6W 38° 4000K IP65
Downlight Triumph Activate Dob Cob LED 6W 38° 4000K IP65 - Image 2

Downlight Triumph Activate Dob Cob LED 6W 38° 4000K IP65

£31.26 Incl. VAT

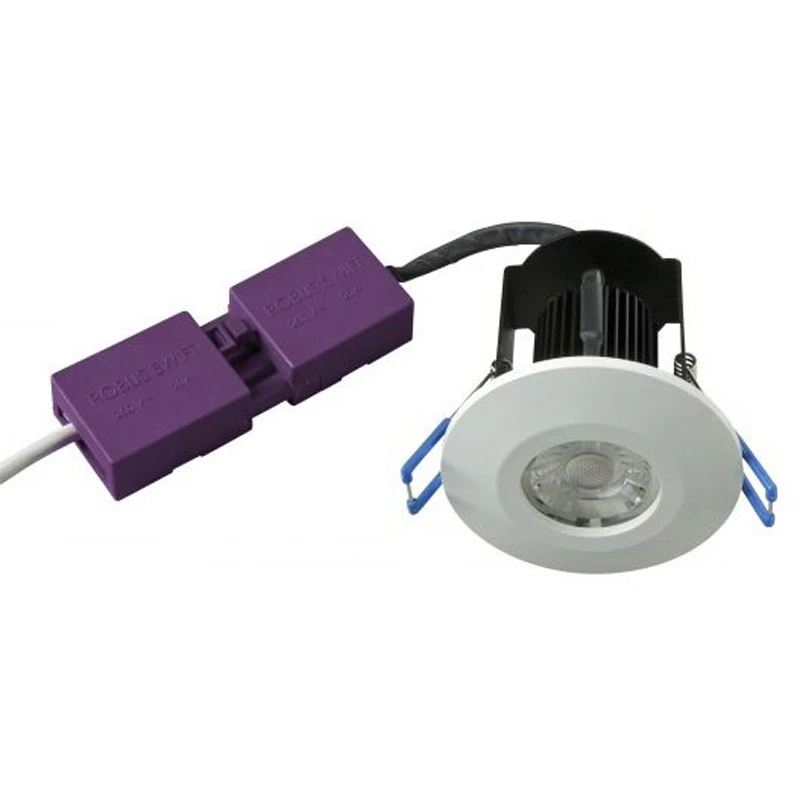

Robus Dimmable LED Downlight with Swift male/female connector and white bezel. It is suitable for use in offices, retail shops, reception areas, hotels, restaurants, bars and clubs, showrooms. The addition to the Triumph Activate range of fire and IP65 rated LED downlight combines the latest state of the art technologies available to create the highest performance downlight. The State of the art Integrated Chips with no traditional electrolytic capacitors provide true Driver-On-Board (DOB) technology with all power supply, driver components, dimming functionality, power factor, surge and thermal protection integrated onto the LED PCB and powered direct from the mains supply. Available in neutral white. · · · True Activate Driver-On-Board (DOB) Mains Operated technology – providing dimmability, driver efficiency and reliability · · Chip-On-Board (COB) for superb light output, high efficacy and long life · · True ACtivate Driver-On-Board (DOB) Mains Operated technology providing dimmability, driver efficiency and reliability (no electrolytic capacitor) · · Integrated insulation stand-off enabling insulation to be laid over the fitting · · High lumen output of ? 550 lumens · · LED replacement for 50W halogen downlights · · Low power consumption of 6W · · Pre-wired with ROBUS SWIFT 4 pin male/female plug & play connector with large terminals and integrated cable restraint. Fast, simple and efficient installability · · Efficacy of 85 luminaire lm/cctW to comply with Part L1 & L2 UK Building Regulations · · -20 to 40°C Operating temperature range

15 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RATR6P04038-01 Categories: , , Brand: Part Number: 2500875854

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Recess width – mm Height/depth 66 mm Outer diameter 91.5 mm Unified Glare Rating (UGR) 23.9 Rated life time L70/B50 at 25 °C 50000 h Maximum system power 5.6 W Rated luminous flux acc. IEC 62722-2-1 – lm Luminaire efficacy 98 lm/W Recess length – mm Luminous intensity – cd Power factor 0.9 Total harmonic distortion 48.6 With light sensor No Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Cut-out diameter 70 – 70 mm Luminous flux 550 – 550 lm Nominal voltage 220 – 240 V Colour temperature 4000 – 4000 K Recess height/depth 56 mm Control gear included No Suitable for clamp-mounting No Suitable for traverse mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Light source included No With movement sensor No Suitable for suspended mounting No Suitable for pedestal/floor mounting No Suitable for recessed mounting No Suitable for surface mounting No Luminaire may be covered with thermally insulating material No Dimming potentiometer (integrated) No Dimming mains voltage modulation No Suitable for ceiling mounting No Fit for workplace acc. EN 12464-1 No Brushed surface No Dimming leading edge Yes Dimming 0-10 V No Dimming RF No Dimming DMX No Dimming manufacturer’s proprietary system No Suitable for low voltage cable system No Suitable for light-track mounting No Dimming sine wave reduction No Dimming DSI No Dimming Zigbee No Dimming trailing edge Yes Dimming LineSwitch No Dimming DALI No Dimming programmable No Dimming 1-10 V No No dimming function No Dimming touch and dim No Dimming with push-button No · Technical Data Sheet – Click to Download
