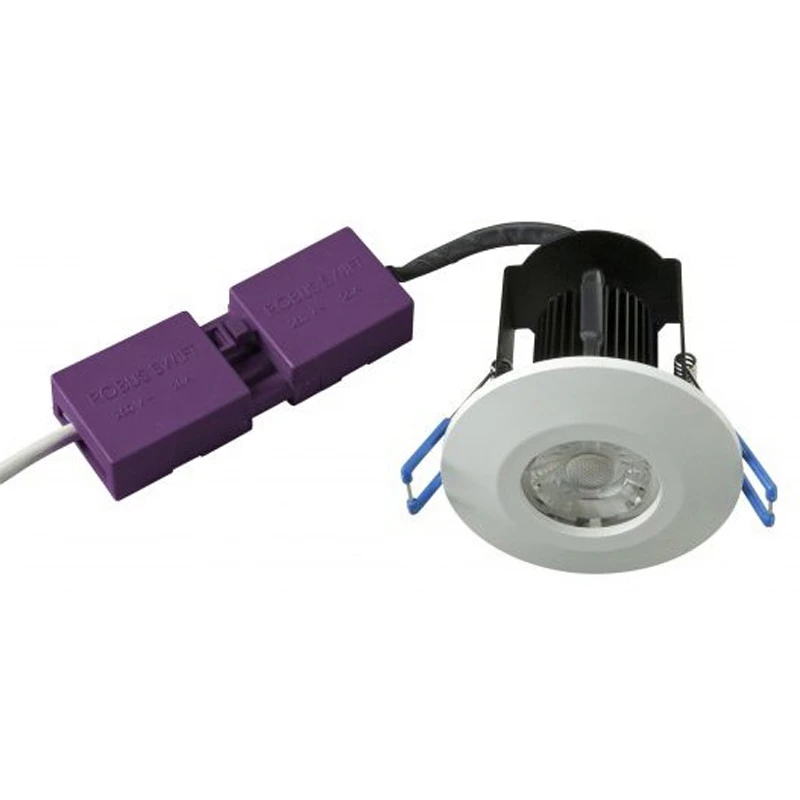

Robus Downlight Triumph Activate Dob Cob LED 8W 38° 3000K IP65
Robus Downlight Triumph Activate Dob Cob LED 8W 38° 3000K IP65
Robus Downlight Triumph Activate Dob Cob LED 8W 38° 3000K IP65 - Image 2

Robus Downlight Triumph Activate Dob Cob LED 8W 38° 3000K IP65

£43.12 Incl. VAT

The state-of-the-art integrated chips with no traditional electrolytic capacitors provide true Driver-On-Board (DOB) technology with all power supply, driver components, dimming functionality, power factor, surge and thermal protection integrated onto the LED PCB and powered direct from the mains supply. It is suitable for use in offices, retail shops, reception areas, hotels, restaurants, bars and clubs, showrooms. · · · True Activate Driver-On-Board (DOB) Mains Operated technology – providing dimmability, driver efficiency and reliability · · Chip-On-Board (COB) for superb light output, high efficacy and long life · · Low heat emissions · · Integrated insulation stand-off enabling insulation to be laid over the fitting · · Dimmable with selected dimmers · · LED replacement for 1 x 18W halogen downlights · · Low power consumption of 8W · · High lumen output of 670 lumens · · Efficacy of 83 luminaire lm/cctW to comply with Part L1 & L2 UK Building Regulations · · -20 to 40°C Operating temperature range

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RATR8P03038-01 Categories: , , Brand: Product Code: 2500776610

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Unified Glare Rating (UGR) 23.5 Power factor 0.9 Height/depth 90 mm Rated life time L70/B50 at 25 °C 50000 h Maximum system power 7.6 W Outer diameter 91.5 mm Colour temperature 3000 – 3000 K Cut-out diameter 70 – 70 mm Nominal voltage 220 – 240 V Dimming potentiometer (integrated) No Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Dimming with push-button No Dimming sine wave reduction No Dimming 0-10 V No Dimming leading edge Yes Dimming DSI No Dimming 1-10 V No Dimming Zigbee No Dimming programmable No Dimming RF No Dimming trailing edge Yes Dimming DALI No Dimming LineSwitch No Suitable for light-track mounting No Suitable for low voltage cable system No Dimming DMX No Dimming manufacturer’s proprietary system No Control gear included No Suitable for recessed mounting No Suitable for traverse mounting No Suitable for pedestal/floor mounting No Suitable for clamp-mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No With movement sensor No Suitable for suspended mounting No With light sensor No Dimming mains voltage modulation No Dimming touch and dim No Suitable for ceiling mounting No Fit for workplace acc. EN 12464-1 No Brushed surface No Suitable for surface mounting No Luminaire may be covered with thermally insulating material No Light source included No · Technical Data Sheet – Click to Download
