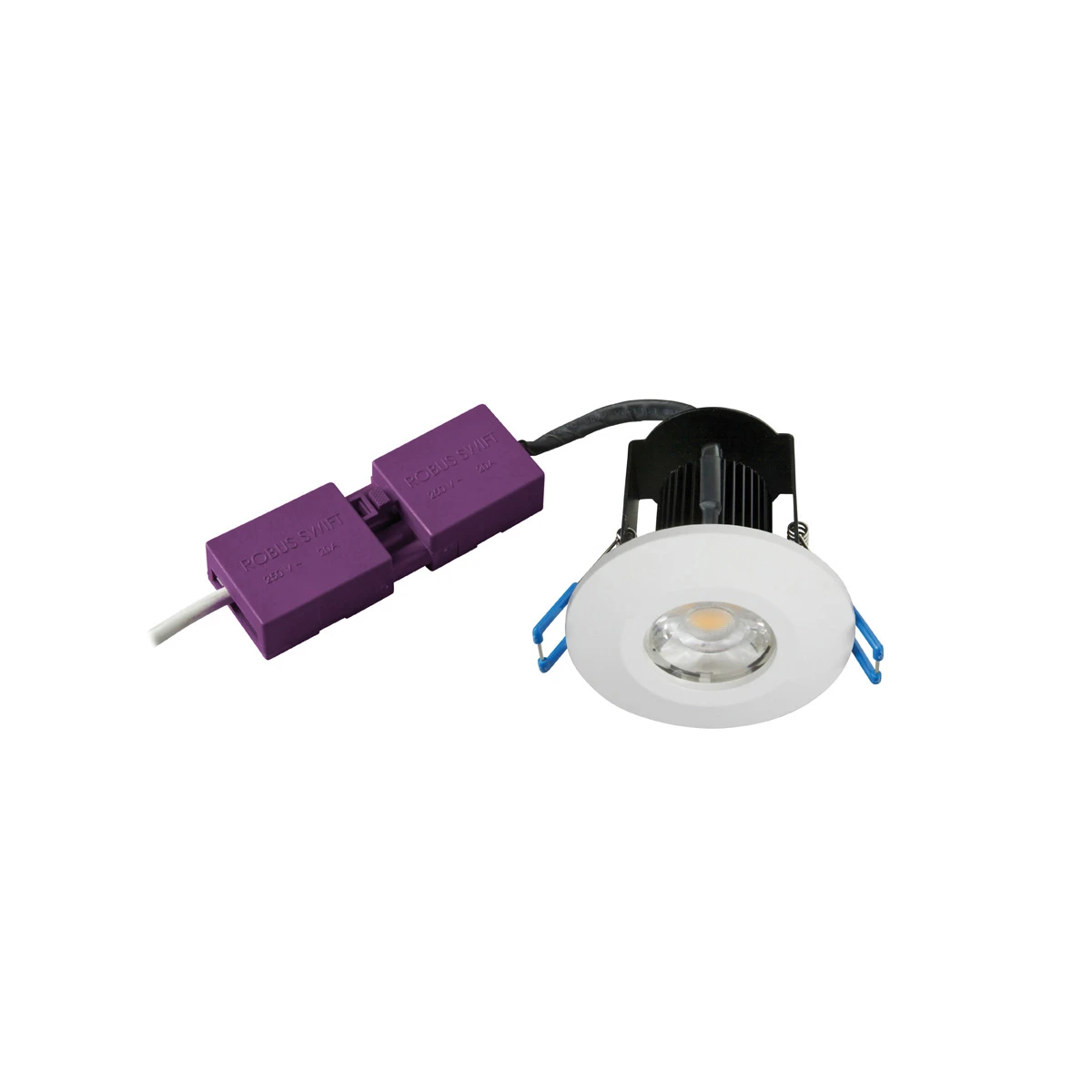

Downlight Triumph Activate DOB COB LED IP65 8W 38Deg 4000K

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Maximum system power 7.7 W Luminaire efficacy 95 lm/W Rated luminous flux acc. IEC 62722-2-1 – lm Recess height/depth 80 mm Height/depth 90 mm Luminous intensity – cd Recess length – mm Outer diameter 91.5 mm Nominal voltage 220 – 240 V Luminous flux 730 – 730 lm Colour temperature 4000 – 4000 K Total harmonic distortion 45.7 Power factor 0.9 Unified Glare Rating (UGR) 25.9 Recess width – mm Rated life time L70/B50 at 25 °C 50000 h Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Cut-out diameter 70 – 70 mm With light sensor No Suitable for suspended mounting No With movement sensor No Suitable for recessed mounting No Suitable for ceiling mounting No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for pedestal/floor mounting No Dimming DALI No Brushed surface No Control gear included No Suitable for light-track mounting No Fit for workplace acc. EN 12464-1 No Suitable for clamp-mounting No Light source included No Suitable for surface mounting No Suitable for traverse mounting No Luminaire may be covered with thermally insulating material No Dimming LineSwitch No Dimming trailing edge Yes Dimming DMX No Dimming DSI No Dimming leading edge Yes Suitable for low voltage cable system No Dimming potentiometer (integrated) No Dimming 1-10 V No Dimming mains voltage modulation No No dimming function No Dimming 0-10 V No Dimming manufacturer’s proprietary system No Dimming programmable No Dimming touch and dim No Dimming Zigbee No Dimming RF No Dimming sine wave reduction No Dimming with push-button No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573623 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/573624
