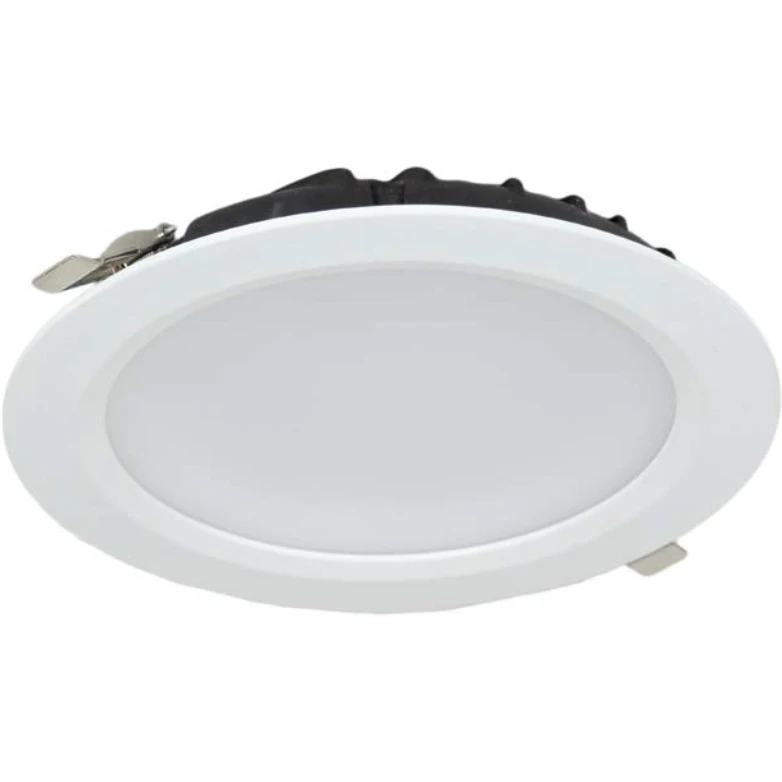

Robus Downlight Virtue LED 4000K IP54 24W White

Description

Technical Specifications  Technical Specifications Downlight / spot luminaire / floodlight Width – mm Housing colour White Outer diameter 221 mm Length – mm Conductor cross section – mm² Height/depth 38 mm Number of poles – Maximum system power 23.7 W Number of lamps – Unified Glare Rating (UGR) 28.8 Rated life time L70/B50 at 25 °C 50000 h Power factor 0.95 Lamp power – – – W Connectable conductor cross section – – – mm² Colour temperature 4000 – 4000 K Nominal voltage 220 – 240 V Rated ambient temperature acc. IEC62722-2-1 -20 – 40 °C Cut-out diameter 195 – 205 mm Light source included No Luminaire with limited surface temperature, class “D“ in acc. with EN 60598-2-24 No Suitable for clamp-mounting No Suitable for surface mounting No Suitable for light-track mounting No Luminaire may be covered with thermally insulating material No With movement sensor No With light sensor No Suitable for suspended mounting No Suitable for ceiling mounting No Dimming 0-10 V No Dimming leading edge No Dimming DSI No Dimming RF No Dimming Zigbee No Dimming trailing edge No Dimming DALI No Dimming touch and dim No Dimming programmable No Dimming mains voltage modulation No Dimming potentiometer (integrated) No Dimming sine wave reduction No Dimming 1-10 V No Brushed surface No Suitable for pedestal/floor mounting No Dimming with push-button No Control gear included No Suitable for recessed mounting No Dimming DMX No Dimming LineSwitch No Fit for workplace acc. EN 12464-1 No Suitable for traverse mounting No Suitable for low voltage cable system No Dimming manufacturer’s proprietary system No · Technical Data Sheet – Click to Download
