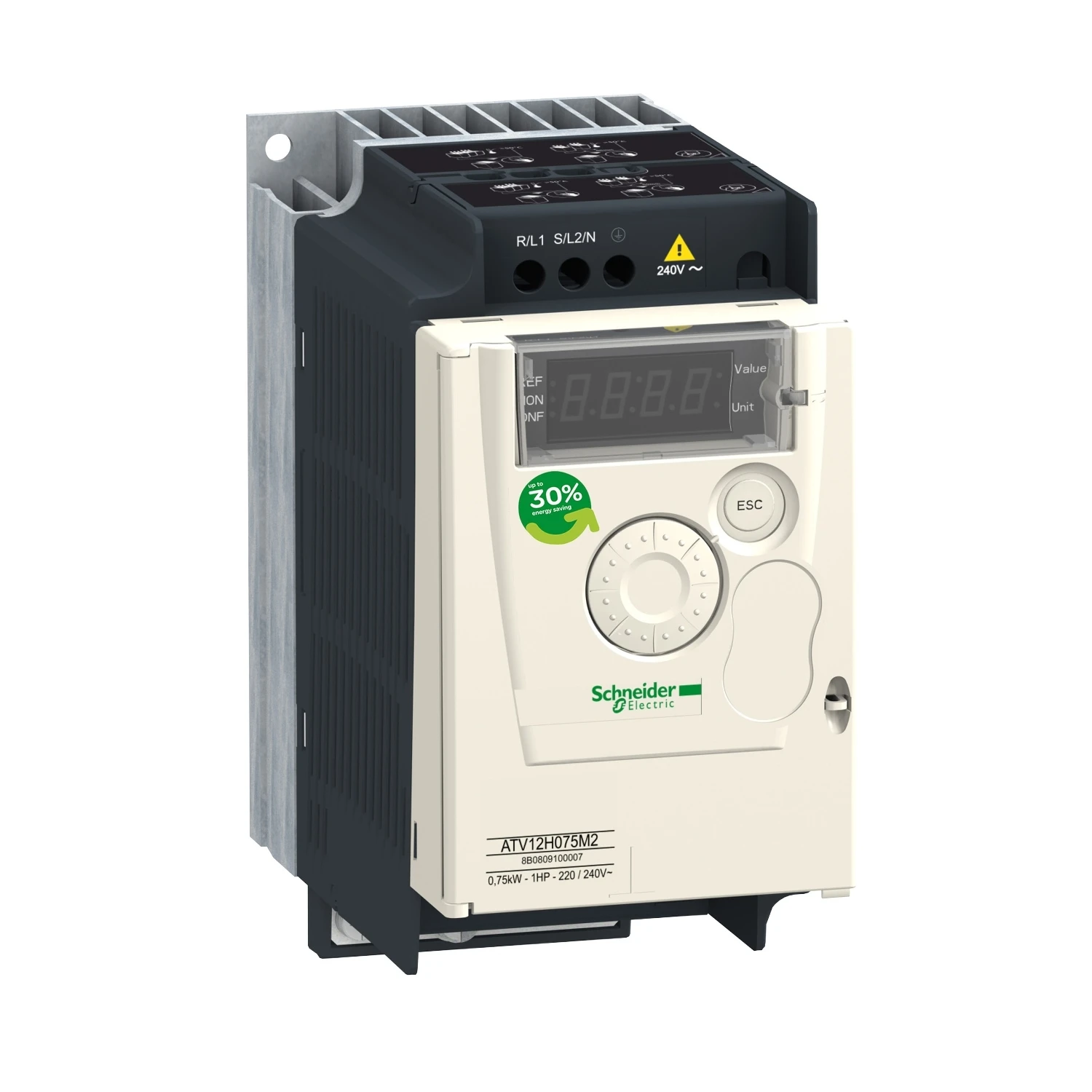

Drive Variable Speed 1 Phase ATV12 IP20 0.75kW 240V
Drive Variable Speed 1 Phase ATV12 IP20 0.75kW 240V
Drive Variable Speed 1 Phase ATV12 IP20 0.75kW 240V - Image 2
Drive Variable Speed 1 Phase ATV12 IP20 0.75kW 240V - Image 3

Drive Variable Speed 1 Phase ATV12 IP20 0.75kW 240V

£200.10 Incl. VAT

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings. · · · This Altivar 12 variable speed drive can feed single phase asynchronous motors. · · It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. · · It is designed with heatsink for normal environments and fan-cooled enclosure. · · Transient overtorque function prevents stoppages by unjamming the machine with extra torque, when needed, this reduces downtime and maintenance costs. · · It features underload and overload detection, this contribute to protect your installation. · · The Altivar 12 drive integrates as standard the Modbus communication protocol, which can be accessed via the RJ45 connector located on the underside of the drive. · · Shock resistance: 15gn · · Supply frequency: 50 – 60Hz · · It is designed for simple industry and commercial machines and appliances, such as conveyors, pumps, extractors, access barriers and treadmills. · · IP20 Degree of protection

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ATV12H075M2 Categories: , , Brand: Part Number: 2500352026

Description

Technical Specifications  Technical Specifications Frequency converter =< 1 kV Height 143 mm Width 72 mm Depth 131.2 mm Number of digital outputs 1 Number of analogue inputs 1 Number of HW-interfaces industrial Ethernet 0 Number of digital inputs 4 Number of HW-interfaces RS-232 0 Number of HW-interfaces RS-422 0 Number of HW-interfaces serial TTY 0 Number of analogue outputs 1 Max. output at quadratic load at rated output voltage 0.75 kW Number of HW-interfaces PROFINET 0 Max. output at linear load at rated output voltage 0.75 kW Relative symmetric net voltage tolerance 10 % Max. output voltage 230 V Nominal output current I2N 4.2 A Max. output frequency 400 Hz Relative symmetric net frequency tolerance 5 % Number of HW-interfaces parallel 0 Number of HW-interfaces RS-485 1 Number of HW-interfaces USB 0 Supporting protocol for INTERBUS No Supporting protocol for LON No Supporting protocol for ASI No Supporting protocol for PROFIBUS No With control unit Yes Mains voltage 200 - 240 V Number of HW-interfaces other 8 Supporting protocol for TCP/IP No Supporting protocol for CAN No Supporting protocol for MODBUS Yes With optical interface No Supporting protocol for other bus systems No Supporting protocol for SERCOS No Supporting protocol for SUCONET No Supporting protocol for DeviceNet No Supporting protocol for Data-Highway No Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFIsafe No Supporting protocol for SafetyBUS p No Supporting protocol for PROFINET IO No Supporting protocol for PROFINET CBA No Supporting protocol for EtherNet/IP No Supporting protocol for AS-Interface Safety at Work No Supporting protocol for KNX No Supporting protocol for INTERBUS-Safety No Supporting protocol for DeviceNet Safety No Supporting protocol for BACnet No Integrated breaking resistance No 4-quadrant operation possible No Application in industrial area permitted Yes Application in domestic- and commercial area permitted Yes With PC connection Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2190546 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2224882
