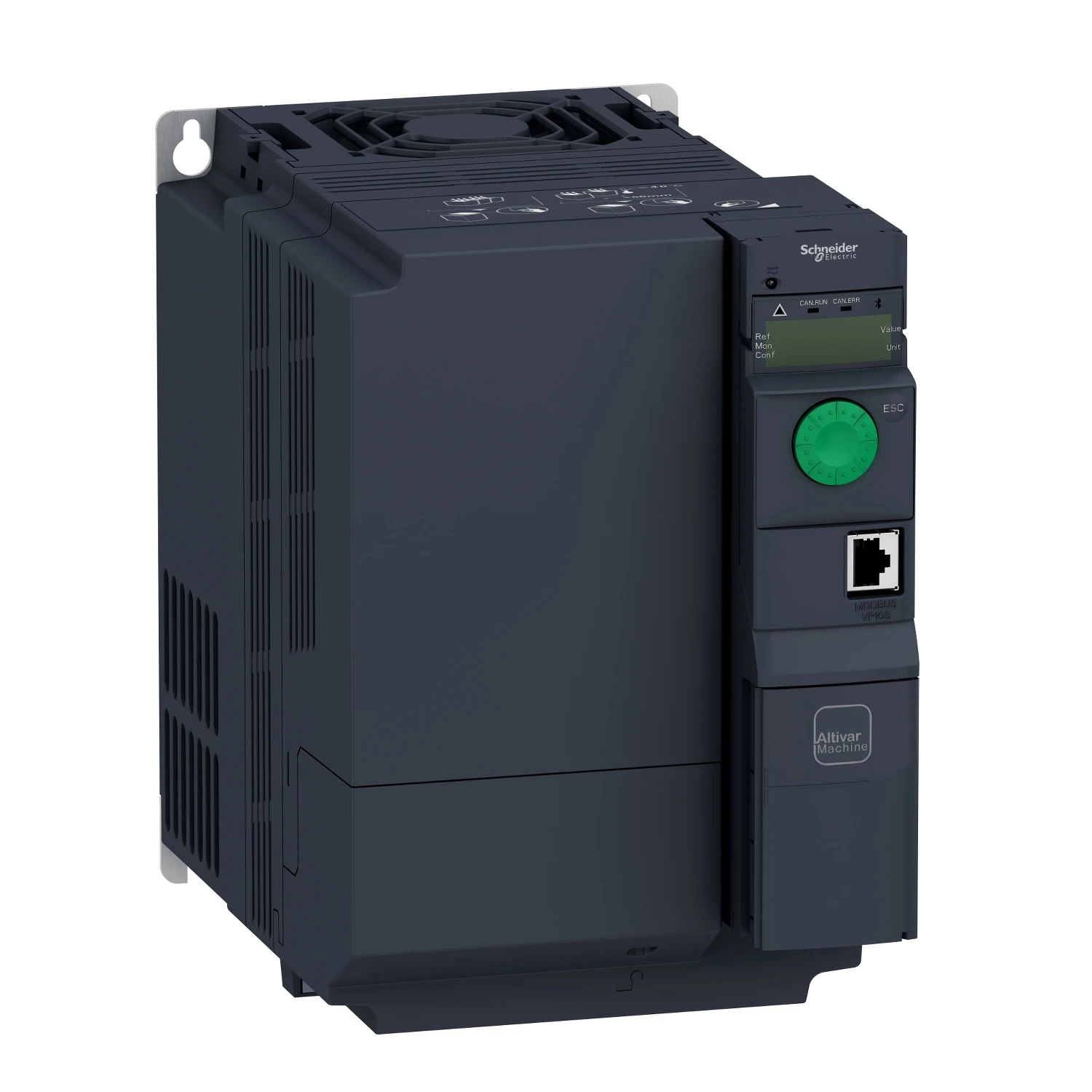

Drive Variable Speed 3 Phase ATV320 Book 5.5kW 400V
Drive Variable Speed 3 Phase ATV320 Book 5.5kW 400V
Drive Variable Speed 3 Phase ATV320 Book 5.5kW 400V - Image 2
Drive Variable Speed 3 Phase ATV320 Book 5.5kW 400V - Image 3

Drive Variable Speed 3 Phase ATV320 Book 5.5kW 400V

£1,610.12 Incl. VAT

Variable speed drive ATV320, 5,5kW, 380…500V, 3 phase, book. range of product: Altivar Machine ATV320 – product or component type: variable speed drive – device short name: ATV320 – format of the drive: book – product destination: asynchronous motors, synchronous motors – EMC filter: Class C2 EMC filter integrated – type of cooling: fan – network number of phases: 3 phases – line current: 15.2 A at 500 V for heavy duty, 19.8 A at 380 V for heavy duty – prospective line Isc: 22 kA – asynchronous motor control profile: flux vector control without sensor – Energy Saving, flux vector control without sensor, standard, voltage/frequency ratio – Energy Saving, quadratic U/f, voltage/frequency ratio, 2 points, voltage/frequency ratio, 5 points – speed drive output frequency: 0.1…599 Hz – nominal switching frequency: 4 kHz – switching frequency: 2…16 kHz adjustable, 4…16 kHz with current derating – safety function: GDL (guard door locking), SLS (safe limited speed), SMS (safe maximum speed), SS1 (safe stop 1), STO (safe torque off) SIL 3 – communication port protocol: CANopen, Modbus – option card: communication module: CANopen daisy chain RJ45, communication module: CANopen open style terminal block, communication module: CANopen SUB-D 9, communication module: DeviceNet, communication module: EtherCAT RJ45, communication module: Ethernet Powerlink, communication module: Ethernet/IP, communication module: Profibus DP V1, communication module: Profinet. · · · This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. · · Its book form factor allows for a simple and compact installation in your automation cabinets. · · It works at a rated power up to 5.5kW / 7.5hp and a rated voltage from 380V to 500V AC. · · Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. · · It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ATV320U55N4B Categories: , , Brand: Part Number: 2500893250

Description

Technical Specifications  Technical Specifications Frequency converter =< 1 kV Width 150.00 mm Height 232.00 mm Depth 232.00 mm Number of digital inputs 6.00 Number of digital outputs 1.00 Number of HW-interfaces industrial Ethernet 0.00 Max. output at quadratic load at rated output voltage 5.50 kW Max. output frequency 599.00 Hz Number of HW-interfaces PROFINET 0.00 Number of analogue outputs 1.00 Number of HW-interfaces RS-232 0.00 Number of analogue inputs 3.00 Max. output voltage 500.00 V Max. output at linear load at rated output voltage 5.50 kW Relative symmetric net frequency tolerance 5.00 % Nominal output current I2N 14.30 A Relative symmetric net voltage tolerance 10.00 % Number of HW-interfaces RS-422 0.00 Number of HW-interfaces serial TTY 0.00 Number of HW-interfaces USB 0.00 Number of HW-interfaces parallel 0.00 Number of HW-interfaces RS-485 1.00 Number of HW-interfaces other 1.00 Mains voltage 380.00 – 500.00 V With control unit Yes Supporting protocol for CAN Yes Supporting protocol for AS-Interface Safety at Work No Supporting protocol for DeviceNet Safety No Supporting protocol for INTERBUS-Safety No Supporting protocol for LON No Supporting protocol for TCP/IP Yes Supporting protocol for INTERBUS No Supporting protocol for PROFIBUS Yes Supporting protocol for Foundation Fieldbus No Supporting protocol for PROFINET CBA No Supporting protocol for other bus systems Yes Supporting protocol for DeviceNet Yes With optical interface No Supporting protocol for MODBUS Yes Supporting protocol for SERCOS No Supporting protocol for SUCONET No Supporting protocol for Data-Highway No 4-quadrant operation possible Yes With PC connection Yes Application in industrial area permitted Yes Integrated breaking resistance Yes Supporting protocol for EtherNet/IP Yes Supporting protocol for KNX No Supporting protocol for ASI No Supporting protocol for BACnet No Supporting protocol for PROFINET IO Yes Supporting protocol for SafetyBUS p No Supporting protocol for PROFIsafe No Application in domestic- and commercial area permitted No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2188811 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2208324
