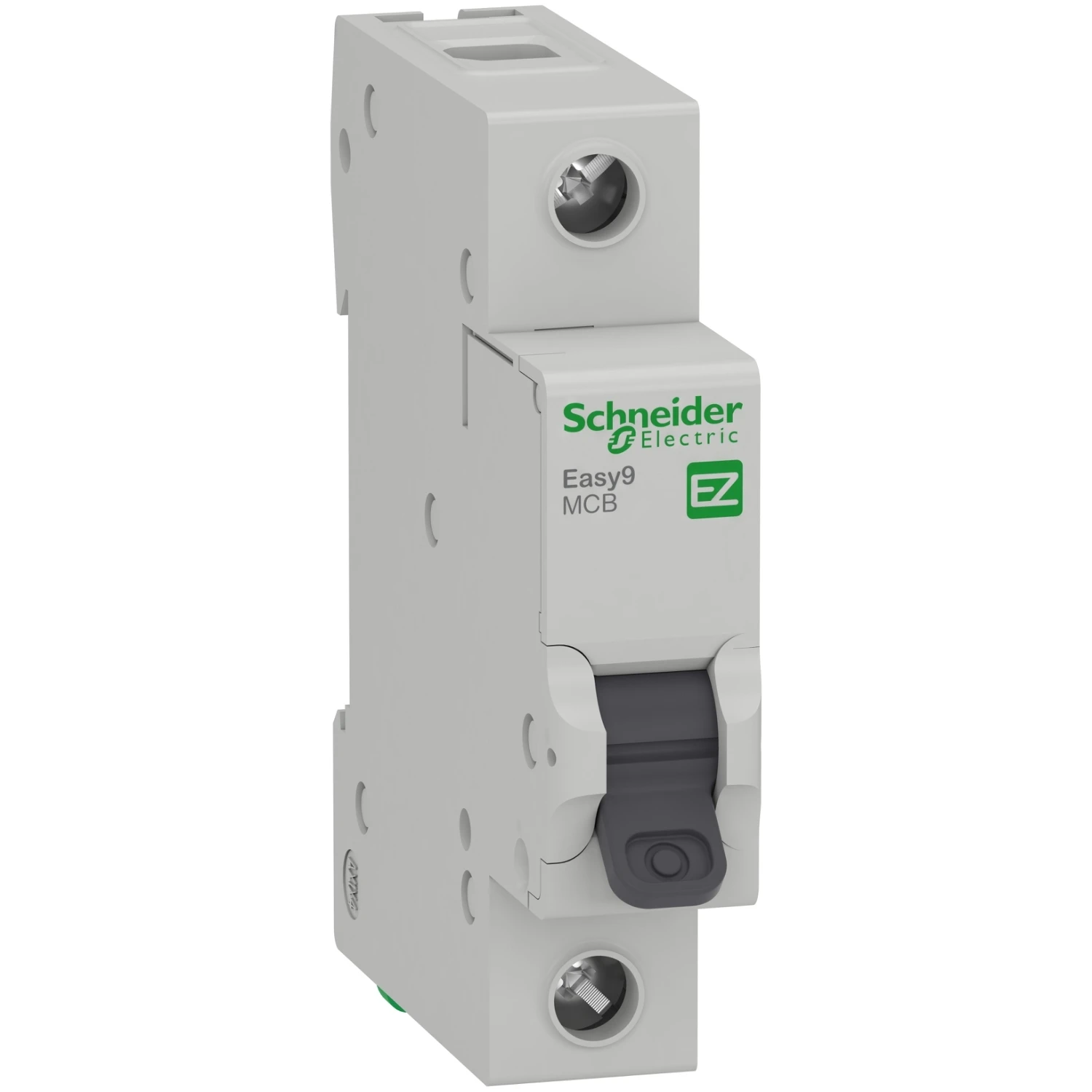

Easy9 16A 1-Pole Curve-C MCB 6kA 18 x 82 x 72mm
Easy9 16A 1-Pole Curve-C MCB 6kA 18 x 82 x 72mm
Easy9 16A 1-Pole Curve-C MCB 6kA 18 x 82 x 72mm - Image 2
Easy9 16A 1-Pole Curve-C MCB 6kA 18 x 82 x 72mm - Image 3

Easy9 16A 1-Pole Curve-C MCB 6kA 18 x 82 x 72mm

£4.43 Incl. VAT

The Schneider Electric EZ9F66116 is a single pole, 16 amp C curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units · · · Protection of cable from overload · · C Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · Trip unit technology Thermal-magnetic · · Manufactured and tested to BS EN 60898-1 · · Ambient air temperature for operation -5 to 60 C

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9F66116 Categories: , , Brand: Part Number: 2500605649

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 16.00 A Recess depth 45.00 mm Tripping characteristic (type/curve) C Current limiting class 3.00 Pollution degree 2.00 Number of protected poles 1.00 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6.00 kA Rated voltage 230.00 V Width in number of modular spacings 1.00 Rated insulation voltage Ui 500.00 V Number of poles (total) 1.00 Rated impulse-withstand voltage (Uimp) 4.00 kV Frequency 50.00 – 60.00 Hz Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating 5.00 – 60.00 °C Suitable for flush-mounted installation No Additional equipment possible No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
