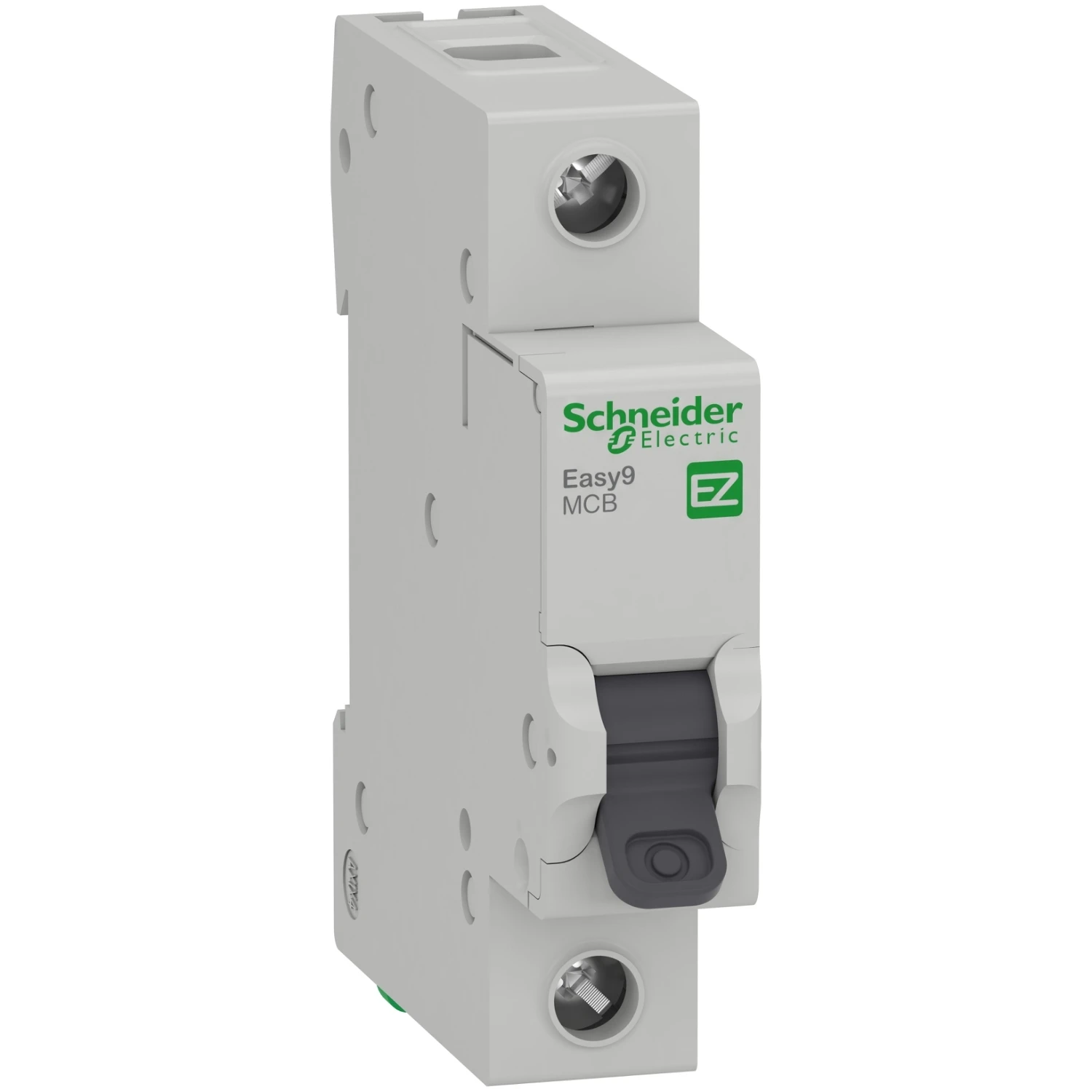

Schneider Electric Easy9 Miniature Circuit Breaker-1 Pole 32A C-Curve 6000A 230V
£6.07 Incl. VAT
The Schneider Electric EZ9F66132 is a single pole, 32 amp C curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units. · · · Protection of cable from overload · · C Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · Trip unit technology Thermal-magnetic · · Manufactured and tested to BS EN 60898-1 · · Ambient air temperature for operation -5 to 60 C
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Tripping characteristic (type/curve) C Rated insulation voltage Ui 500.00 V Pollution degree 2.00 Number of protected poles 1.00 Number of poles (total) 1.00 Current limiting class 3.00 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6.00 kA Rated impulse-withstand voltage (Uimp) 4.00 kV Width in number of modular spacings 2.00 Rated voltage 230.00 V Recess depth 45.00 mm Rated current 32.00 A Connectable conductor cross section solid-core 1.00 – 35.00 mm² Frequency 50.00 – 60.00 Hz Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Ambient temperature during operating 5.00 – 60.00 °C Additional equipment possible No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
