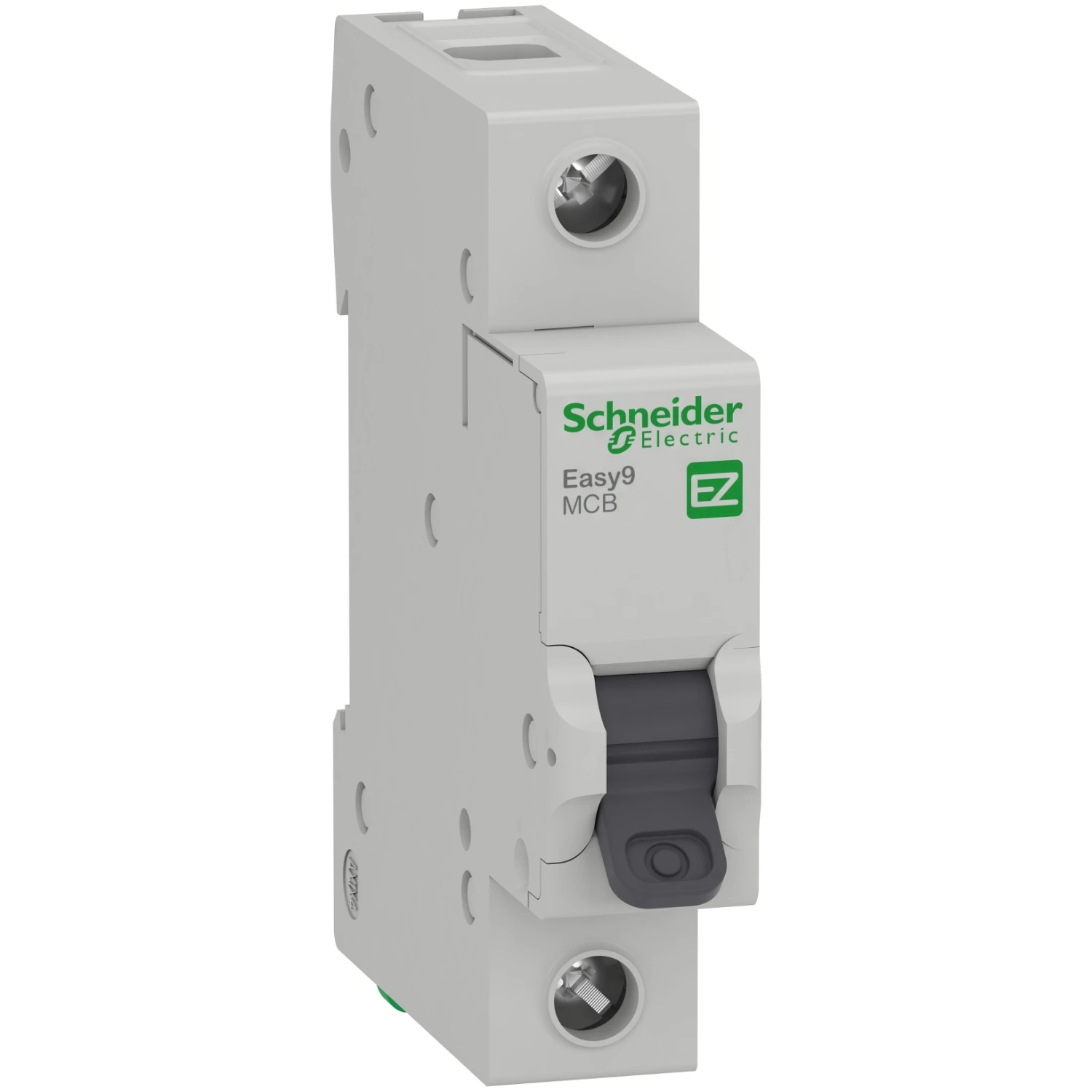

Easy9 MCB 1 Pole 40A C-Curve 6000A 230V
Easy9 MCB 1 Pole 40A C-Curve 6000A 230V
Easy9 MCB 1 Pole 40A C-Curve 6000A 230V - Image 2
Easy9 MCB 1 Pole 40A C-Curve 6000A 230V - Image 3

Easy9 MCB 1 Pole 40A C-Curve 6000A 230V

£4.91 Incl. VAT

The Schneider Electric EZ9F66140 is a single pole, 40 amp C curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units. · · · Protection of cable from overload · · C Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · Trip unit technology Thermal-magnetic · · Manufactured and tested to BS EN 60898-1 · · Ambient air temperature for operation -5 to 60 C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9F66140 Categories: , , Brand: Part Number: 2500605652

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 40 A Recess depth 45 mm Rated voltage 230 V Tripping characteristic (type/curve) C Number of protected poles 1 Current limiting class 3 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6 kA Rated insulation voltage Ui 500 V Number of poles (total) 1 Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 2 Pollution degree 2 Frequency 50 – 60 Hz Connectable conductor cross section solid-core 1 – 35 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating 5 – 60 °C Additional equipment possible No Suitable for flush-mounted installation No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
