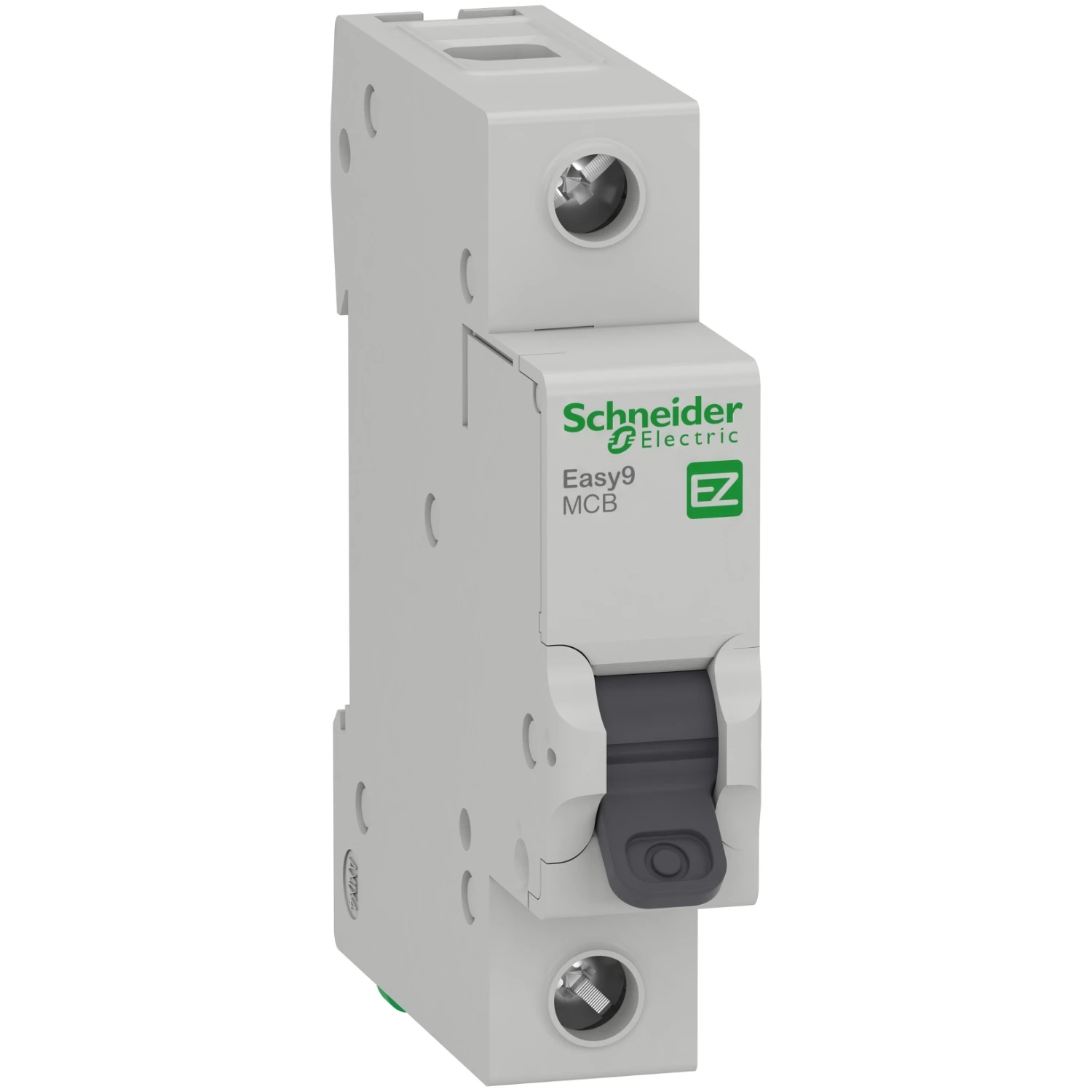

Easy9 – MCB Miniature Circuit Breaker, Single Pole, Type B, 6kA Breaking Capacity, 50A, 230V,
£4.85 Incl. VAT
The Schneider Electric EZ9F16150 is a single pole, 50 amp b curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units. · · · Protection of cable from overload · · B Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · Trip unit technology Thermal-magnetic · · Manufactured and tested to BS EN 60898-1 · · Ambient air temperature for operation -5 to 60 C
13 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Miniature circuit breaker (MCB) Rated current 50.00 A Recess depth 45.00 mm Tripping characteristic (type/curve) B Rated insulation voltage Ui 500.00 V Number of poles (total) 1.00 Rated voltage 230.00 V Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6.00 kA Number of protected poles 1.00 Current limiting class 3.00 Pollution degree 2.00 Concurrently switching N-neutral No Ambient temperature during operating 5.00 – 60.00 °C Connectable conductor cross section multi-wired 1.00 – 25.00 mm² Connectable conductor cross section solid-core 1.00 – 35.00 mm² Frequency 50.00 – 60.00 Hz Rated impulse-withstand voltage (Uimp) 4.00 kV Width in number of modular spacings 1.00 Additional equipment possible No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
