Easy9 - MCB Single Pole, Type B, 6kA Breaking Capacity, 25A, 230V,
Easy9 - MCB Single Pole, Type B, 6kA Breaking Capacity, 25A, 230V,
Easy9 - MCB Single Pole, Type B, 6kA Breaking Capacity, 25A, 230V, - Image 2

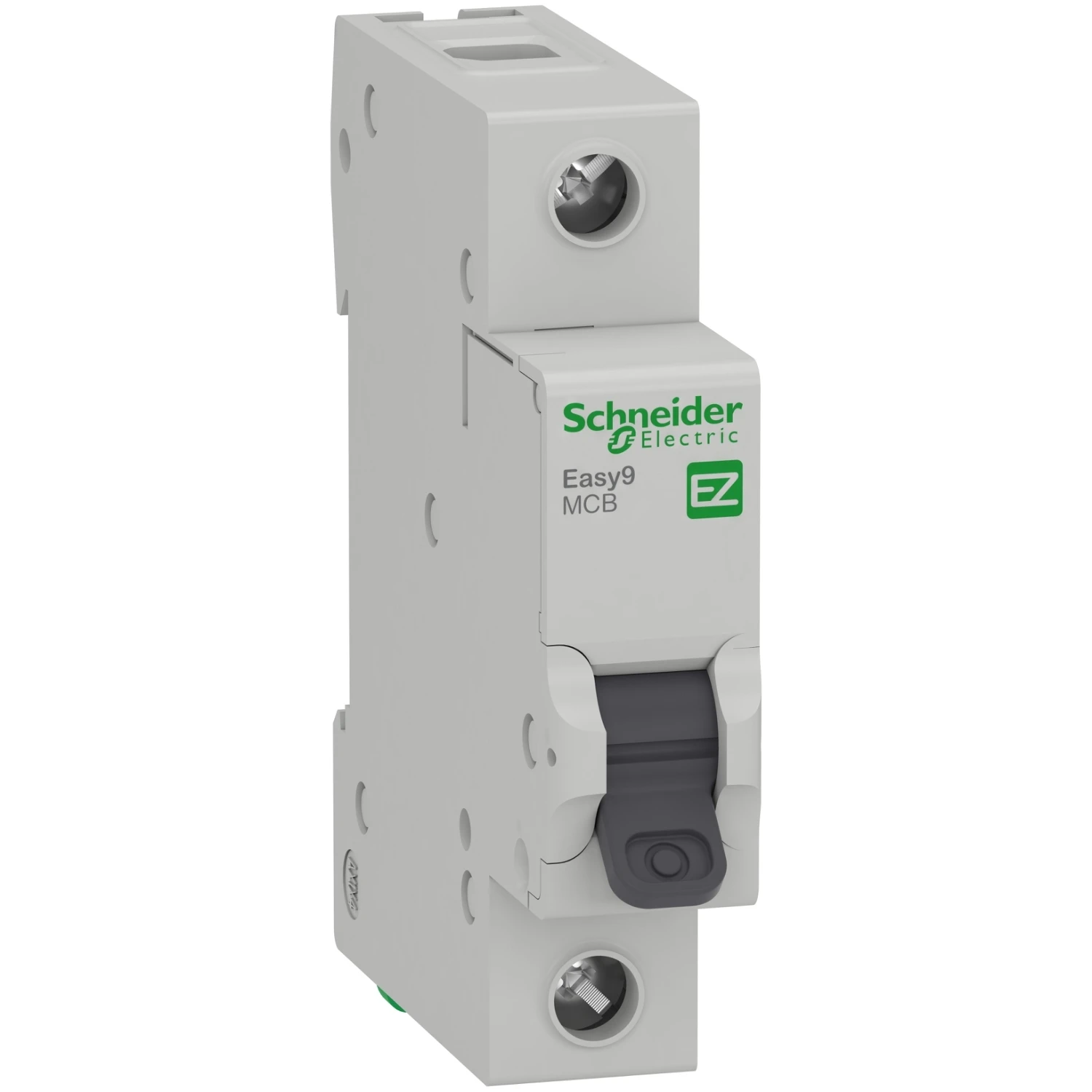

Easy9 - MCB Single Pole, Type B, 6kA Breaking Capacity, 25A, 230V, - Image 3

Easy9 – MCB Single Pole, Type B, 6kA Breaking Capacity, 25A, 230V,

£4.40 Incl. VAT

The Schneider Electric EZ9F16125 is a single pole, 25 amp b curve minature circuit breaker. The Easy9 range of minature circuit breakers are rated at 6kA and will fit any Schneider Electric Easy9 consumer units. · · · Protection of cable from overload · · B Curve · · 6kA Breaking Capacity · · Fault tripping indication on front panel · · Electrical feeding by the top and bottom · · IP20 · · BSEN60898-1 Compliant · · Trip unit technology Thermal-magnetic · · Manufactured and tested to BS EN 60898-1 · · Ambient air temperature for operation -5 to 60 C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9F16125 Categories: , , Brand: Part Number: 2500605643

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated voltage 230.00 V Tripping characteristic (type/curve) B Rated short-circuit breaking capacity Icn EN 60898 at 230 V 6.00 kA Current limiting class 3.00 Pollution degree 2.00 Rated insulation voltage Ui 500.00 V Number of protected poles 1.00 Width in number of modular spacings 1.00 Number of poles (total) 1.00 Rated impulse-withstand voltage (Uimp) 4.00 kV Suitable for flush-mounted installation No Ambient temperature during operating 5.00 – 60.00 °C Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Connectable conductor cross section solid-core 1.00 – 25.00 mm² Frequency 50.00 – 60.00 Hz Recess depth 45.00 mm Rated current 25.00 A Additional equipment possible No Concurrently switching N-neutral No · Technical Data Sheet – Click to Download
