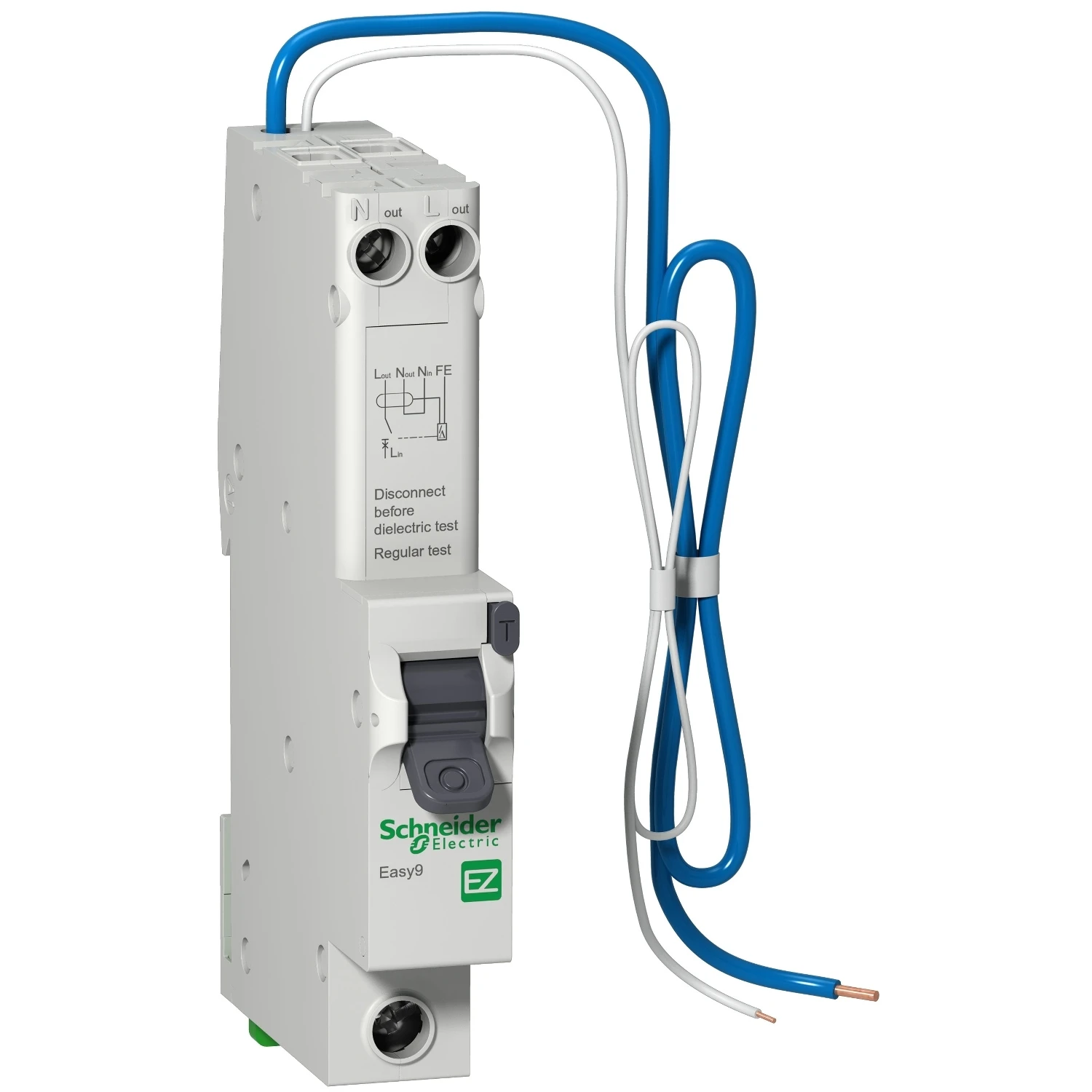

Schneider Electric Easy9 – RCBO Residual Circuit Breaker with Overcurrent Protection – Single Pole 25A 30mA – Type A B Curve
£13.15 Incl. VAT
Schneider Electric single pole 240v 25amp 30ma residual circuit breaker with overcurrent protection, din rail mounted EZ9D16825 · · · Type A, 30mA Earth leakage protection · · B Curve · · 6kA Breaking Capacity · · Provides protection from short circuits, the cables from overloads and persons from electric shocks by direct contact · · Operating test button (T) on front panel · · Fault tripping indication on front panel · · Cable length 1000mm · · IP20 · · BSEN61009-1 Compliant · · Operating temperature -15C to +60C
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Frequency 50 Hz Mounting method DIN rail Degree of protection (IP rating) IP20 Leakage current type A Voltage type AC Over voltage category 4 Rated impulse-withstand voltage (Uimp) 4 kV Rated current 32 A Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Recess depth 75 mm Rated voltage 230 V Number of poles (total) 2 Width in number of modular spacings 1 Rated short-circuit breaking capacity IEC 60947-2 6 kA Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Rated insulation voltage Ui 500 V Connectable conductor cross section solid-core 1 mm² Connectable conductor cross section multi-wired 1 mm² Ambient temperature during operating 15 °C With interlocking device No Concurrently switching N-neutral No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
