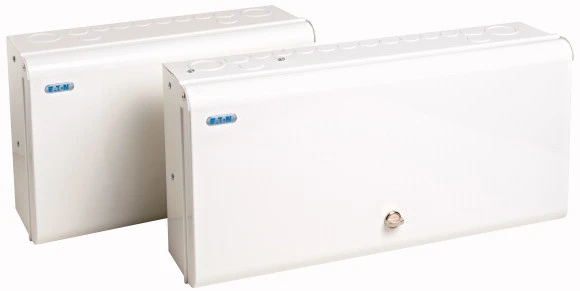

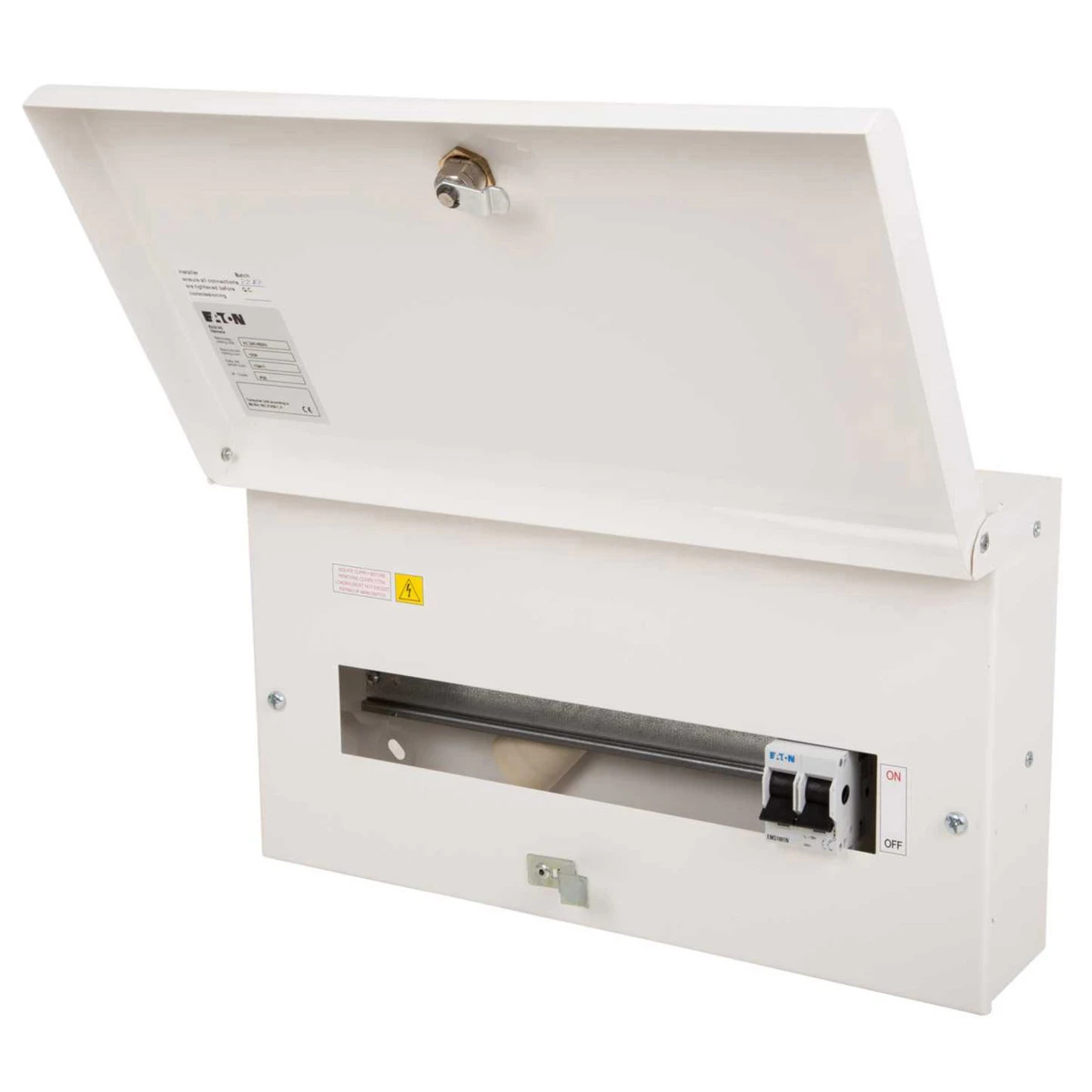

Eaton 14-Way Main Switch Consumer Unit 394 x 223 x 113mm White
Eaton 14-Way Main Switch Consumer Unit 394 x 223 x 113mm White
Eaton 14-Way Main Switch Consumer Unit 394 x 223 x 113mm White - Image 2
Eaton 14-Way Main Switch Consumer Unit 394 x 223 x 113mm White - Image 3

Eaton 14-Way Main Switch Consumer Unit 394 x 223 x 113mm White

£122.21 Incl. VAT

Sturdy steel enclosure with ample cable entry knockouts to accommodate cable entry from top, bottom or rear face of the enclosure. · · · Comes with multiple large apertures in rear face of enclosure · · RAL 9010 (Pure white) · · Allow flexible cable entry from the rear

12 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAS14S EATON DUPE Categories: , , Brand: Part Number: 2500706742

Description

Technical Specifications  Technical Specifications Small distribution board Housing material Steel Cover model Closed Type of covering Door Mounting method Surface mounted Type of door Single Degree of protection (IP rating) IP30 Width 390 mm Height 224 mm Depth 140 mm Internal depth 80 mm Number of rows 1 Width in number of modular spacings 16 Transparent cover/door No UV resistant No With mounting plate No Recess depth 113 mm RAL number 9016 Recess width 390 mm Recess height 224 mm EMC-version Yes With lock No Extension possible Yes Neutral terminal block Yes Earthing terminal block Yes Signal passing door No With DIN-rail Yes · Technical Data Sheet – Click to Download
