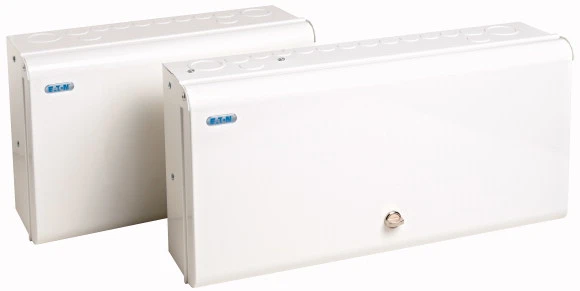

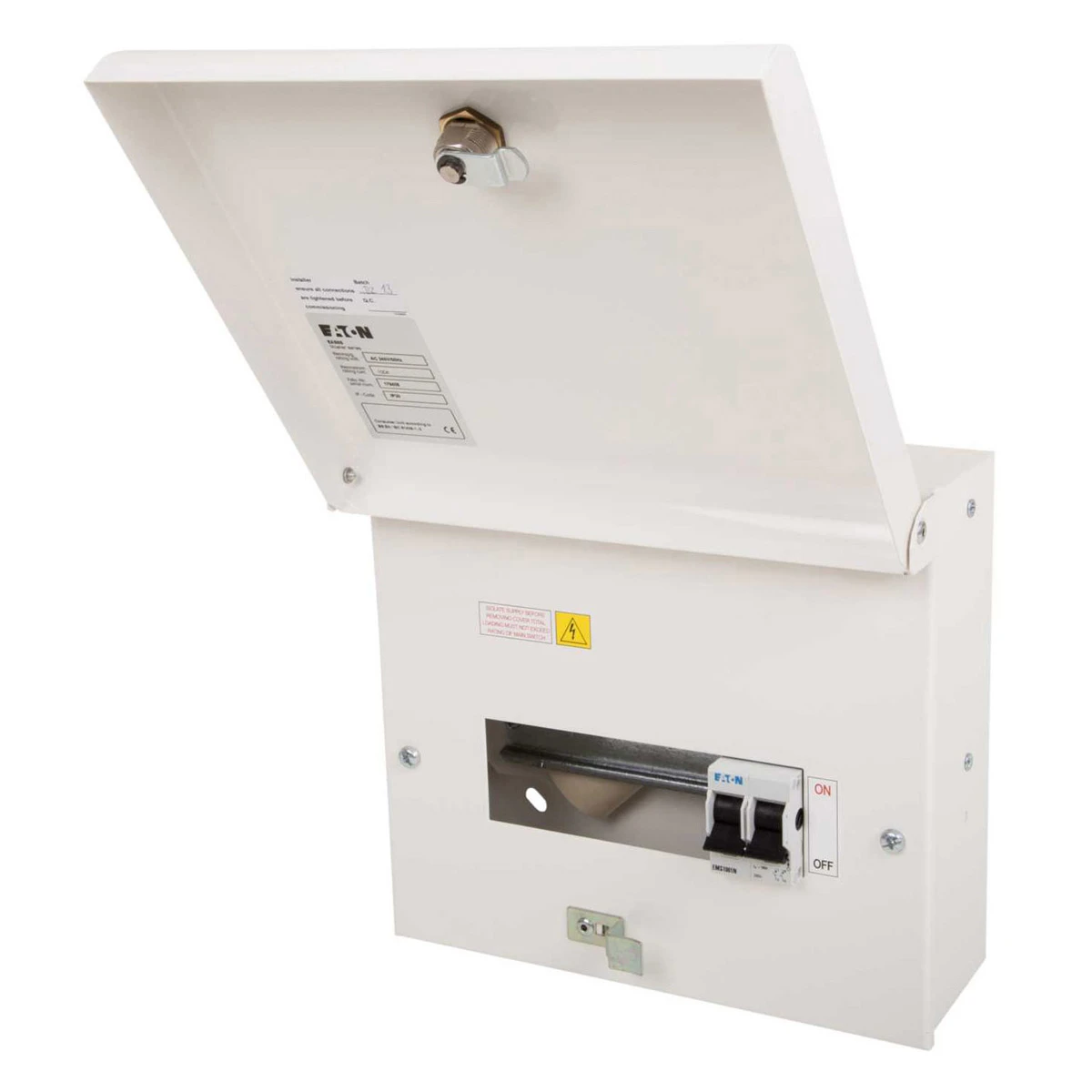

Eaton 6-Way Main Switch Consumer Unit 252 x 223 x 113mm White
Eaton 6-Way Main Switch Consumer Unit 252 x 223 x 113mm White
Eaton 6-Way Main Switch Consumer Unit 252 x 223 x 113mm White - Image 2
Eaton 6-Way Main Switch Consumer Unit 252 x 223 x 113mm White - Image 3

Eaton 6-Way Main Switch Consumer Unit 252 x 223 x 113mm White

£90.36 Incl. VAT

Isolator controlled consumer unit with sturdy steel enclosure and ample cable entry knockouts to accommodate cable entry from top, bottom or rear face of the enclosure. Comes in polyester powder coat paint finish which complies with industry standards for low smoke density, flame propagation and toxic fume emission · · · Fitted with up to 6 x RCBOs · · Isolator controlled full metal clad surface mounting consumer unit · · Complies with BSEN 61439-3 and BS7671 Amendment · · Allows flexible cable entry from the rear

5 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAS6S EATON DUPE Categories: , , Brand: Part Number: 2500706741

Description

Technical Specifications  Technical Specifications Small distribution board Type of covering Door Housing material Steel Cover model Closed Type of door Single Mounting method Surface mounted Degree of protection (IP rating) IP30 Internal depth 80 mm Recess depth 113 mm Recess height 224 mm Number of rows 1 RAL number 9016 Depth 140 mm Height 224 mm Width 247 mm Width in number of modular spacings 8 Recess width 247 mm With mounting plate No UV resistant No Transparent cover/door No Extension possible Yes EMC-version Yes With lock No With DIN-rail Yes Earthing terminal block Yes Neutral terminal block Yes Signal passing door No · Technical Data Sheet – Click to Download
