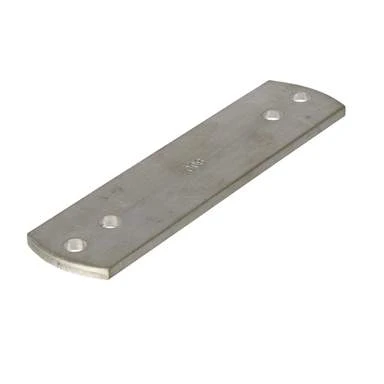

Eaton 800A N LINK GLASGOW (MEM)

Description

Technical Specifications  Technical Specifications End switch Explosion safety category for gas None Type of interface for safety communication None Explosion safety category for dust None Interface type None Housing material Plastic Switching function Slow-action switch Type of control element Plunger Construction type housing Cuboid Type of electric connection Cable entry metrical Alignment of the control element Roller cam straight Degree of protection (IP rating) IP65 Rated operation current Ie at AC-15, 230 V 6 A Width sensor 51 mm Rated operation current Ie at DC-13, 230 V 0.5 A Number of safety auxiliary contacts 0 Rated operation current Ie at AC-15, 125 V 0 A Length of sensor 0 mm Diameter sensor 0 mm Height of sensor 51 mm Number of contacts as change-over contact 0 Number of contacts as normally open contact 2 Rated operation current Ie at DC-13, 125 V 1 A Rated operation current Ie at AC-15, 24 V 10 A Rated operation current Ie at DC-13, 24 V 10 A Number of contacts as normally closed contact 0 Ambient temperature during operating -25 – 70 °C Suitable for safety functions No Switching function latching No With status indication No Forced opening No Output electronic No
