Eaton Busbar Connection Set
Eaton Busbar Connection Set
Eaton Busbar Connection Set - Image 2

Eaton Busbar Connection Set

£64.85 Incl. VAT

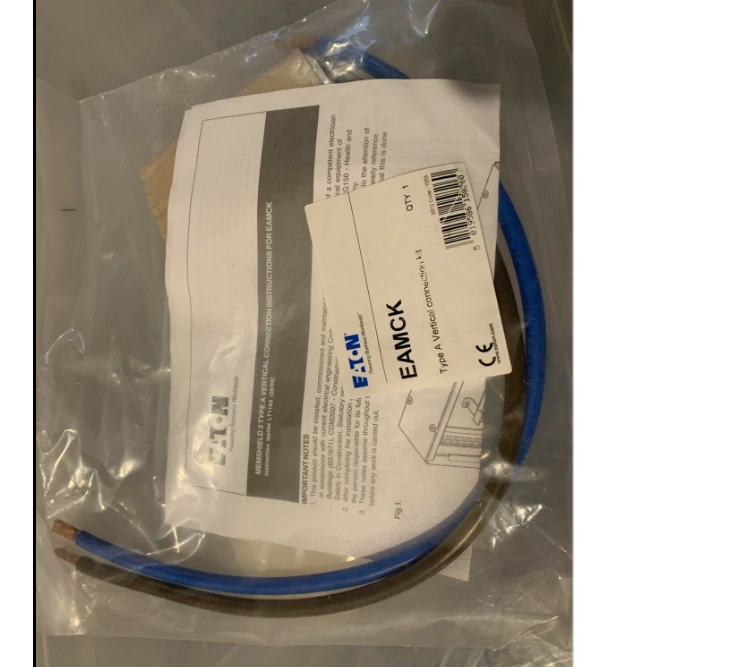

The Eaton is a Memshield 3 vertical coupling kit. It is used to connect two Single Pole and Neutral, Type A Distribution Boards, with a maximum rating of 125A. · · · For connecting 2 SPN Distribution boards · · 125A maximum total load · · Complies BS EN 60439-3 standards

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAMCK Categories: , Brand: Product Code: 2500329302

Description

Technical Specifications  Technical Specifications Small distribution board Type of covering None Housing material Steel Cover model Closed Mounting method Surface mounted Degree of protection (IP rating) IP3X Width 325 mm Height 35 mm RAL number 7004 Depth 300 mm Internal depth – mm Recess depth 300 mm Number of rows 0 Recess width 325 mm Recess height 35 mm Width in number of modular spacings 0 Earthing terminal block Yes Neutral terminal block Yes Signal passing door No With lock No With DIN-rail No Extension possible Yes EMC-version Yes Transparent cover/door No With mounting plate No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
