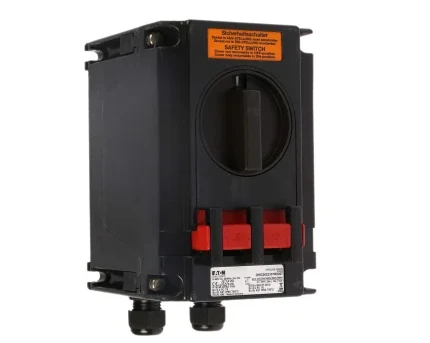

Eaton Cch 20A Switch

Description

Technical Specifications  Technical Specifications Switch disconnector / isolator Type of control element Turn button Colour control element Black Type of electrical connection of main circuit Screw connection Rated permanent current at AC-21, 400 V 20 A Device construction Complete device in housing Switching power at 400 V – kW Rated permanent current at AC-23, 400 V – A Degree of protection (IP), front side IP66 Max. rated operation voltage Ue AC 690 V Rated short-time withstand current lcw 1.7 kA Number of switches – Rated operation power at AC-23, 400 V 8 kW Conditioned rated short-circuit current Iq 35 kA Number of auxiliary contacts as change-over contact – Number of poles 4 Rated permanent current Iu 20 A Number of auxiliary contacts as normally closed contact – Number of auxiliary contacts as normally open contact 1 Voltage release optional No Rated operation power at AC-3, 400 V 8 kW Rated operating voltage 690 V Version as reversing switch No Version as maintenance-/service switch No Suitable for floor mounting No Suitable for front mounting 4-hole No Suitable for front mounting centre No Suitable for distribution board installation No Suitable for intermediate mounting No Motor drive optional No Interlockable No Motor drive integrated No Version as emergency stop installation No Version as main switch No Version as safety switch No
