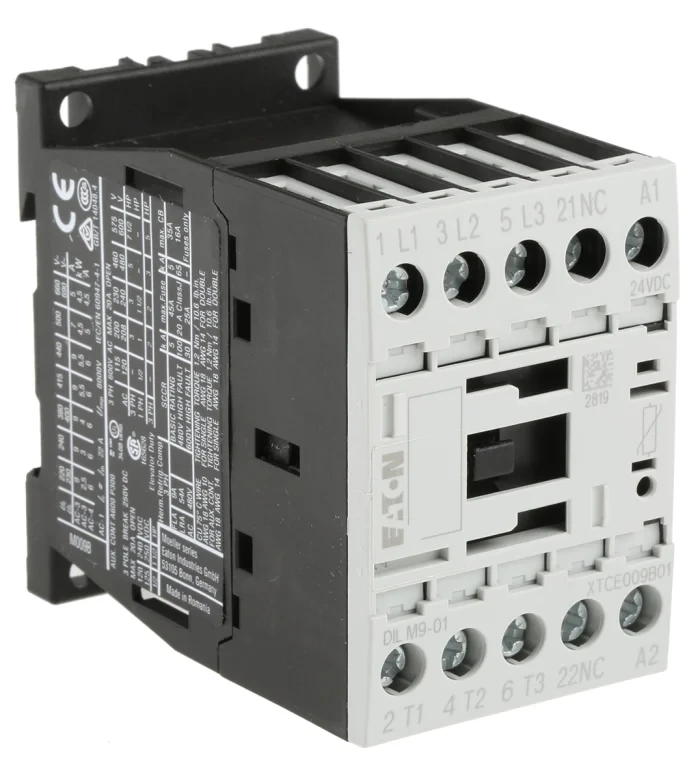

Eaton Contactor 3P 1 Break Screw Terminal 24V Dc

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating DC Type of electrical connection of main circuit Screw connection Rated operation power NEMA 3.7 kW Width 45 mm Rated operation power at AC-4, 400 V 2.5 kW Rated operation current Ie at AC-4, 400 V 6 A Rated operation current Ie at AC-3, 400 V 9 A Rated operation current Ie at AC-1, 400 V 22 A Number of auxiliary contacts as normally closed contact 1 Height 68 mm Rated operation power at AC-3, 400 V 4 kW Depth 75 mm Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally open contact 0 Rated control supply voltage at AC 50 Hz 0 – 0 V Rated control supply voltage at AC 60 Hz 0 – 0 V Rated control supply voltage at DC 24 – 24 V Operating voltage at AC 50 Hz 24 – 690 V Operating voltage at AC 60 Hz 24 – 690 V Modular version No
