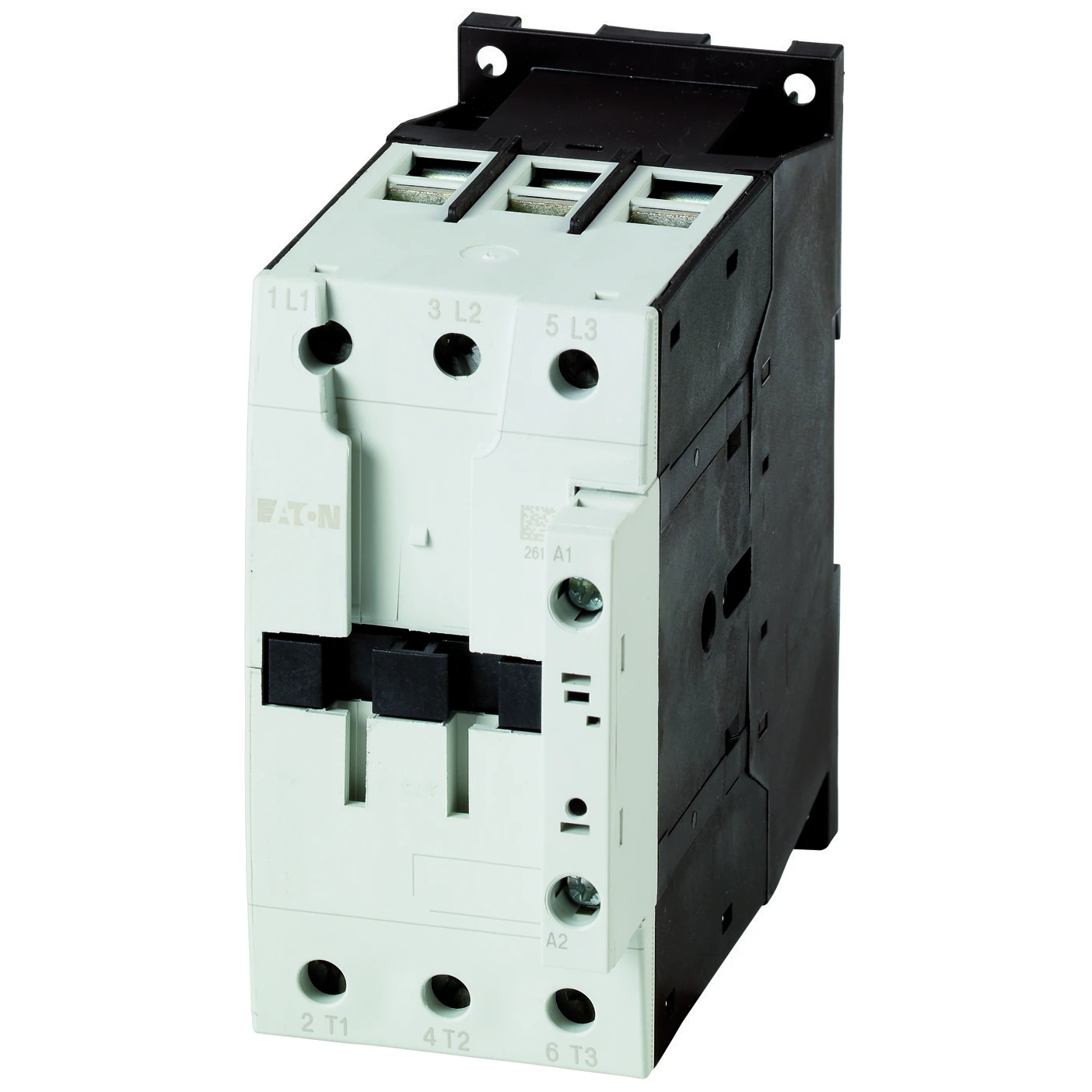

Eaton Contactor 3P Screw Terminal 230V 50/60Hz
Eaton Contactor 3P Screw Terminal 230V 50/60Hz
Eaton Contactor 3P Screw Terminal 230V 50/60Hz - Image 2

Eaton Contactor 3P Screw Terminal 230V 50/60Hz

£304.13 Incl. VAT

· · Up to 170 A · · Frame sizes: 45 mm for up to 32 A; 55 mm for up to 72 A; and 90 mm for up to 170 A · · Temperature range –25 °C to +60 °C · · Four-pole contactor up to 200 A · · Uniform accessories for three-pole and four-pole contactors · · Double box terminals for reliable wiring of different cross-sections

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: DILM50(230V50/60HZ) Categories: , , Brand: Product Code: 2500158364

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Screw connection Voltage type for actuating AC Width 55 mm Height 115 mm Number of normally closed contacts as main contact 0 Depth 132.1 mm Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 22 kW Number of auxiliary contacts as normally closed contact 0 Number of auxiliary contacts as normally open contact 0 Rated operation current Ie at AC-4, 400 V 21 A Rated operation power NEMA 29.8 kW Rated operation power at AC-4, 400 V 10 kW Rated operation current Ie at AC-1, 400 V 80 A Rated operation current Ie at AC-3, 400 V 50 A Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at AC 60 Hz 230 – 230 V Rated control supply voltage at DC 0 – 0 V Operating voltage at AC 50 Hz 230 – 690 V Operating voltage at AC 60 Hz 230 – 690 V Modular version No
