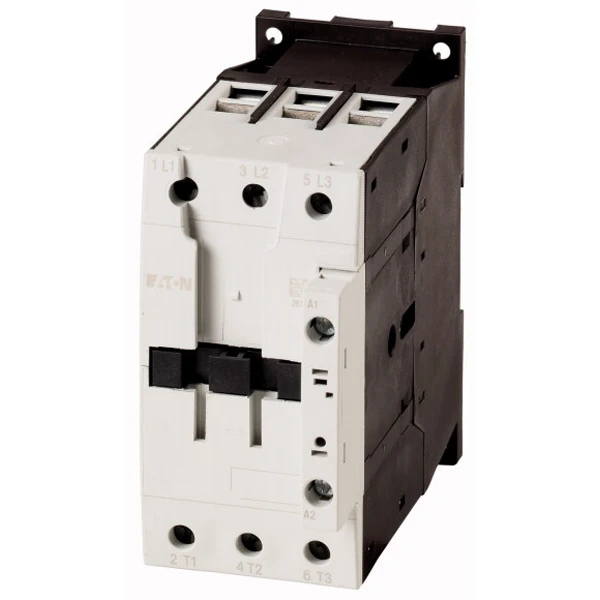

Eaton Contactor 3P Screw Terminal 230V 50Hz/240V 60Hz DILM50(230V50HZ240V60HZ)
Awaiting product image

Eaton Contactor 3P Screw Terminal 230V 50Hz/240V 60Hz DILM50(230V50HZ240V60HZ)

£254.36 Incl. VAT

Contactor, Application: Contactors for Motors, Contactors up to 170 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 50 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 – 60 Hz Open at 40 °C: Ith =Ie= 80 A, enclosed: Ith= 58 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 162 A, enclosed: Ith= 145 A, Max. rating for three-phase motors, 50 – 60 Hz AC-3 220 V 230 V: P= 15.5 kW, 380 V 400 V: P= 22 kW, 660 V 690 V: P= 30 kW, Max. rating for three-phase motors, 50 – 60 Hz AC-4 220 V 230 V: P= 6 kW, 380 V 400 V: P= 10 kW, 660 V 690 V: P= 14 kW, Can be combined with auxiliary contact: DILM150-XHI(V).., DILM1000-XHI(V).., Instructions: Contacts to EN 50?012., Voltage AC/DC: AC operation · · · Height: 115mm · · Range: xStart · · Width: 77mm · · AC3 Rating: 50A · · Coil voltage: 230V AC · · Weight: 900g · · AC1 Rating: 80A · · Depth: 147mm

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 277830 Categories: , , Brand: Product Code: 2500158365

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Type of electrical connection of main circuit Screw connection Voltage type for actuating AC Rated operation power at AC-3, 400 V 22 kW Number of main contacts as normally open contact 3 Number of normally closed contacts as main contact 0 Rated operation power NEMA 29.8 kW Number of auxiliary contacts as normally open contact 0 Rated operation power at AC-4, 400 V 10 kW Rated operation current Ie at AC-4, 400 V 21 A Rated operation current Ie at AC-3, 400 V 50 A Rated operation current Ie at AC-1, 400 V 80 A Number of auxiliary contacts as normally closed contact 0 Width 55 mm Height 115 mm Depth 132.1 mm Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at AC 60 Hz 240 – 240 V Rated control supply voltage at DC 0 – 0 V Operating voltage at AC 50 Hz 230 – 690 V Operating voltage at AC 60 Hz 230 – 690 V Modular version No
