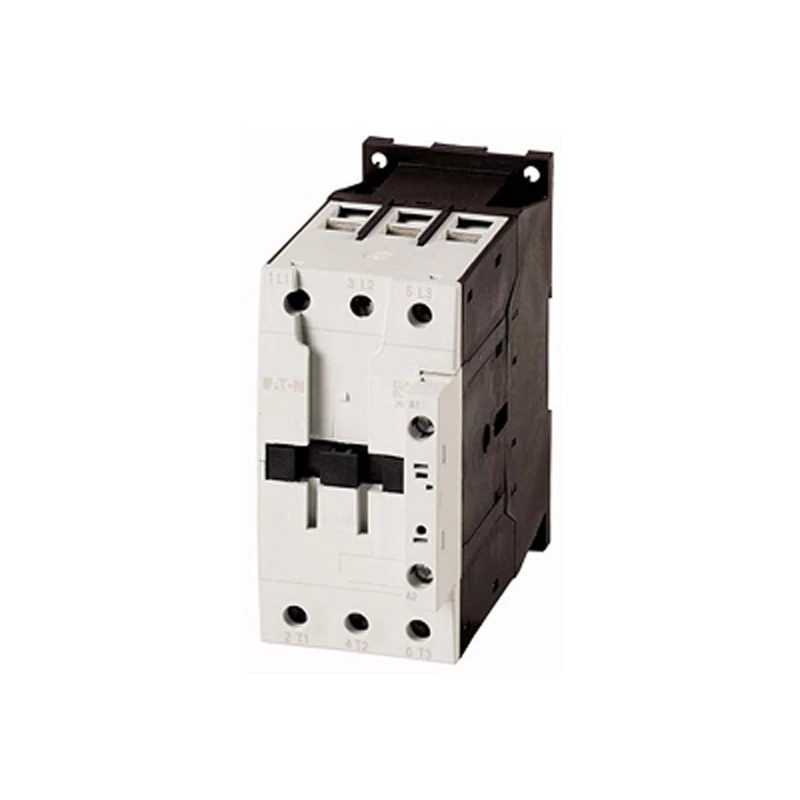

Eaton Contactor 3P Screw Terminal 230V 50Hz/240V 60Hz DILM95(230V50HZ240V60HZ)
Eaton Contactor 3P Screw Terminal 230V 50Hz/240V 60Hz DILM95(230V50HZ240V60HZ)
Eaton Contactor 3P Screw Terminal 230V 50Hz/240V 60Hz DILM95(230V50HZ240V60HZ) - Image 2

Eaton Contactor 3P Screw Terminal 230V 50Hz/240V 60Hz DILM95(230V50HZ240V60HZ)

£584.60 Incl. VAT

Contactor, Application: Contactors for Motors, Contactors up to 170 A, 3 pole, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running, AC-4: Normal AC induction motors: starting, plugging, reversing, inching, Connection technique: Screw terminals, Notes: Also suitable for motors with efficiency class IE3., IE3-ready devices are identified by the logo on their packaging., Number of poles: 3 pole, Rated operational current AC-3 380 V 400 V: Ie= 95 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 – 60 Hz Open at 40 °C: Ith =Ie= 130 A, enclosed: Ith= 100 A, Rated operational current AC-1 Conventional free air thermal current, 1 pole open: Ith= 275 A, enclosed: Ith= 250 A, Max. rating for three-phase motors, 50 – 60 Hz AC-3 220 V 230 V: P= 30 kW, 380 V 400 V: P= 45 kW, 660 V 690 V: P= 75 kW, Max. rating for three-phase motors, 50 – 60 Hz AC-4 220 V 230 V: P= 16 kW, 380 V 400 V: P= 26 kW, 660 V 690 V: P= 35 kW, Can be combined with auxiliary contact: DILM150-XHI(V).., DILM1000-XHI(V).., Instructions: Contacts to EN 50?012., Voltage AC/DC: AC operation · · · Range: xStart · · Coil voltage: 230V AC

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 239480 Categories: , , , , , Brand: Product Code: 2500183912

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating AC Type of electrical connection of main circuit Screw connection Rated operation power NEMA 55 kW Width 90 mm Rated operation current Ie at AC-4, 400 V 50 A Rated operation power at AC-4, 400 V 26 kW Rated operation current Ie at AC-1, 400 V 130 A Rated operation current Ie at AC-3, 400 V 95 A Number of auxiliary contacts as normally closed contact 0 Depth 160 mm Height 170 mm Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 45 kW Number of normally closed contacts as main contact 0 Number of auxiliary contacts as normally open contact 0 Rated control supply voltage at AC 60 Hz 240 – 240 V Rated control supply voltage at AC 50 Hz 230 – 230 V Rated control supply voltage at DC 0 – 0 V Operating voltage at AC 50 Hz 230 – 690 V Operating voltage at AC 60 Hz 230 – 690 V Modular version No
