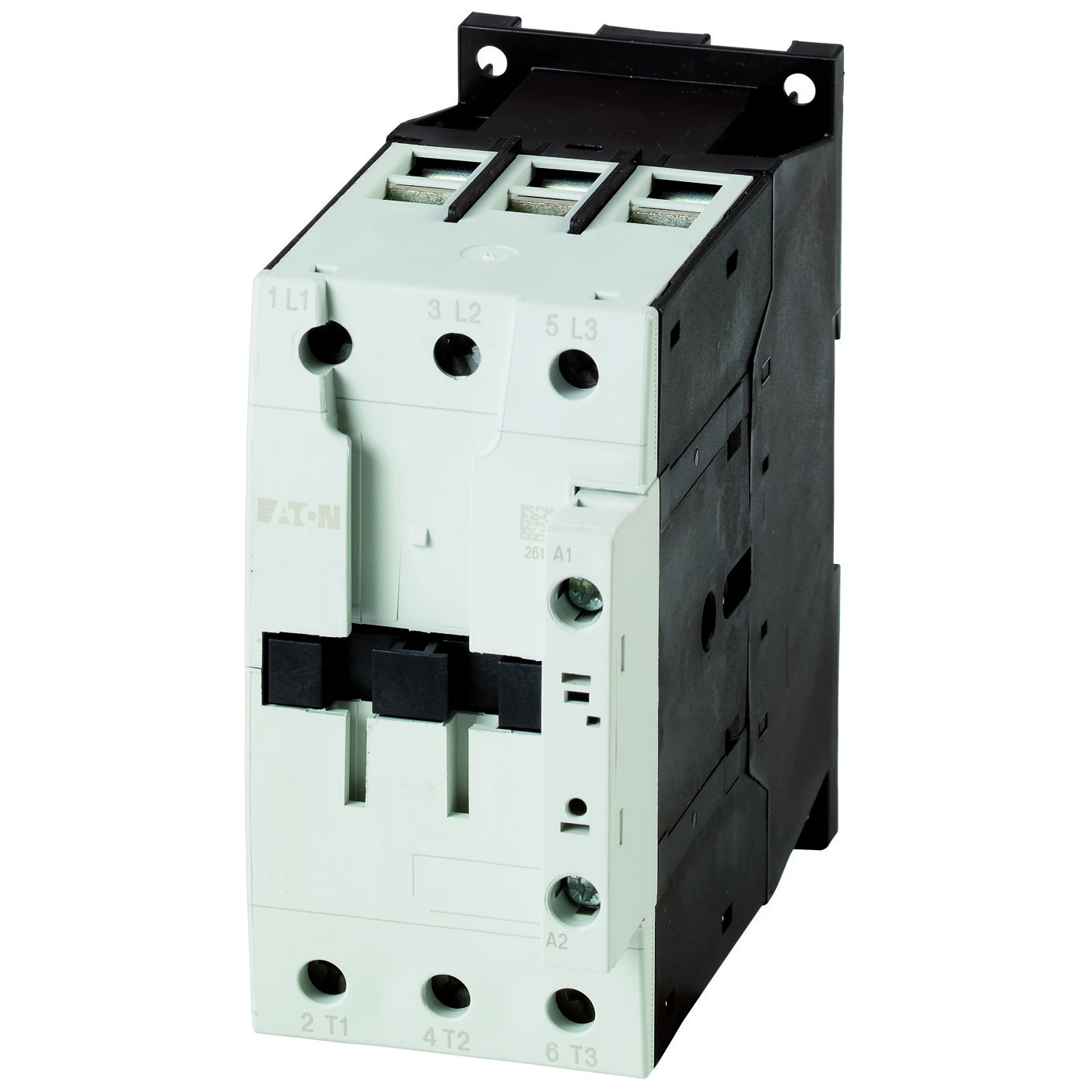

Eaton Contactor 3P Screw Terminal 24-27V Dc

Description

Technical Specifications  Technical Specifications Power contactor, AC switching Voltage type for actuating DC Type of electrical connection of main circuit Screw connection Number of main contacts as normally open contact 3 Rated operation power at AC-3, 400 V 30 kW Number of auxiliary contacts as normally open contact 0 Number of normally closed contacts as main contact 0 Rated operation current Ie at AC-4, 400 V 25 A Rated operation power NEMA 37 kW Rated operation current Ie at AC-1, 400 V 98 A Rated operation power at AC-4, 400 V 12 kW Number of auxiliary contacts as normally closed contact 0 Rated operation current Ie at AC-3, 400 V 65 A Height 115 mm Width 55 mm Depth 132.1 mm Rated control supply voltage at AC 50 Hz 0 – 0 V Rated control supply voltage at AC 60 Hz 0 – 0 V Rated control supply voltage at DC 24 – 27 V Operating voltage at AC 50 Hz 230 – 690 V Operating voltage at AC 60 Hz 230 – 690 V Modular version No
