Eaton Contactor Modular 4No 25A 230V Ac
Awaiting product image

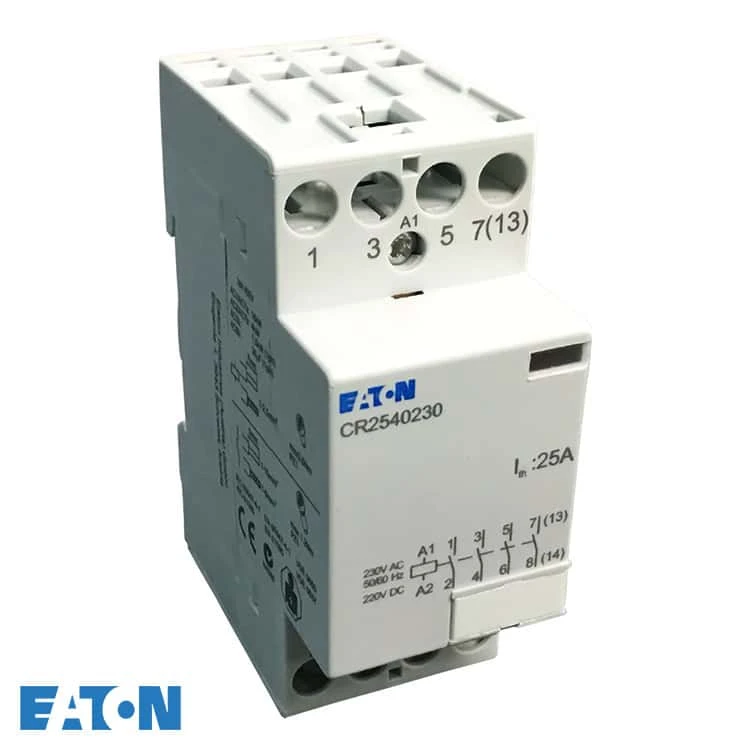

Eaton Contactor Modular 4No 25A 230V Ac

£75.35 Incl. VAT

Installation contactor, rated control circuit voltage 230V AC/DC, rated operational current at AC1 25A, function: 4NO, details according to IEC/EN 61095, IEC/EN 60947-4-1, standard front dimension 45 mm, mounting width 2 MU, top-hat rail mounting · · · Complete and configurable enclosures MCBs, MCCBs, ACBs

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: CR2540230 Categories: , , Brand: Product Code: 2500205045

Description

Technical Specifications  Technical Specifications Contactor for distribution board installation Utilization category according to EN IEC 60947-4-1 AC-1 Degree of protection (IP rating) IP20 Voltage type (excitation voltage) AC/DC Voltage type (operating voltage) AC/DC Number of contacts as normally open contact 4 Max. load fluorescent lamp (Duo circuit) 1440 VA Max. load fluorescent lamp 1200 VA Max. load fluorescent lamp (parallel compensated) 400 VA Rated operation current 25 A Number of contacts as normally closed contact 0 Width in number of modular spacings 2 Max. incandescent lamp load 2200 W Rated operating voltage 400 – 400 V Recess depth 60 mm Rated excitation voltage 195.5 – 253 V Additional equipment possible Yes With day/night function No Slider for hand switch No Hum-free Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
