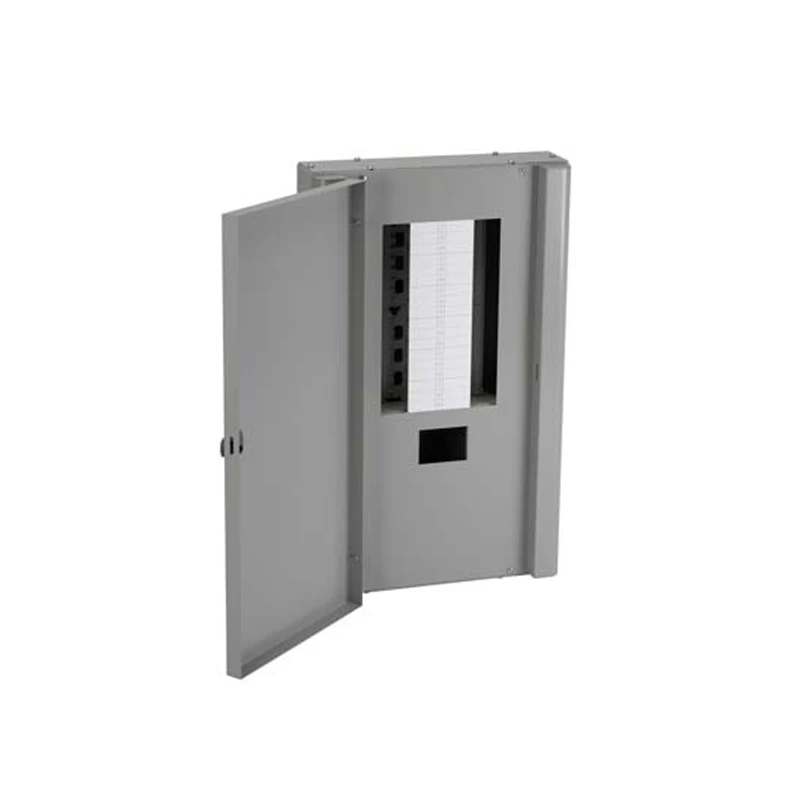

Eaton Distribution Board 24Way Triple Pole+Neutral 250A
Eaton Distribution Board 24Way Triple Pole+Neutral 250A
Eaton Distribution Board 24Way Triple Pole+Neutral 250A - Image 2
Eaton Distribution Board 24Way Triple Pole+Neutral 250A - Image 3

Eaton Distribution Board 24Way Triple Pole+Neutral 250A

£749.00 Incl. VAT

MEM B distribution board; 24-way TPN · · · IP4X Rated · · In accordance with BS EN 60439-3. · · Suitable for indoor use · · 24 ways · · Removable gland plates are provided top/bottom for ease of installation · · Removable front door to aid accessibility to devices · · Covers fit within enclosure dimensions allowing adjacent mounting · · Modern, curved edges enhance appearance of board · · Secondary cover, slides over two location screws at bottom of board for easier fastening

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EBM242 Categories: , , Brand: Product Code: 2500329718

Description

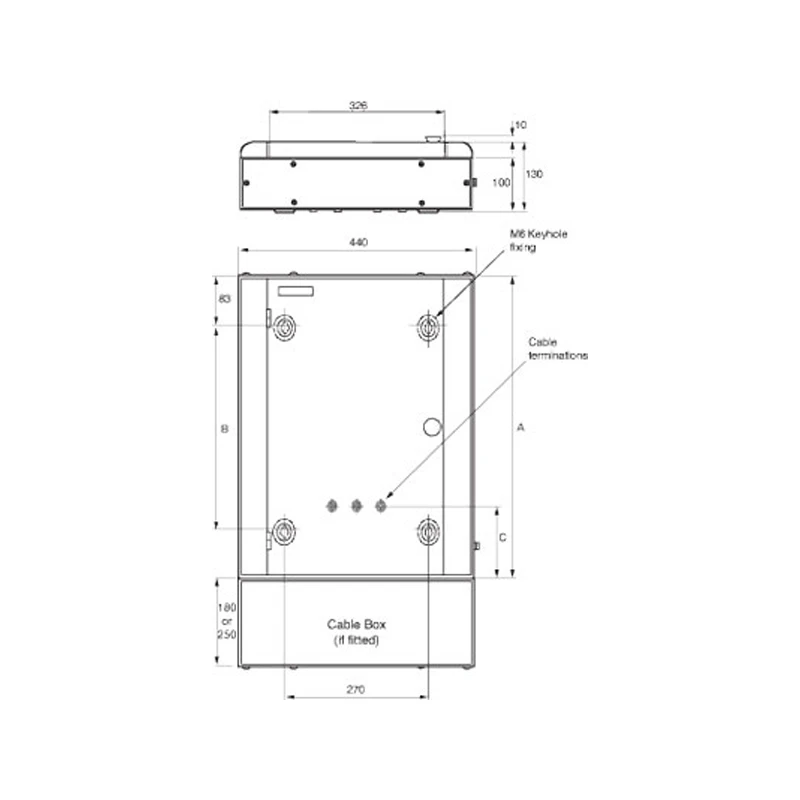

Technical Specifications  Technical Specifications Small distribution board Housing material Steel Colour Grey Type of covering Door Cover model Closed Width 440 mm Mounting method Surface mounted Height 1180 mm Number of rows 2 RAL number 7004 Depth 130 mm Recess width 440 mm Recess depth 130 mm Width in number of modular spacings 72 Internal depth 100 mm Recess height 1180 mm With mounting plate No Transparent cover/door No Earthing terminal block No Neutral terminal block No With DIN-rail No Signal passing door No With lock No Extension possible No EMC-version No · Technical Data Sheet – Click to Download
