Eaton Distribution Parts. Series Connection Time Switch 7 Days Series Connection Time Switch Autonomy 3 Tle

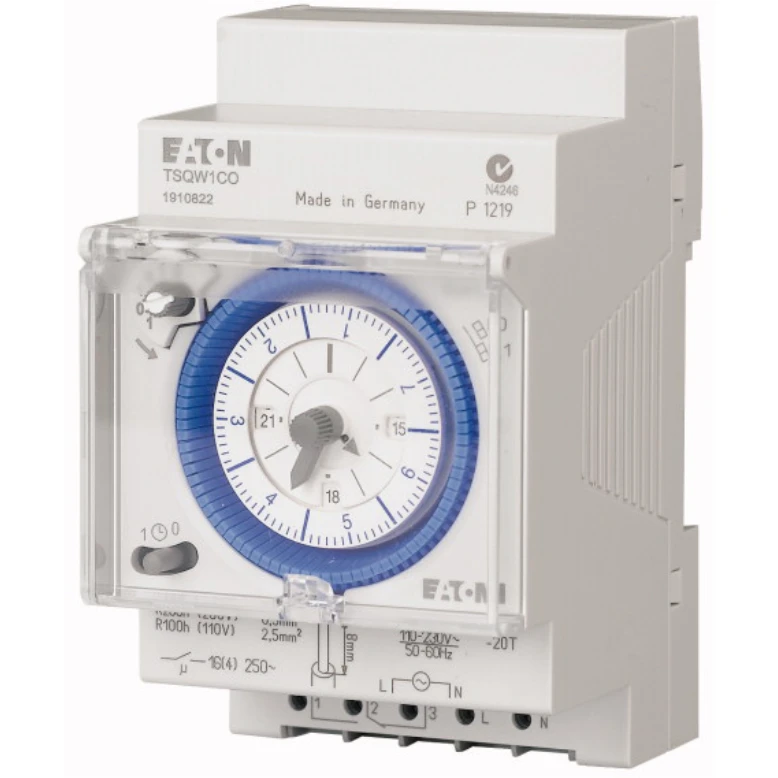

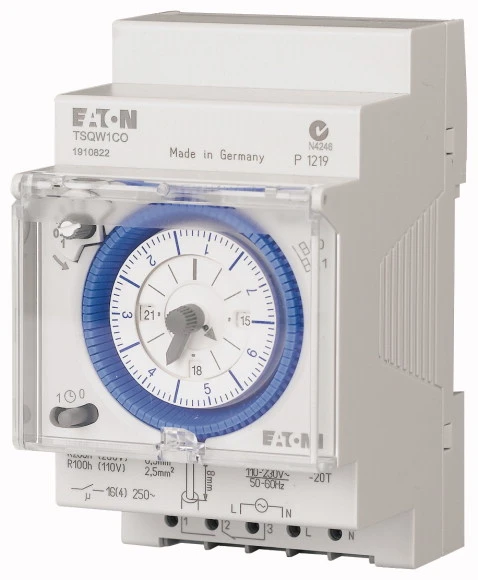

The TSQW1CO is a 16A, 230V, 7-day time switch from Eaton. It is a modular timer that can be used to control a variety of electrical loads, such as lights, motors, and pumps. The TSQW1CO features a number of advanced features. · · · 7-day programming: This can be programmed to turn on and off loads on a 7-day schedule. · · Manual override: This can be manually overridden to turn on or off loads at any time. · · Backlight: Has a backlight that makes it easy to read the display in low-light conditions. · · DIN rail mounting: Can be mounted on a DIN rail for easy installation and maintenance.
Description
Technical Specifications Technical Specifications Analogue time switch for distribution board Degree of protection (IP rating) IP20 Mounting method DIN rail Contact type Change-over contact Width 54 mm Voltage type of supply voltage AC Height 90 mm Number of channels 1 Width in number of modular spacings 3 Autonomy in years 0 Autonomy in hours 200 Shortest switching time channel 1 120 min Max. switching power LED 600 W Supply voltage 110 – 230 V Program shift divide 2 0 min Program shift divide 1 120 min Accuracy per day 1 s Shortest switching time channel 2 0 min Nominal switching current at 250 V AC 16 A Depth 65.6 mm Frequency supply voltage 45 – 60 Hz Weekly program Yes Annual program No 24 h program No 60 min. program No Mains synchronous No Quartz controlled Yes Manual operation Yes Switching preselection Yes Automatic switching summer-/winter time No Potential free switch contact Yes · Technical Data Sheet – Click to Download
