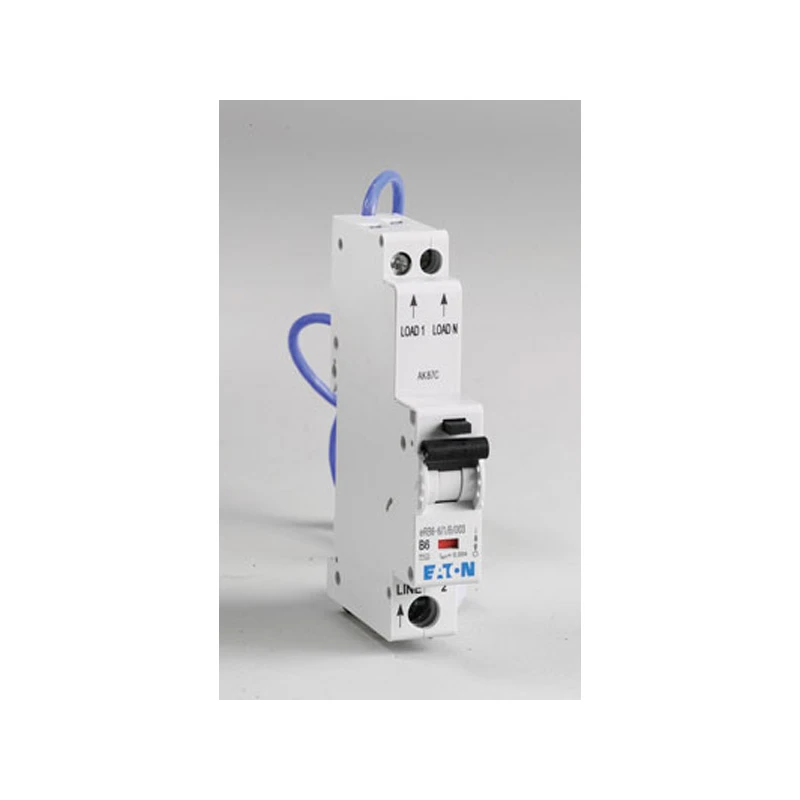

Eaton Electronic RCD/MCB combination 20 A 30 mA MCB trip characteristic: B 1p RCD trip characteristic: AC
Eaton Electronic RCD/MCB combination 20 A 30 mA MCB trip characteristic: B 1p RCD trip characteristic: AC

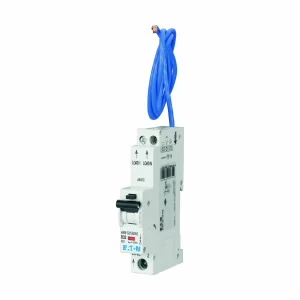

Eaton Electronic RCD/MCB combination 20 A 30 mA MCB trip characteristic: B 1p RCD trip characteristic: AC - Image 2

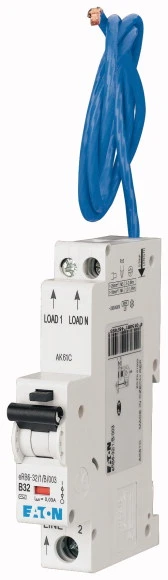

Eaton Electronic RCD/MCB combination 20 A 30 mA MCB trip characteristic: B 1p RCD trip characteristic: AC - Image 3
Eaton Electronic RCD/MCB combination 20 A 30 mA MCB trip characteristic: B 1p RCD trip characteristic: AC - Image 4

Eaton Electronic RCD/MCB combination 20 A 30 mA MCB trip characteristic: B 1p RCD trip characteristic: AC

£59.29 Incl. VAT

eRB6-20/1/B/003 · · · B release characteristic · · Accommodates cables up to 16mm² · · Provides a high degree of protection against electric shock due to direct and indirect contact · · A 30mA RCD will trip within 40mS when a fault current of 150mA is detected · · Manufactured to IEC/EN 61009 · · Color coded switching toggle for 10kA versions (designating the rated current)

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAD20BH30C Categories: , , Brand: Product Code: 2500504392

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Disconnection characteristic Undelayed Tripping characteristic (type/curve) B Frequency 50/60 Hz Degree of protection (IP rating) IP20 Voltage type AC Recess depth 69.5 mm Leakage current type AC Rated voltage 240 V Rated current 20 A Current limiting class 3 Number of protected poles 1 Rated insulation voltage Ui 500 V Rated fault current 0.03 A Power loss 6.3 W Rated short-circuit breaking capacity according to EN 61009 6 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Number of poles (total) 1 Pollution degree 2 Surge current capacity 0.25 kA Over voltage category 3 Rated short-circuit breaking capacity IEC 60947-2 0 kA Width in number of modular spacings 1 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Concurrently switching N-neutral No With interlocking device No Anti-nuisance tripping version No
