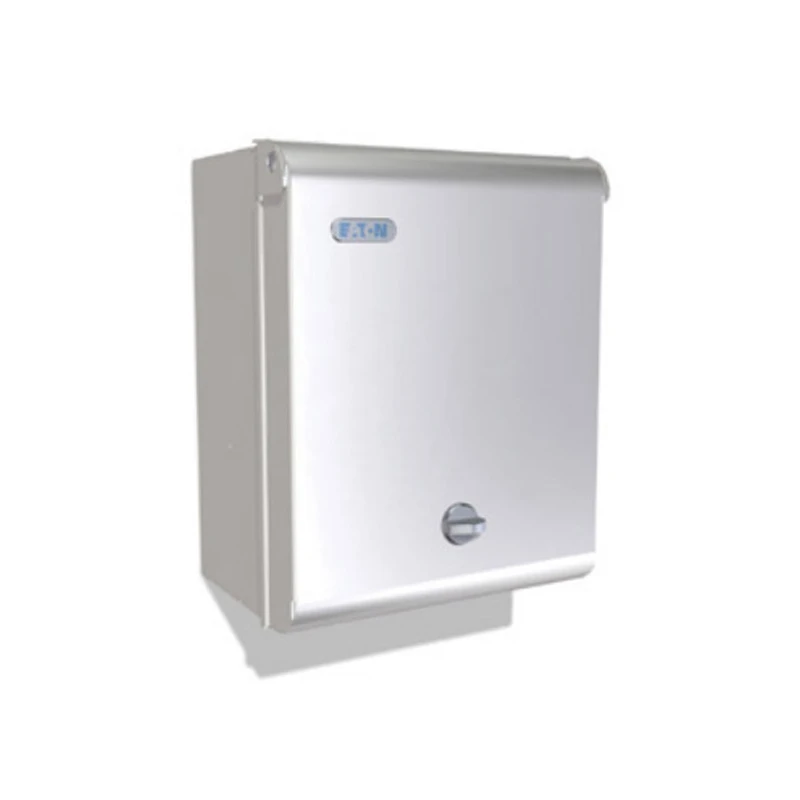

Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 100A isolator
Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 100A isolator
Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 100A isolator - Image 2
Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 100A isolator - Image 3

Eaton Isolator controlled surface mounted consumer unit incl. 2-pole 100A isolator

£100.00 Incl. VAT

Consumer Unit · · · 100A 2-pole Isolator · · Surface Mounting · · Comes with multiple large apertures in rear face of enclosure · · RAL 9010 (Pure white) · · Allows flexible cable entry from the rear

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EAS10S EATON DUPE Categories: , , Brand: Product Code: 2500706686

Description

Technical Specifications  Technical Specifications Small distribution board Housing material Steel Type of door Single Type of covering Door Cover model Closed Mounting method Surface mounted Degree of protection (IP rating) IP30 Width 319 mm Height 224 mm Depth 140 mm RAL number 9016 Number of rows 1 Internal depth 80 mm Recess height 224 mm Recess width 319 mm Recess depth 113 mm Width in number of modular spacings 12 Transparent cover/door No With DIN-rail Yes Extension possible Yes With lock No Earthing terminal block Yes Neutral terminal block Yes Signal passing door No With mounting plate No EMC-version Yes · Technical Data Sheet – Click to Download
