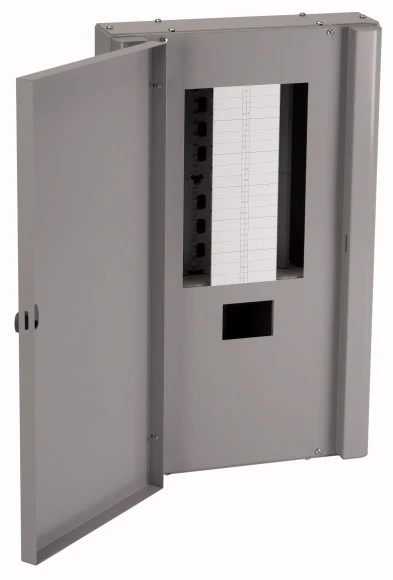

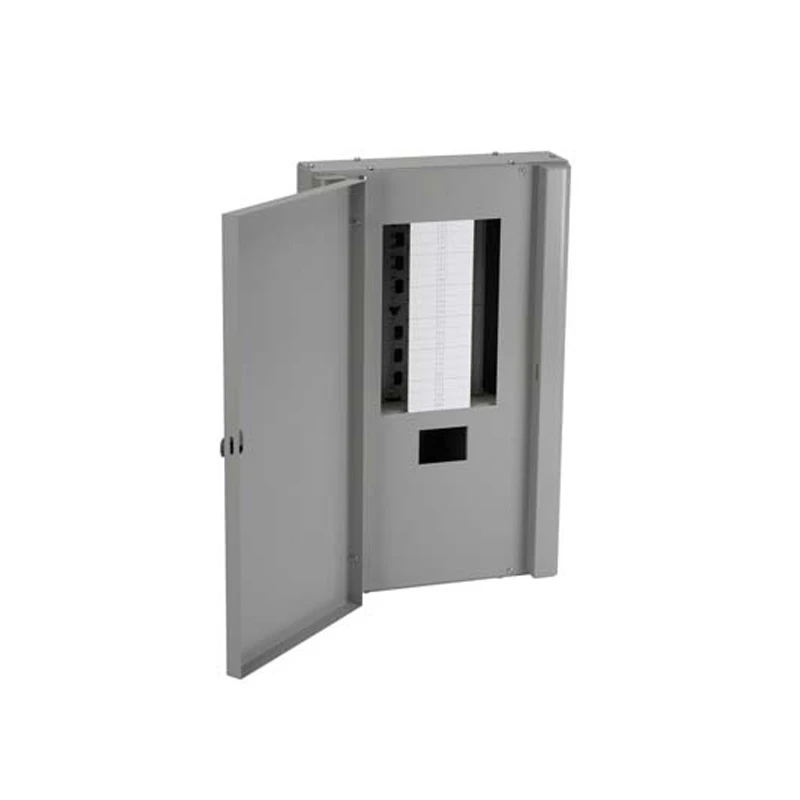

Eaton Distribution Board 6Way Triple Pole+Neutral 125A
Eaton Distribution Board 6Way Triple Pole+Neutral 125A
Eaton Distribution Board 6Way Triple Pole+Neutral 125A - Image 2
Eaton Distribution Board 6Way Triple Pole+Neutral 125A - Image 3
Eaton Distribution Board 6Way Triple Pole+Neutral 125A - Image 4

Eaton Distribution Board 6Way Triple Pole+Neutral 125A

£244.08 Incl. VAT

MEM B distribution board; 6-way TPN · · · Additional functional earthing option · · Clean earth options available · · Removable busbar assembly to assist installation · · Interlinking form for improved positional security · · Removable gland plates are provided top/bottom for ease of installation · · Removable front door to aid accessibility to devices · · Covers fit within enclosure dimensions allowing adjacent mounting · · Modern, curved edges enhance appearance of board · · Secondary cover, slides over two location screws at bottom of board for easier fastening

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EBM61 Categories: , , Brand: Product Code: 2500329737

Description

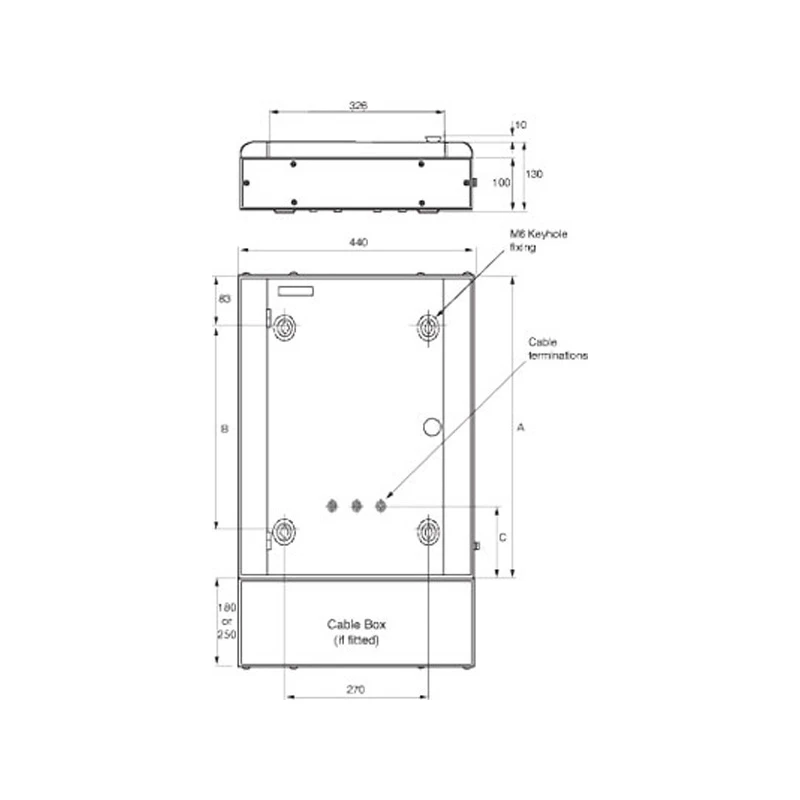

Technical Specifications  Technical Specifications Small distribution board Colour Grey Housing material Steel Type of covering Door Cover model Closed Mounting method Surface mounted RAL number 7004 Width 440 mm Depth 130 mm Height 482 mm Recess height 482 mm Number of rows 2 Internal depth 100 mm Recess width 440 mm Recess depth 130 mm Width in number of modular spacings 18 With mounting plate No With lock No Extension possible No EMC-version No Transparent cover/door No Earthing terminal block No Neutral terminal block No With DIN-rail No Signal passing door No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
