Distribution Equipment

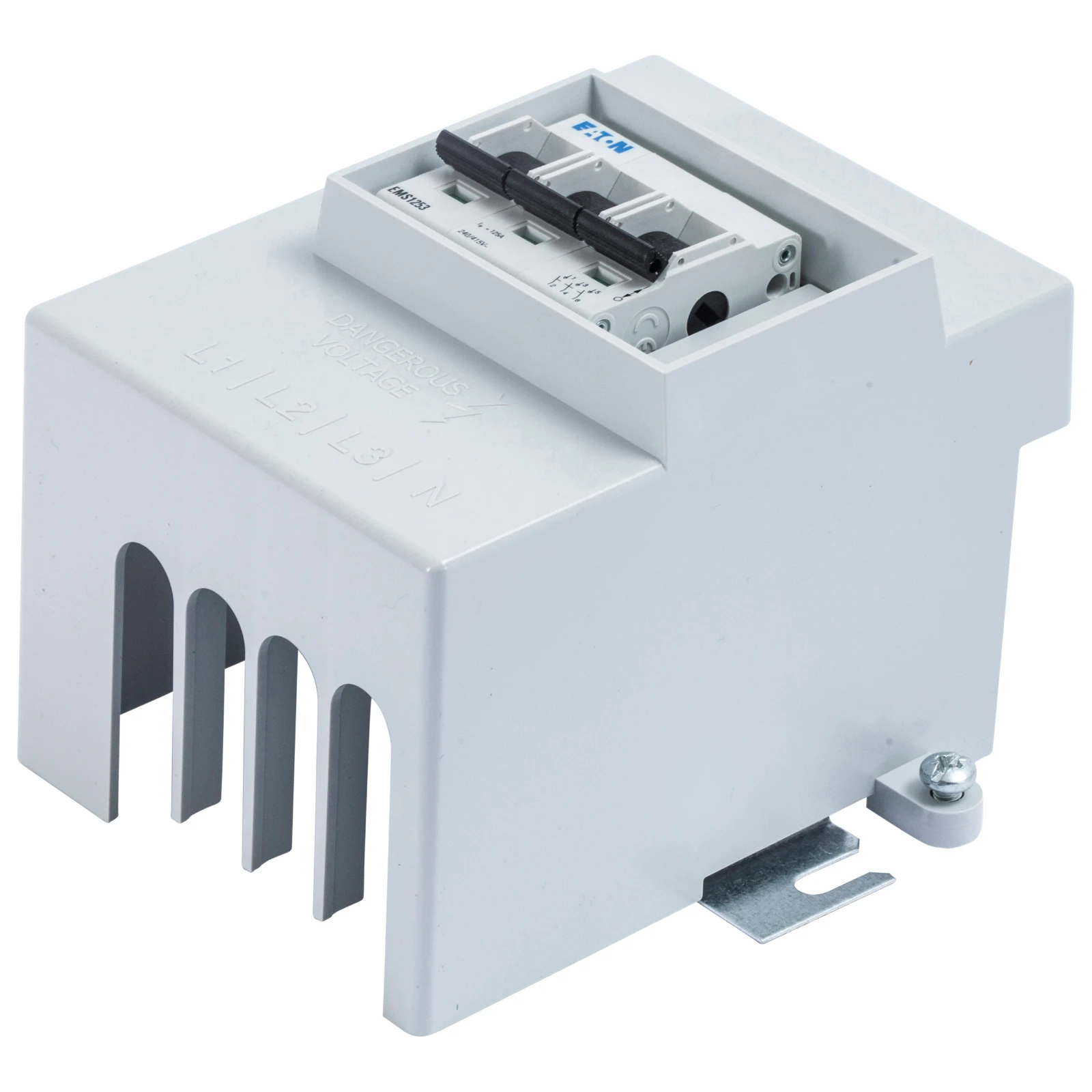

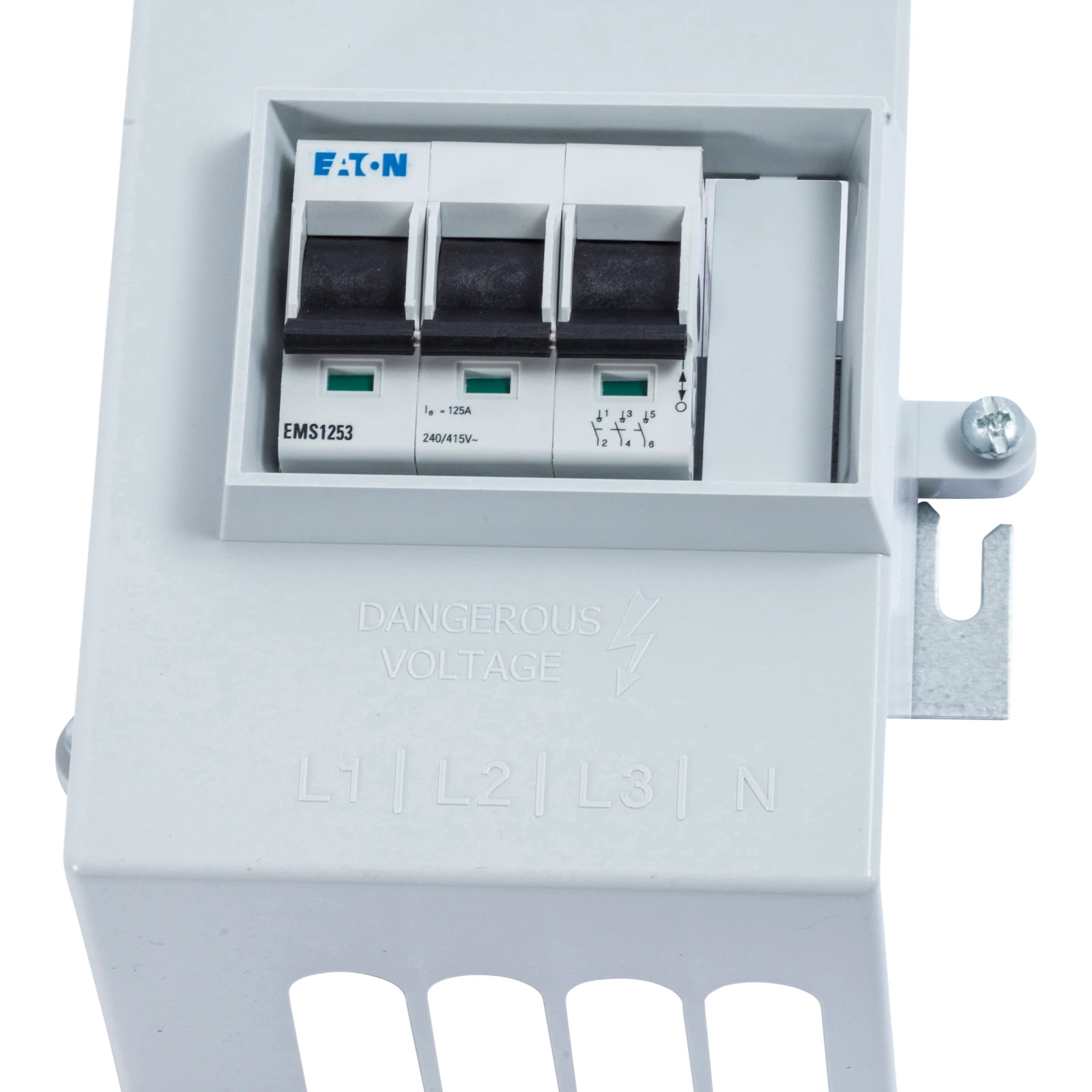

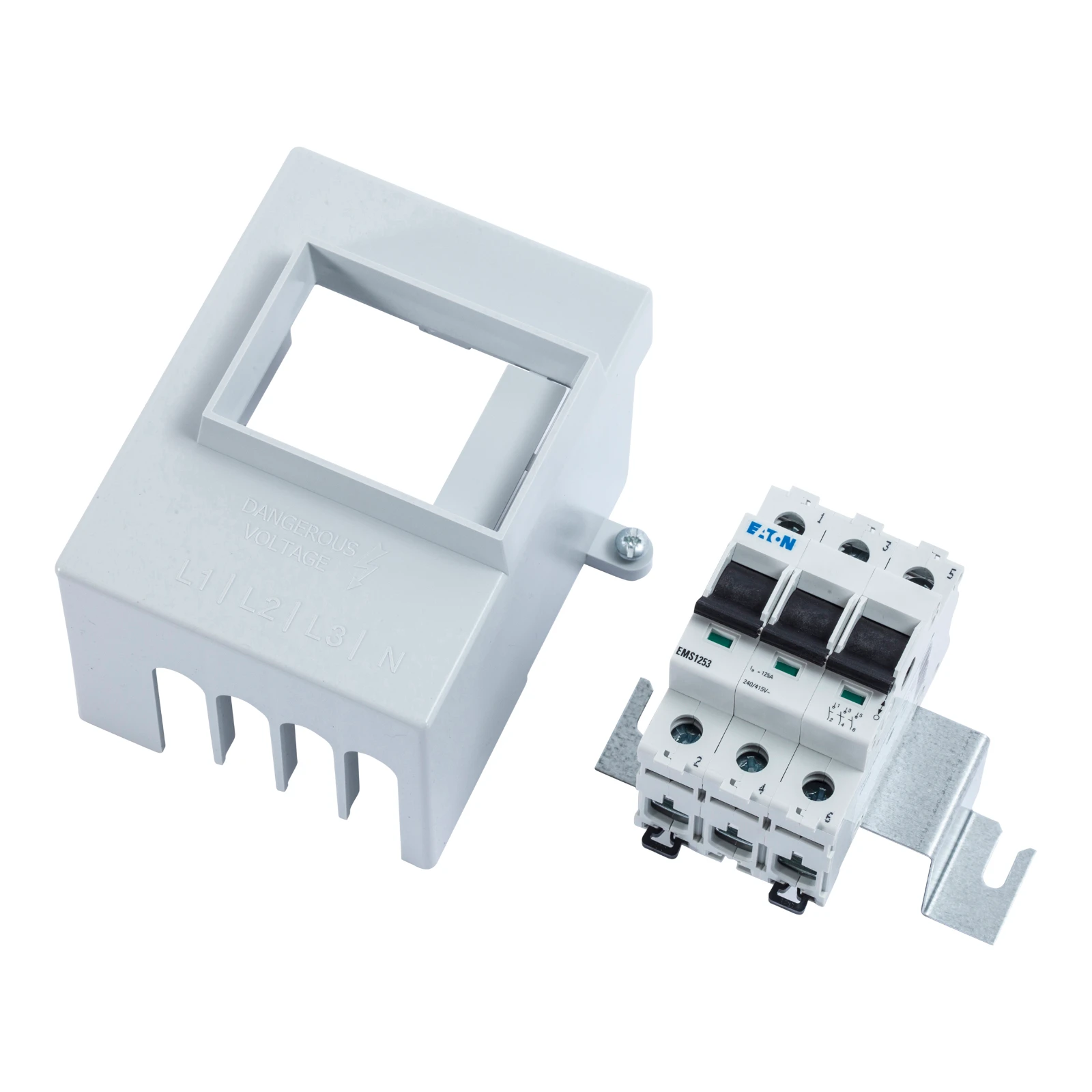

Eaton Switch Disconnector Triple Pole Type B 125A

Brand: EatonProduct code: EBMS1253Go Magpie Ref: 5060062354605

Switch disconnector for a B-Type Distribution Board. Evolved through an intimate knowledge and feedback from electrical contractors · · · Improved neutral cable clamp design · · Unique full form blanking modules for unused MCB ways · · Blanking modules have interlinking form · · Removable busbar assembly

£88.40inc VAT£73.67 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Main switch for distribution board Degree of protection (IP rating) IP40 Imprint/indication Symbol arrows Voltage type AC Min. rated voltage 240 V Number of contacts as normally open contact 3 Number of contacts as change-over contact 0 Number of contacts as normally closed contact 3 Rated switching capacity 10 kA Short-circuit breaking capacity (Icw) 2 kA Width in number of modular spacings 3 Max. lamp power 0 W Recess depth 69.5 mm Number of poles 3 Rated voltage 415 V Rated current 125 A Forced segregation (according to DIN VDE 0113) No With indicator lamp No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
